Ford 9 Inch Pinion-Mounted Emergency Brake Kit, 1310 Series Yoke
Ford 9 Inch
- Fits Ford 9" axles with Spicer 1310 series U-joints, with 1-1/16" caps x 3-7/32" width, part # 80292417
- U-joint girdle design provides more surface area for the bearing cap for increased strength, manufactured from 7075-T6 aluminum with anodized finish
- Lightweight aluminum single piston cam-actuated caliper is black anodized for corrosion resistance
- Steel rotor bolts behind the driveshaft yoke, Rotor Thickness: 3/16", Diameter: 8-3/4"
- Made in the USA
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.

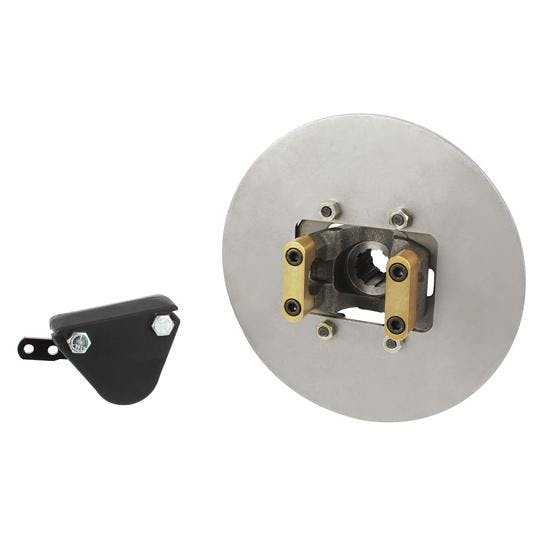

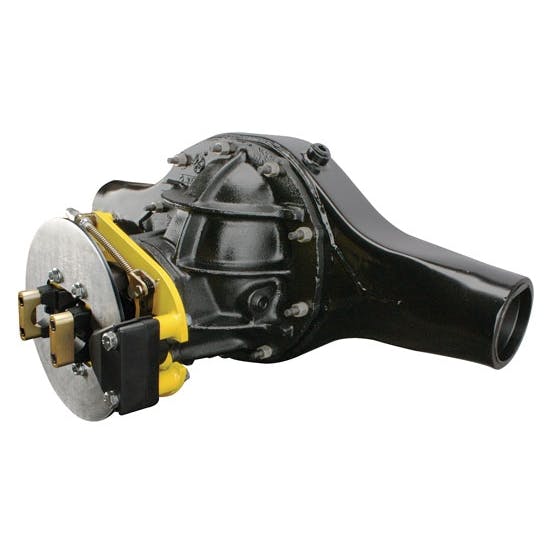

Speedway now offers the stand alone emergency brake system you asked for. Kit includes a 3/16" steel rotor, special pinion adapter, aluminum U-joint girdle (for 1310 series U-joints), Wilwood mechanical spot caliper, and all hardware.
Suggested cable kit to be used, as referenced in the instructions, is shown below and is # 491-80TP. Cable kit will include and utilize the special cable mounting stud as required for installation. The cable mounting stud included with the cable kit and as referenced in the instructions is not included with or part of this pionion mount rotor and caliper brake kit and it is not available as a separate item.
- Lightweight aluminum cam-actuated caliper (black anodized)
- Steel rotor bolts behind the driveshaft yoke
- Use with Spicer 1310 series u-joint yoke
- U-joint girdle design provides more surface area for the bearing cap for increased strength
- Girdle manufactured from 7075-T6 aluminum with anodized finish
- Made in the USA
- Please note this will NOT fit all 9" Ford applications and is specific to the application requirements noted here.
- Fits Ford 9" axles with Spicer 1310 series U-joints, with 1-1/16" caps x 3-7/32" width. We offer this yoke, if needed, under 80292417.
- Use the 2" cap screws in the hardware kit 7153250-2 to assemble U-joint girdle 7158580 with rotor adapter 715BP15121.
- Rotor Thickness: 3/16"
- Rotor Diameter: 8-3/4"
- Pad Area (in2): 0.9"
- Pad Volume (in3): 0.31"
- Caliper Mount Center: 2.95"
- Caliper Weight: 1.2 lbs.
- Caliper Dimension (Link)
- Pad Dimensions (Link)
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
Rotor Adapter - Chevy/Jag/EtcPart # 715BP15121Qty x 1
Emergency Brake Replacement RotorPart # 715BP15112Qty x 1
U-Joint GirdlePart # 7158580Qty x 1
Wilwood 120-1360 Mechanical Spot Caliper, 1.62 Inch Bore / .25 DiscPart # 8351201360Qty x 1
Bracket Kit for 715-3250Part # 7153255Qty x 1
Hardware for 715-3250Part # 7153250-2Qty x 1
