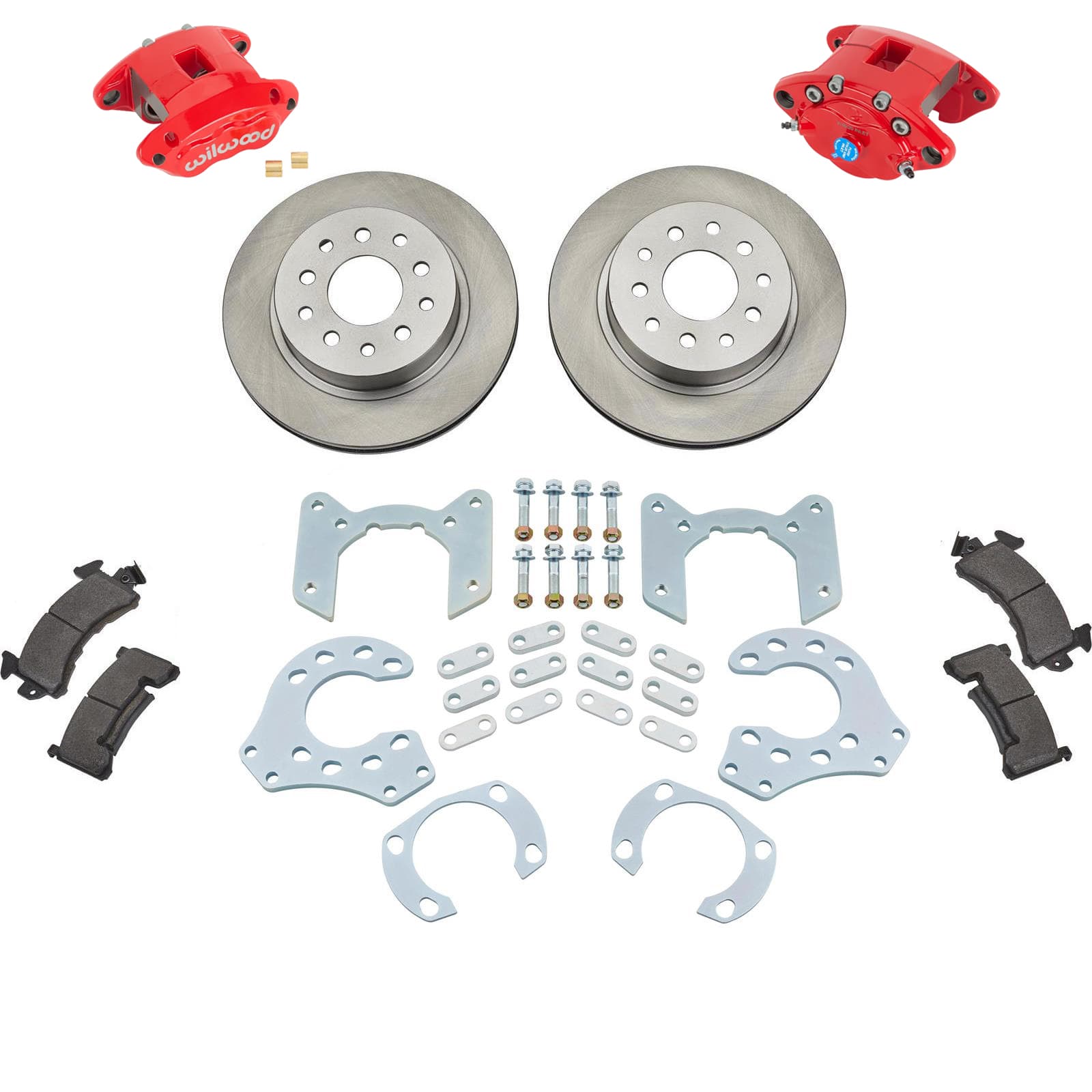

Ford 9" Bolt-On Disc Brake Kit W/ Wilwood Calipers

Disc Brake Stopping Power at a Great Value

This economical disc brake kit for Ford 9 inch and 8 Inch axles is simple to install and provides big stopping power, at a price nearly the same as replacing original drum brakes. That Ford rear end handles the power to make it go, but these binders clamp down when you say whoa! Today's average family sedan can stop from 60 MPH in 120 feet, at nearly 1G of deceleration. You need the same stopping power. Your passengers, you and your car deserve the confidence of disc brakes and our kit delivers that confidence with exceptional value.

Superior to Drum Brakes

Aftermarket disc brakes are superior to original drums in many ways: more braking force, less brake fade, and easier service. Stopping power starts with our newly manufactured Wilwood D154 dual piston calipers, commonly found on 1978-88 GM G-Body and A-Body cars. Large 11-1/4" diameter, 1" thick vented rotors provide more stopping leverage than common 9" or 10" drum brakes. Brake pads are easier to change than drum shoes, and our brake kit includes a street-friendly organic compound for long rotor/pad life. Replacement pads are common sized, available from your local auto parts store. Looking for more aggressive stopping power? We carry race-grade D154 disc brake pads that drop in just as easily.

Fits Ford 9 Inch and 8 Inch Housings

This disc brake kit fits Ford 8 inch axles, as well as passenger car Ford 9 inch axle housings with "big bearing" ends (3.150" O.D. bearing, found on passenger cars from 1974-79). Included bracketry will adapt this kit to both "new style" and "old style" Ford 9 inch housing flanges with the 3/8" bearing retainer bolt holes. Bracket spacers are also included, allowing this kit to work with axle flange offsets of 2-3/8" or 2-1/2" common on Ford 9 inch passenger car rear ends. Axle flange offset is measured from the axle housing flange face (with bearing retainer removed) to the axle shaft flange face (side where the brake rotor/drum rides, including the thickness of the axle flange).

Hardware and Instructions Included

Kit includes a detailed, step-by-step instruction sheet with images. The floating calipers include new Grade 5 slider bolts, with all remaining hardware of Grade 8 quality. Cast iron rotors feature a dual bolt pattern in 5x4.5" (Ford/Mopar/AMC) or 5x4.75" (Chevy/GM) to match your desired wheel hub pattern. Plus, this assembly will clear most 15" diameter wheels designed with disc brakes in mind. Note that there are no provisions for a parking brake, making this the perfect disc brake conversion kit for the budget-focused builder who prefers a basic upgrade kit.

• Disc brake stopping power at nearly the same cost as rebuilding/replacing drum brakes
• 11-1/4" diameter, 1" thick vented cast iron rotors dissipate heat faster than drum brakes
• Serviceable design ensures good drivability and piece-of-mind when on the road
• Street-friendly GM D154 style pads, replacements available nearly everywhere
• Wilwood D154 dual-piston calipers with 7/16"-20 banjo-style inlets
• Fits Ford "big bearing" 9 inch housings from passenger cars and 8 inch rear ends
• Use with Ford 9 inch rear ends with 2-3/8" or 2-1/2" axle flange-to-housing offsets
• Dual wheel bolt patterns covering all GM/Ford/Mopar (5x4.5" for 1/2" studs, 5x4.75" for 7/16" studs)
• Use with 15" or larger disc brake-style wheels
• Easy bolt-on installation w/ included instruction sheet
• Includes heavy steel mounting brackets, Grade 8 hardware and nylock nuts (everything you need)
• Rotor register/center hole is 2.80" to fit Currie axles

Installation note:

The inside diameter of this rotor will accept an axle flange that has a diameter of 6-1/4" or smaller. If your axle flange exceeds 6-1/4" in diameter, you will need machine your axle flange to decrease your axle flange diameter to fit this rotor as necessary.

When utilizing an aftermarket axle with disc brake conversion kits, it may be necessary to reduce the diameter of the axle flange to a diameter necessary to adequately fit inside the required Clearance I.D. that the brake hat/brake rotor will require. (see above diagram for illustration)

This rotor has been designed for use with aftermarket axles such as Currie that have a 2.795" pilot. If you are using stock axles, or your axles have a pilot that is smaller than 2.795", we offer disc brake kit Part # 91031902 or replacement rotor Part # 91031039 with a 2.790" Center Hole Diameter that is better suited to these applications.

This kit is an aftermarket solution. It is not intended to be a direct installation or OEM replacement. Due to changes in production in certain years, your application may require modifications beyond the instructions for this kit to install properly. If your axle shaft flange or axle shaft register exceeds the diameter that clears the rotor dimensions, you will need to machine the axle flange and/or the rotor to clear the diameter required.
