Fel-Pro Small Block Chevy Steel Ring Head and Intake Gaskets

Ask a Question

Compressed volume measures a total of 9.1 cc
The nominal compression thickness measures .041"
Specially engineered to offer superior heat dissipation

$111.99

In Stock

$116.97

Save $4.98

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

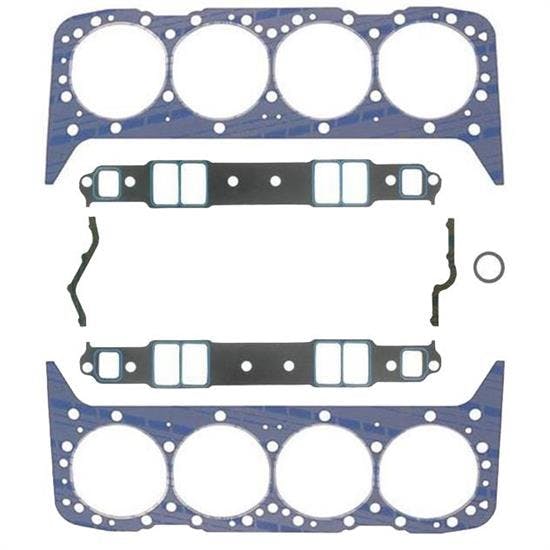

Product Summary

Chevy Small Block V8, 4.166" Bore Size

Compressed volume measures a total of 9.1 cc
The nominal compression thickness measures .041"
Specially engineered to offer superior heat dissipation
Designed to specifically fit the Small Block Chevy V8 engine
Intake gasket dimensions measure 1.34" x 2.21"

Comes as a Kit

View Kit Components

See more details

Key Specs

Brand	Fel-Pro
Bore Size	4.166"

See more specs

Need To Know

Free Shipping on Orders Over $149

Need help?

Quick and Easy Returns

Details

Head Gaskets

These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.

Gaskets are sold each
Pre-flattened steel wire
Nominal compression thickness: .041"
Compressed volume: 9.1 cc
4.166" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer
When using aluminum heads, we recommend gaskets with soft copper wire rings (such as 344-1010). This ensures that the aluminum head is not "scarred" by the combustion seal. Shim style 344-1094 will also work well with aluminum heads.
Sold in a pair

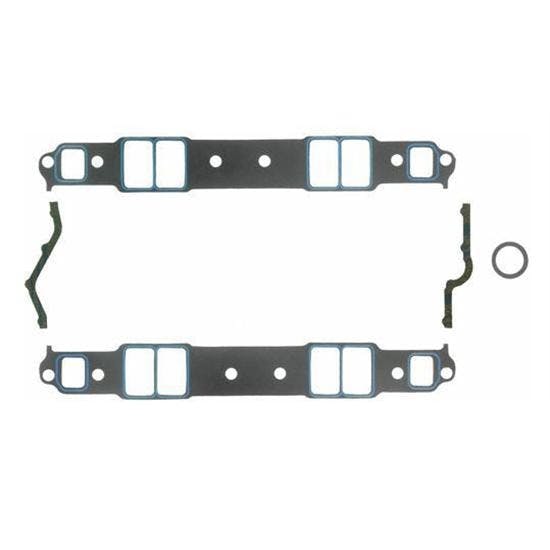

Intake Gaskets

Fel-Pro Blue Stripe premium quality intake manifold gaskets for Small Block Chevy (SBC).

Medium Race
1.34" x 2.21"

Charts

Head Gasket Application (JPG)

Speedy Tip for Proper Head Gasket Seal (JPG)

Guides & Documents

Cylinder Head Gaskets Guide/Document (3441003)

Specifications

KEY SPECS
Brand	Fel-Pro
Bore Size	4.166"

GENERAL
Speedway Motors Catalog Part #	910-0574
Compressed Thickness	.041"
Material Type	Multi-Layered Steel
Sold in Quantity	Kit
Notes	Gasket can be used on 400 race engines, up to 4.155" maximum bore with minimal chamfer. This gasket also works with 350 and smaller small block Chevys. (Per Fel-Pro)
