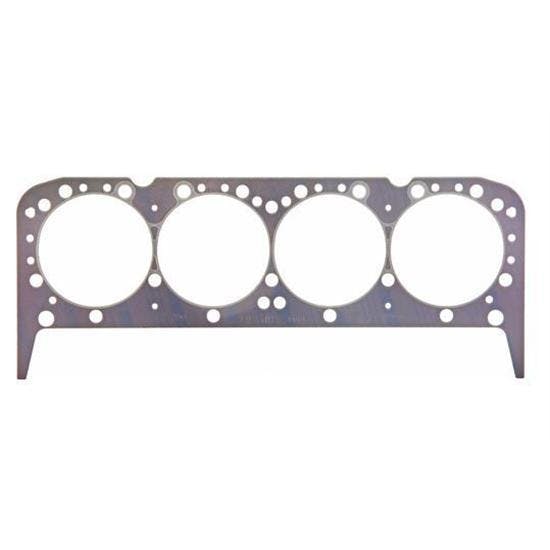

Fel-Pro P1004 S/B Chevy 400 Head Gasket, Steel Ring, 4.190 Inch Bore
Fel-Pro P1004 S/B Chevy 400 Head Gasket, Steel Ring, 4.190 Inch Bore

Fel-Pro P1004 S/B Chevy 400 Head Gasket, Steel Ring, 4.190 Inch Bore

400 Chevy Small Block V8, 4.190" Gasket Bore, 0.041" Overall Thickness, Steel

0 Reviews | 0 Answered Questions
On Backorder
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Fel-Pro P1004 S/B Chevy 400 Head Gasket, Steel Ring, 4.190 Inch Bore
Fel-Pro P1004 S/B Chevy 400 Head Gasket, Steel Ring, 4.190 Inch Bore
Fel-Pro P1004 S/B Chevy 400 Head Gasket, Steel Ring, 4.190 Inch Bore
X
Fel-Pro P1004 S/B Chevy 400 Head Gasket, Steel Ring, 4.190 Inch Bore
Zoomed In Image
Part # 3441004
$47.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Gasket Bore:
4.190"
Overall Thickness:
0.041"
Material Type:
Steel
Sold in Quantity:
Each
Notes:
This gasket does not have steam holes, if needed look to 91010202.

Info

These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.

  • Gaskets are sold each
  • Pre-flattened steel wire
  • Nominal compression thickness: .041"
  • Compressed volume: 9.2 cc
  • 4.19" bore gaskets can be used on 400 small block race engines with up to 4.155" max bore with minimal chamfer, without steam holes
  • When using aluminum heads, we recommend gaskets with soft copper wire rings (such as 344-1010). This ensures that the aluminum head is not "scarred" by the combustion seal. Shim style 344-1094 will also work well with aluminum heads.

Head Gasket Application (JPEG)

Speedy Tip for Proper Head Gasket Seal (GIF)

Item Details

4.190" bore, .041" thick, 9.2 cc volume
