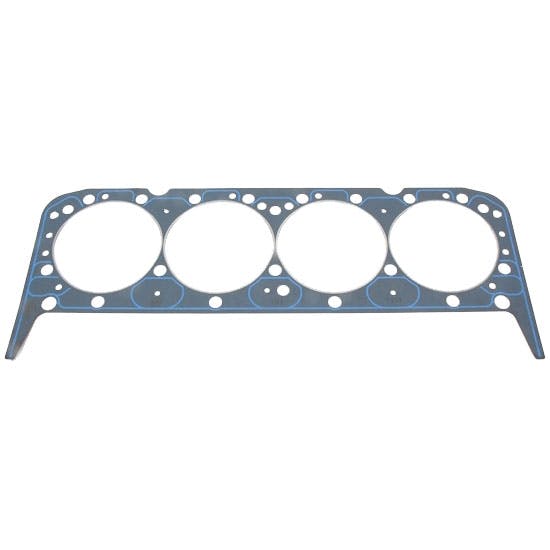

Fel-Pro 1043 S/B Chevy Head Gasket, 4.080 In. Bore, .039 Thick
Chevy Small Block V8, 4.080" Gasket Bore, 0.039" Compressed Thickness, Steel Core Laminate
- A steel wire rings give high combustion seal strength
- This head gasket is specially designed for the small block Chevy V8
- Engineered to provide dependable sealing under strenuous racing conditions
- It raises combustion sealing force to approximately three times that of standard head gaskets
- The wire ring design in the stainless steel armor surrounding each cylinder gives a highly concentrated seal around the combustion chamber
This Small Block Chevy head gasket from Fel-Pro is able to provide dependable sealing under strenuous racing conditions. It accommodates high cylinder pressures and cylinder head movement associated with performance engines.
- Wire ring design in the stainless steel armor surrounding each cylinder gives a highly concentrated seal around the combustion chamber
- Raises combustion sealing force to approximately three times that of standard head gaskets
- Steel wire rings give high combustion seal strength
- Not intended for use in emission controlled vehicles
- Do not use on aluminum blocks with liners
- Engine Family: V8 Small Block
- Engine Displacement: 262, 265, 267, 283, 302, 305, 307, 327, 350, 400 Engines and Race Engines
- Volume: 8.9
- Thickness: .039"
- Gasket Bore: 4.080"
- Combustion Seal: Pre-flattened steel wire
- Application Note: Small chambered aluminum race heads and some Vortec engines - Will not fit conventional OEM-type combustion chambers
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
