#80262348

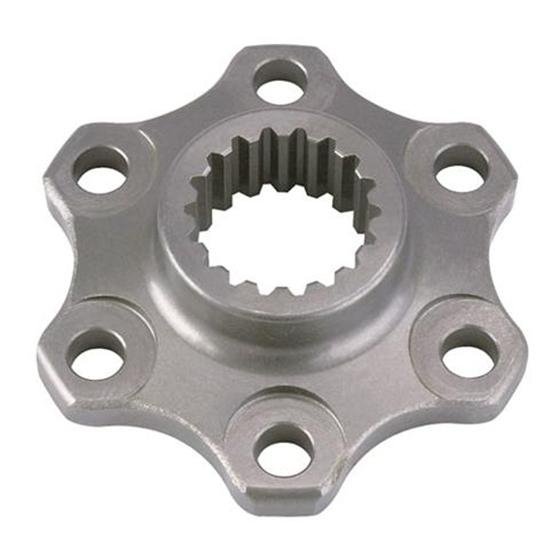

Falcon Transmission 62348-18 Steel Drive Flange w/ 55-85 Chevy Crank
4 Reviews
|
Ask a Question
- Designed to fit 1955-1985 Chevy cranks
- Made from steel and is 1.18" thick
- For 2 piece rear main seal block applications
See More
$95.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Falcon, 4.468" Overall Diameter, 18 Spline Count, Steel
- Designed to fit 1955-1985 Chevy cranks
- Made from steel and is 1.18" thick
- For 2 piece rear main seal block applications
- Drive flange features a 18 spline count.1.41 ID-1.61 TOOTH DEPTH
- BACK RECESS 2.481 DIA X .258 DEEP
See more details
Key Specs
| MFG. Part # | 62348-18 |
| Brand | Falcon Transmission |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyFalcon Transmission 62348-18 Details
Falcon Transmission 62348-18 Details
Replacement parts for Falcon racing transmission.
Falcon Transmission 62348-18 Specifications
Falcon Transmission 62348-18 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 62348-18 |
| Brand | Falcon Transmission |
| GENERAL | |
| Speedway Motors Catalog Part # | 802-62348 |
| Overall Diameter | 4.468" |
| Overall Thickness | 1.18" |
| Spline Count | 18 |
| Spline OD | 1.616" |
| Weight | 1.35 lbs. |
| Material Type | Steel |
| Sold in Quantity | Each |
| Notes | For 2 piece rear main seal blocks. (6) SCALLOPS .467 DIA (6) 3.571 BOLT CIRCLE 1" BOSSES .372 THICK |
