#9133902
Ford Front Axle Steering & Brake Kit, 48 Inch Axle
- Fits 48" kingpin Center to Center Ford Axles with .813" kingpin diameter
- Your Choice of Cross Steering (Vega Style) or Traditional Steering (Corvair) With Flat Plate Steering Arms and 5/8" Standard Rod Ends (Heims)
- Available with either 5x4.5" (Ford) or 5x4.75" (Chevy) wheel bolt pattern
Starting from
$748.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Straight Axle Front Suspension Type
- Fits 48" kingpin Center to Center Ford Axles with .813" kingpin diameter
- Your Choice of Cross Steering (Vega Style) or Traditional Steering (Corvair) With Flat Plate Steering Arms and 5/8" Standard Rod Ends (Heims)
- Available with either 5x4.5" (Ford) or 5x4.75" (Chevy) wheel bolt pattern
- One Piece Forged 4140 Steel Spindles Modeled after 37-41 Round Back Design with Standard kingpins Fit to Spindle
- 11" Brake Kit Featuring 78-88 GM Metric Brake Calipers with 2-1/2" Piston for Increased Stopping Performance
Key Specs
| MFG. Part # | Select Caliper Type, Bolt Pattern, Finish and Steering |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Speedways exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, spindles, dust caps, spindle nuts, Rubber Brake Lines, AN3 caliper fittings, kingpins, flat steering arms, tie rod assembly and hardware.
- For 48" kingpin-to-kingpin axles
- Traditional steering arm for left front wheel NOT included with Traditional steering kit
- Available with 5x4.5" or 5x4.75" hubs
Item Details
11" rotorsApplication

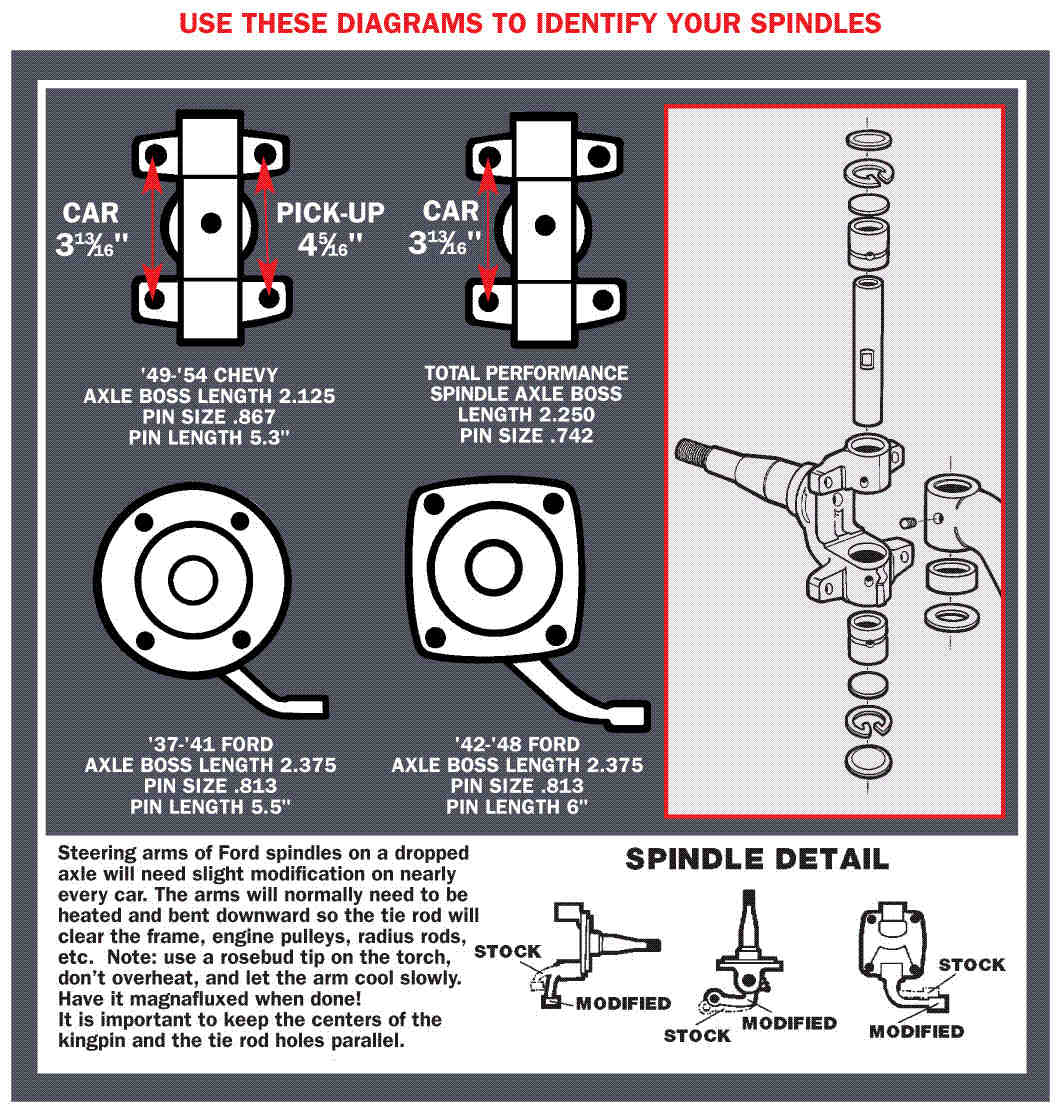

- Ford 1928-48 spindles are generally your best choice when using an original Ford axle or spring behind application using 37-48 Ford spindles.
- Chevy 1949-54 spindles are specifically designed for use on tube axles. A shorter, thicker axle stub makes this a slightly stronger spindle ideal for use with heavier street rods.
Ford kit features:
- 1928-48 Ford Spindles
- One piece forged 4140 steel
- Modeled after the 1937-41 round-back design
- Standard king pins fit to spindles
- Speedway 11" Brake Kit
- 11" vented iron rotor, 1" thick
- 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
- Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
- Hub flange (hat) diameter - 6-1/4"
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16" banjo bolt to AN-3 line adapter kit
- Traditional or Cross Steering Kit
- Flat plate steering arms
- 5/8" tie rod steering link
- 5/8" standard heim joint rod ends
- Seals-it 5/8" rod end seals
Charts
Specs
Ford kit features:
- 1928-48 Ford Spindles
- One piece forged 4140 steel
- Modeled after the 1937-41 round-back design
- Standard king pins fit to spindles
- Speedway 11" Brake Kit
- 11" vented iron rotor, 1" thick
- 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
- Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
- Hub flange (hat) diameter - 6-1/4"
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16" banjo bolt to AN-3 line adapter kit
- Traditional or Cross Steering Kit
- Flat plate steering arms
- 5/8" tie rod steering link
- 5/8" standard heim joint rod ends
- Seals-it 5/8" rod end seals
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Caliper Type, Bolt Pattern, Finish and Steering to see |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
| Spring Type | Not Included |
| Finish | Select Caliper Type, Bolt Pattern, Finish and Steering to see |
| Bolt Pattern | Select Caliper Type, Bolt Pattern, Finish and Steering to see |
| Rotor Diameter | 11 Inch |
| Spindle Style | Ford Custom |
| Dropped Spindles | No |
| Dropped Axle | No |
| Dropped Control Arms | No |
| Spindles Included | Yes |
| Brakes Included | Yes |
| Steering Included | Yes |
| Caliper Pistons | Single |
| Caliper Finish | Natural |
| Welding Required | No |
Ratings & Reviews
4.8
49 Reviews
Customers appreciate how comprehensive and high-quality the kit is, with all necessary parts included and fitting perfectly, making it a reliable pick for both experienced customers and beginners. They commend the product's adaptability, being suitable for various models like a 6" drop axel or a 1927 whippet. Its material quality is mentioned as exceptional, contributing to solid performance and professional finishes. The kit is lauded as an "awesome upgrade" compared to stock drum brakes, despite some customers suggesting better assembly instructions could improve the product. Longer-lasting and evidence of efficient engineering, the product is regularly recommended and often bought repeatedly for different projects. It sets a high benchmark for competitors, mainly due to the supportive tech staff and ease of set-up.
Ratings & Reviews
4.8
49 Reviews
Customers appreciate how comprehensive and high-quality the kit is, with all necessary parts included and fitting perfectly, making it a reliable pick for both experienced customers and beginners. They commend the product's adaptability, being suitable for various models like a 6" drop axel or a 1927 whippet. Its material quality is mentioned as exceptional, contributing to solid performance and professional finishes. The kit is lauded as an "awesome upgrade" compared to stock drum brakes, despite some customers suggesting better assembly instructions could improve the product. Longer-lasting and evidence of efficient engineering, the product is regularly recommended and often bought repeatedly for different projects. It sets a high benchmark for competitors, mainly due to the supportive tech staff and ease of set-up.
4.8
49 reviews
5
40
4
8
3
1
2
0
1
0
Most Liked Positive Review
5.0
Very nice, but...
Great kit, but the lack of instructions cost me a lot of time
Most Liked Negative Review
3.0
Disc brake kit
Really wish the spindles and disc brake brackets were chrome plated as well. They will really bring down the overall look, even though the quality is great. That is my only complaint about the kit thus far.
Filter by Ratings
Would buy again
5.0
7 months ago
Kb
Wilmington Ohio
Verified
Everything looks quality built
Would Recommend
Yes
5.0
a year ago
Paint
Payson
Verified
Service and parts very good
Would Recommend
Yes
4.0
a year ago
bryan
Ky
Verified
These parts were well machined, perfect fit, Every piece included.
Would Recommend
Front axle kit
5.0
2 years ago
Pak rat 205
Birmingham, Al
Verified
All my parts arrived in 3 days! Everything looks good. Can't wait to get it all put together.
Would Recommend
I will buy this again.
5.0
4 years ago
Dicky
Eldon MO
Verified
Everything worked great
Would Recommend
Great product
5.0
5 years ago
55' Willy
Conway sc
Verified
Great product
Would Recommend
Grate product
5.0
5 years ago
Buba
A2 mi
Verified
Work / fit the 6" drop axel
Great fit
5.0
5 years ago
Buba
A2 Mi
Verified
Perfect fit for my 30 low boy with a 59 vette rearend
I would definitely purchase this product again!
5.0
5 years ago
Don
Canton, GA 30115
Verified
I'm rebuilding my dad's hot rod after being in storage for 14 years. Much needed to be done, but with tech support from Speedway Motors, their parts and a few friends, all is going extremely well.
Would Recommend
Great product, awesome quality.
5.0
6 years ago
Wild Bill
Georgetown Ohio
Verified
Great kit, used on original axle, very complete.
Would Recommend
Showing 10 of 49 reviews
Questions & Answers
Questions & Answers
36 Questions • 16 Answers

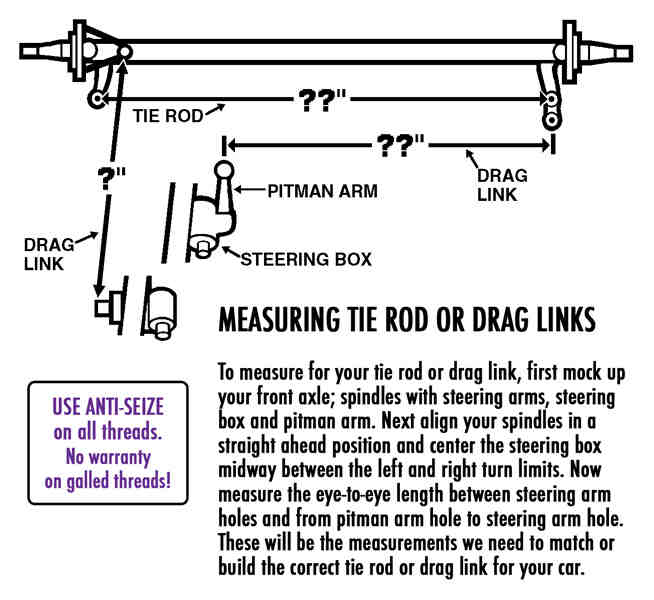

Hello, What is the length of the tie rod?
by Tab
• 7 years ago
1 answer
View Answer
Does this kit come with a parts list showing what each piece is and/or instructions? How do you confirm all pieces are accounted for when we receive the kit?
by Dust
• 7 years ago
1 answer
View Answer
Will this kit work on a 48 ford f1
by Zack Guess
• 7 years ago
1 answer
View Answer
Will the brake parts in this kit work as a Manual (non-power brakes) set up?
by Pat
• 8 years ago
5 answers
View Answers
I bought this steering and brake kit. I have a whole pile of high quality parts, but I don't have a clue how it all goes together. Do you have instructions? A how to video?
by Chad
• 8 years ago
1 answer
View Answer
what type of master cylinder do you recommend for this kit Not using booster and it is going to be mounted on the floor
by Chicho
• 8 years ago
2 answers
View Answers
will this kit fit a 1926-27 ford front axle? The king pin -to- spindle doesnt look right..... im trying to figure out how to put front disc brakes on a 1926-1927 solid front axle. Any suggestions???
by brad
• 8 years ago
1 answer
View Answer
Are you able to put together a kit like this in the same price range with a 5 on 5 bolt pattern? I can't afford the cost of the wilwood parts so I'm not interested in them, but I've used this kit from you several times and have always been happy with it. The customer wants to run 5 on 5 wheels this time though and I'm unable to find a kit with that pattern so far.
by Daryl
• 8 years ago
2 answers
View Answers
I ordered this kit a good while back and id like to upgrade the rubber lines to steel braid. what would be a exact replacement?
by cj
• 8 years ago
1 answer
View Answer
What additional parts for drag link and tie rod do I need to use with your 91033204 Vega steering box on a 28-31 Model A?
by Brian
• 8 years ago
1 answer
View Answer
10 of 36 questions shown
