Product Summary

Universal Fit, RH Male Thread Type, Stainless Steel

    Key Specs

    MFG. Part #SJM8T
    BrandFK Rod Ends
    Material TypeStainless Steel

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

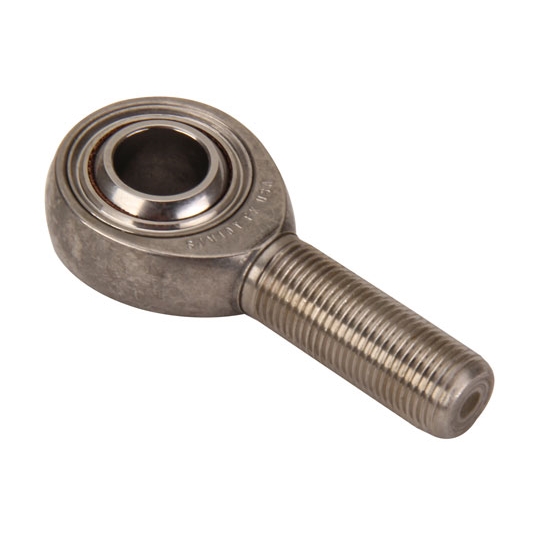

    FK SJM-T/SJF-T/SRSM-T Series rod ends feature 3-piece precision stainless steel construction. These self-lubricating, high-strength rod ends feature bodies and races composed of 17-4PH CRES heat-treated stainless steel and a 440C CRES heat-treated stainless steel ball. FK SJM-T/SJF-T/SRSM-T Series rod ends come standard with a PTFE fabric liner bonded to the race i.d.
    • 1/2" RH male threads
    • 3-piece precision stainless steel construction
    • Self-lubricating, high-strength
    • 17-4PH CRES heat-treated stainless steel bodies and races
    • 440C CRES heat-treated stainless steel ball

    Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

    Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

    FK Rod End Chart (Link)

    Specifications

    KEY SPECS
    MFG. Part #SJM8T
    BrandFK Rod Ends
    Material TypeStainless Steel
    GENERAL
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch1/2"-20
    Hole Diameter0.5"
    Rod End StyleHeat-Treated Stainless Steel/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishNatural
    ColorNatural
    Thread Length1.337"
    Rod End Ball Diameter0.625"
    Rod End Head Diameter1.337"
    Rod End Head Width0.515"
    Rod End Misalign Angle11 degrees
    Center Hole to End of Shank2.438"
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity19520 lbs.
    GTIN Code800199870817
    Sold in QuantityEach
