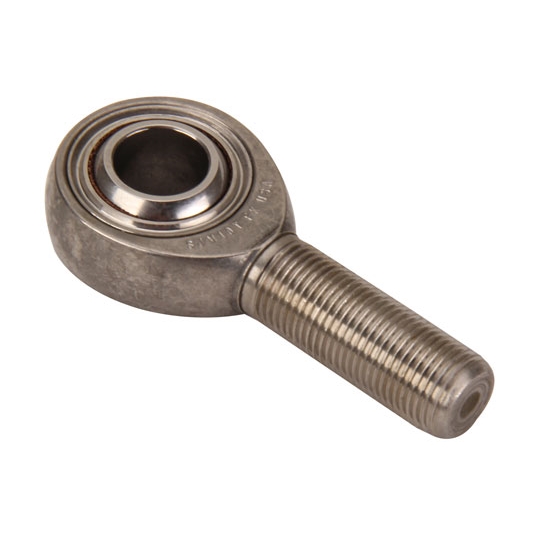

FK Rod Ends SJM10T Stainless Steel 5/8 Inch RH Male Heim Joint
- This heim joint has 5/8" RH male threads
- Includes a 440C CRES heat-treated stainless steel ball
- Features a 3-piece precision stainless steel construction
$74.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Stainless Steel
- This heim joint has 5/8" RH male threads
- Includes a 440C CRES heat-treated stainless steel ball
- Features a 3-piece precision stainless steel construction
- Has 17-4PH CRES heat-treated stainless steel bodies and races
- Rod ends come standard with a PTFE fabric liner bonded to the race i.d.
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Stainless Steel |
| Hole Diameter | 0.625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFK Rod Ends SJM10T Details
FK Rod Ends SJM10T Details
- 5/8" RH male threads
- 3-piece precision stainless steel construction
- Self-lubricating, high-strength
- 17-4PH CRES heat-treated stainless steel bodies and races
- 440C CRES heat-treated stainless steel ball
Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
FK Rod End Chart (Link)
FK Rod Ends SJM10T Specifications
FK Rod Ends SJM10T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | SJM10T |
| Brand | FK Rod Ends |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Stainless Steel |
| Hole Diameter | 0.625" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Natural |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.562" |
| Rod End Ball Diameter | 0.750" |
| Rod End Head Diameter | 1.525" |
| Rod End Head Width | 0.577" |
| Rod End Misalign Angle | 14 degrees |
| Center Hole to End of Shank | 2.625" |
| Heat Treated | Yes |
| Load Capacity | 21920 lbs. |
| GTIN Code | 800199871012 |
| Sold in Quantity | Each |
