Product Summary

  • Features a 5/8"-18 tread pitch with a hole diameter of 0.500"
  • The body is made of 7075-T6 aluminum and is hard anodized black
  • Ball is made of 52100 steel that is heat treated and hard chrome plated
  • Race is heat treated steel alloy that has been zinc plated and chromate treated
  • Rod end ball diameter measures 0.937" and both the rod end head width and diameter both measures 0.625"

Key Specs

Thread Type
Rod End AttachmentMale Threads/Eyelet
Thread Pitch5/8"-18
Material TypeAluminum
Hole Diameter0.5"

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

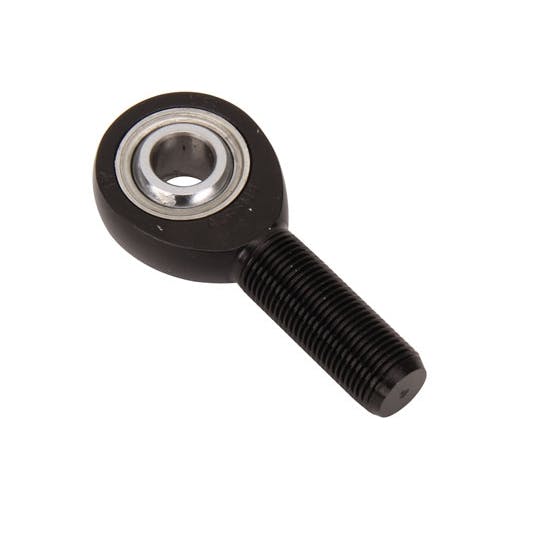

FK Rod Ends offers this three piece male heim. The ball is made of 52100 steel that is heat treated and hard chrome plated. The body is made of 7075-T6 aluminum and is hard anodized black. The race is heat treated steel alloy that has been zinc plated and chromate treated.

  • Ball is 52100 steel, heat treated and hard chrome plated
  • Body is 7075-T6 aluminum, hard anodized black
  • Race is alloy steel, heat treated, zinc plated, chromate treated

Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

(JPG)

Charts

Specifications

KEY SPECS
MFG. Part #
BrandFK Rod Ends
Thread Type
Rod End AttachmentMale Threads/Eyelet
Thread Pitch5/8"-18
Material TypeAluminum
Hole Diameter0.5"
Rod End StyleHeat-Treated Alloy Steel Race
Rod End Construction3-piece
Grease FittingNo
FinishAnodized
ColorBlack
Rod End Misalign Angle10 degrees
Jam Nut IncludedNo
GENERAL
Thread Length1.625"
Rod End Ball Diameter0.937"
Rod End Head Diameter0.625"
Rod End Head Width0.625"
Center Hole to End of Shank2.625"
Heat TreatedYes
Load Capacity14880 lbs.
GTIN Code
Sold in QuantityEach
