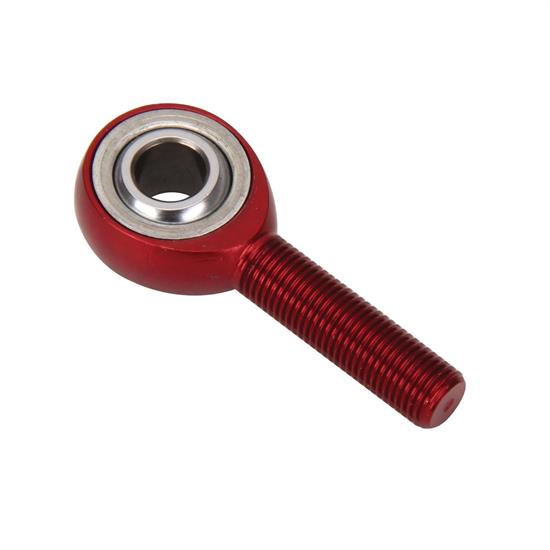

FK Rod Ends ALJM6 3/8-24 RH Male Aluminum Heim Joints
FK Rod Ends ALJM6 3/8-24 RH Male Aluminum Heim Joints

FK Rod Ends ALJM6 3/8-24 RH Male Aluminum Heim Joints

Universal Fit, RH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Aluminum, Anodized

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
FK Rod Ends ALJM6 3/8-24 RH Male Aluminum Heim Joints
FK Rod Ends ALJM6 3/8-24 RH Male Aluminum Heim Joints
FK Rod Ends ALJM6 3/8-24 RH Male Aluminum Heim Joints
X
FK Rod Ends ALJM6 3/8-24 RH Male Aluminum Heim Joints
Zoomed In Image
Part # 150014
$9.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
RH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
3/8"-24
Material Type:
Aluminum
Hole Diameter:
0.375"
Rod End Style:
Heat-Treated Alloy Steel Race
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Anodized
Color:
Red
Thread Length:
1.250"
Rod End Ball Diameter:
0.406"
Rod End Head Diameter:
0.375"
Rod End Head Width:
0.500"
Rod End Misalign Angle:
14 degrees
Center Hole to End of Shank:
1.938"
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
4208 lbs.
MFG. Part #:
ALJM6
GTIN Code:
800199030600
Sold in Quantity:
Each

Info

FK Rod Ends offers this three piece male heim. The ball is made of 52100 steel that is heat treated and hard chrome plated. The body is made of 7075-T6 aluminum and is hard anodized red. The race is heat treated steel alloy that has been zinc plated and chromate treated.
  • Ball is 52100 steel, heat treated and hard chrome plated
  • Body is 7075-T6 aluminum, hard anodized red
  • Race is alloy steel, heat treated, zinc plated, chromate treated

Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
