#150012

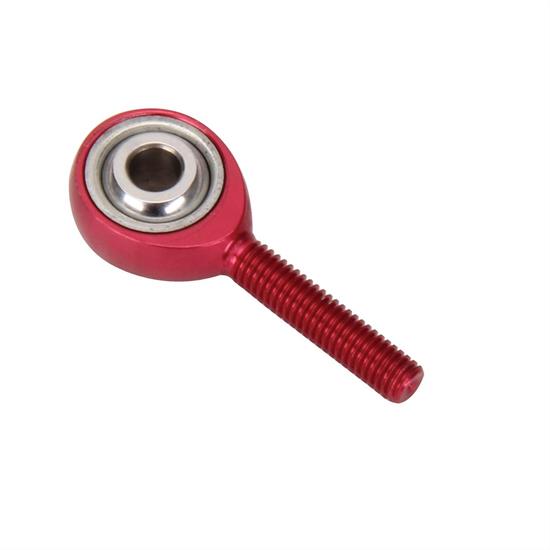

FK Rod Ends ALJM3 Aluminum 10-32 Male Throttle Linkage Heim Joints
$11.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Aluminum |
| Hole Diameter | 0.19" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFK Rod Ends ALJM3 Details
FK Rod Ends ALJM3 Details
FK Rod Ends offers this three piece male heim. The ball is made of 52100 steel that is heat treated and hard chrome plated. The body is made of aluminum and is hard anodized red. The race is heat treated steel alloy that has been zinc plated and chromate treated.
- Ball is 52100 steel, heat treated and hard chrome plated
- Body is 7075-T6 aluminum, hard anodized red
- Race is alloy steel, heat treated, zinc plated, chromate treated
Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
(JPG)
Charts
Standard Rod End Chart (JPG)
Guides & Documents
FK Rod Ends ALJM3 Specifications
FK Rod Ends ALJM3 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | ALJM3 |
| Brand | FK Rod Ends |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Aluminum |
| Hole Diameter | 0.19" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Red |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.750" |
| Rod End Ball Diameter | 0.437" |
| Rod End Head Diameter | 0.625" |
| Rod End Head Width | 0.312" |
| Rod End Misalign Angle | 13 degrees |
| Center Hole to End of Shank | 1.250" |
| Heat Treated | Yes |
| Load Capacity | 1360 lbs. |
| GTIN Code | 800199030303 |
| Sold in Quantity | Each |
