#150020
FK Rod End ALRSM8-6B Aluminum Heim Joint, 5/8-18 LH Male, 3/8 Hole
$21.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#150020
$21.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Aluminum |
| Hole Diameter | 0.375" |
Need help?
855.313.9176Quick and Easy Returns
Return Policy
FK Rod Ends offers this three piece male heim. The ball is made of 52100 steel that is heat treated and hard chrome plated. The body is made of 7075-T6 aluminum and is hard anodized black. The race is heat treated steel alloy that has been zinc plated and chromate treated.
Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
(JPG)
Charts

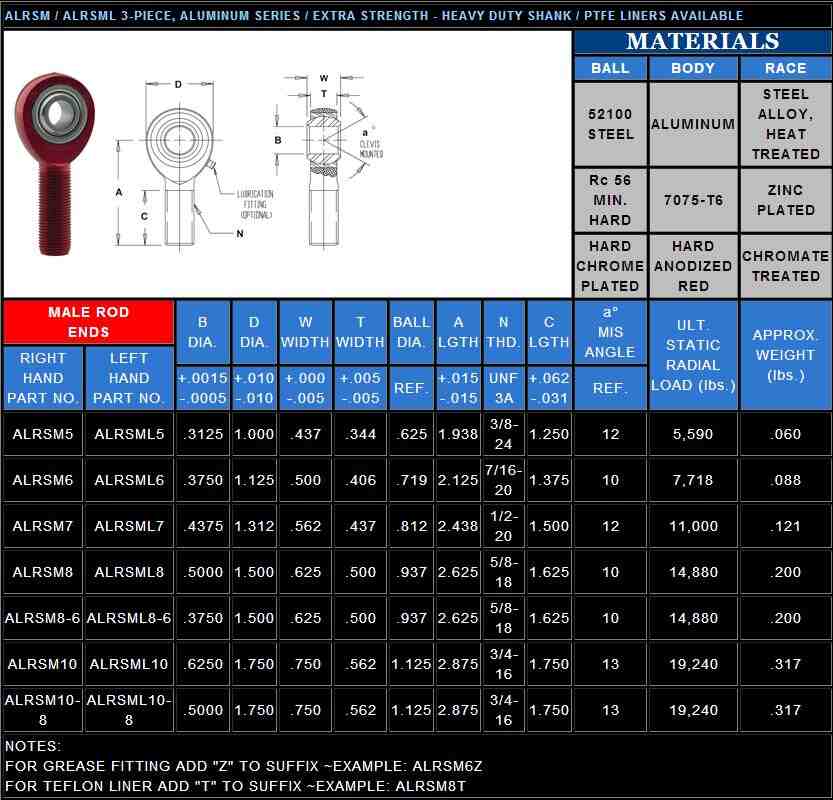

Standard Rod End Chart (JPG)
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | ALRSM8-6B |
| Brand | FK Rod Ends |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Aluminum |
| Hole Diameter | 0.375" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Anodized |
| Color | Black |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.625" |
| Rod End Ball Diameter | 0.937" |
| Rod End Head Diameter | 0.625" |
| Rod End Head Width | 0.625" |
| Rod End Misalign Angle | 10 degrees |
| Overall Length | 3.40" |
| Center Hole to End of Shank | 2.625" |
| Heat Treated | Yes |
| Load Capacity | 14880 lbs. |
| Sold in Quantity | Each |
