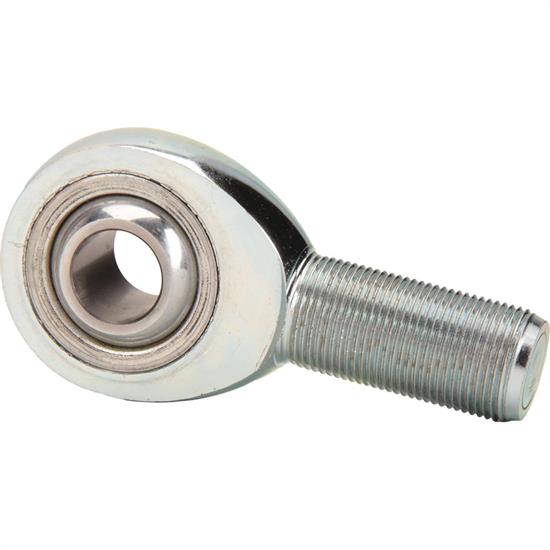

FK Rod Ends offers this three piece male rod end. The ball is made of 52100 steel that is hard chrome plated. The body is made of alloy steel and is zinc plated. The race is heat treated steel alloy that has been zinc plated and chromate treated.

Ball is 52100 steel, Rc 56 Min. Hard, and hard chrome plated
Body is alloy steel, heat treated, zinc plated
Race is alloy steel, heat treated, zinc plated, chromate treated
PTFE liner
7/8"-14 thread pitch
2.00" thread length
0.88" inside diameter
4.38" overall length
Choose Left Hand or Right Hand threads

Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Specifications

KEY SPECS
MFG. Part #	JMX14T
Brand	FK Rod Ends
Thread Type	Select Side to see
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	7/8"-14
Material Type	Steel
Hole Diameter	0.875"
Rod End Style	PTFE Lined
Rod End Construction	3-piece
Grease Fitting	No
Finish	Zinc Plated
Color	Natural
Bushing Material	PTFE
Jam Nut Included	No

GENERAL
Thread Length	Select Side to see
Rod End Ball Diameter	1.312"
Rod End Head Diameter	Select Side to see
Rod End Head Width	0.875"
Rod End Misalign Angle	12 degrees
Overall Length	4.38"
Center Hole to End of Shank	3.375"
Heat Treated	Yes
Load Capacity	55690 lbs.
GTIN Code	800199391411
Sold in Quantity	Each
