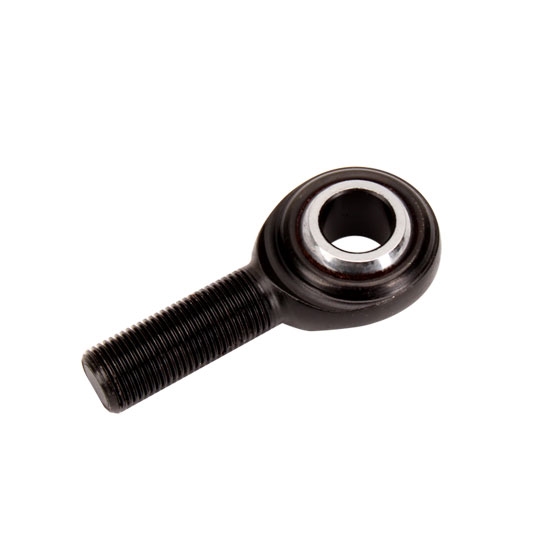

FK CMXT Series Male Heim Joint Rod Ends, 5/8 Inch Thread

#1503010

FK CMXT Series Male Heim Joint Rod Ends, 5/8 Inch Thread

Name: FK CMXT Series Male Heim Joint Rod Ends, 5/8 Inch Thread
Brand: FK Rod Ends
SKU: 1503010
Rating: 4.5 (6 reviews)

6 Reviews

1 Question

These hem joint rod end features a P.T.F.E. liner
Hole diameter measures 0.625" and has a misaligned angle of 26 degrees
Body is made from alloy steel that is heat treated and silver oxide coated

Thread:

Select a thread

$22.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

These hem joint rod end features a P.T.F.E. liner
Hole diameter measures 0.625" and has a misaligned angle of 26 degrees
Body is made from alloy steel that is heat treated and silver oxide coated
The ball is made from 52100 steel and is heat treated and hard chrome plated
It has a 5/8"-18 male thread pitch that is available in left or right hand and has a 1.630" thread length

See more details

Key Specs

Thread Type	Select Thread
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	5/8"-18
Material Type	Steel
Hole Diameter	0.625"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

FK Rod Ends offers this two piece male heim. The ball is made of 52100 steel that is heat treated and hard chrome plated. The body is made of alloy steel and is black oxide coated. The race is heat treated steel alloy that has been zinc plated and chromate treated.

Ball is 52100 steel, heat treated and hard chrome plated
Body is alloy steel, heat treated, black oxide coated
Race is alloy steel, heat treated, zinc plated, chromate treated
P.T.F.E. liner
5/8" thread
Choose Left Hand or Right Hand threads

Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Specifications

KEY SPECS
MFG. Part #	Select Thread to see
Brand	FK Rod Ends
Thread Type	Select Thread to see
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	5/8"-18
Material Type	Steel
Hole Diameter	0.625"
Rod End Style	PTFE Lined
Rod End Construction	2-piece
Grease Fitting	No
Finish	Black Oxide
Color	Black
Bushing Material	PTFE
Jam Nut Included	No

GENERAL
Thread Length	1.630"
Rod End Ball Diameter	1.125"
Rod End Head Diameter	1.5"
Rod End Head Width	0.75"
Rod End Misalign Angle	26 degrees
Center Hole to End of Shank	2.625"
Heat Treated	Yes
Load Capacity	15200 lbs.
GTIN Code	Select Thread to see
Sold in Quantity	Each

Ratings & Reviews

4.5

6 Reviews

Overall Assessment

Customers appreciate the product, especially as a solution for tie rod ends and steering arm clearance. Notably, the product's quality and solid construction echo through several reviews. Users report a good tolerance level, demonstrating no unnecessary slack, though some note a slight tightening over time. Despite this, the Heim joint continuously functions well, which has led to some consumers repurchasing it. As compared to competitors, FK rod ends have proved consistently reliable and satisfactory, despite minor issues with the kevlar lining.

Write A Review

4.5

6 reviews

Filter by Ratings

Sort Reviews

Good part

5.0

5 years ago

Michael

Alvarado, TX

Verified

Worked great as tie rod ends for the modified

Would Recommend

A good solution

5.0

5 years ago

Miltoid

Lincoln, NE

Verified

I needed this for clearance of my steering arm by the headers. It's a quality Heim joint.

Would Recommend

I would buy again.

5.0

5 years ago

23Tbucket

Batavia, IL.

Verified

Got what I paid for

Would Recommend

Good quality

5.0

8 years ago

Dave

Lincoln NE

Verified

Good tolerance. Smooth but no slop.

Would Recommend

I would buy again

3.0

9 years ago

Showtime

Hayden AL

Verified

Heim was a little tight but still functioned well

Would Recommend

FK is good quality

4.0

10 years ago

Formerly Frogman

Lincoln NE

Verified

Have always had pretty good results with FK rod ends. The only downside I've encountered is sometimes over time the kevlar lining starts lifting out slightly making the heim clearance tighten up some.

Would Recommend

Showing 6 of 6 reviews
