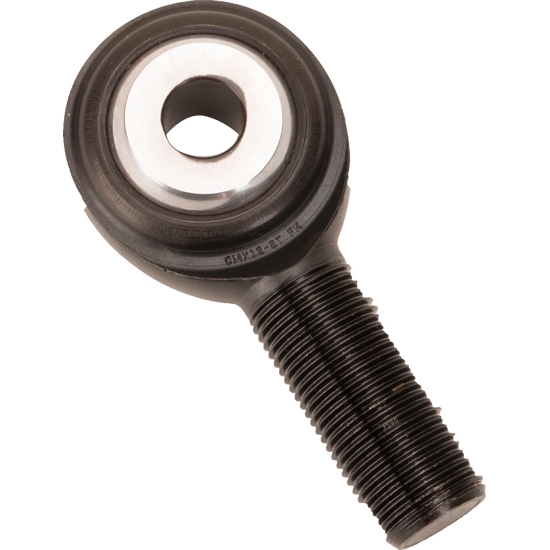

FK CMXT Black Series Male Heim Joint Rod Ends, 1/2 x 3/4 Inch Thread
Starting from
$23.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | Select Thread |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
- Ball is 52100 steel, heat treated and hard chrome plated
- Body is alloy steel, heat treated, black oxide coated
- Race is alloy steel, heat treated, zinc plated, chromate treated
- P.T.F.E. liner
- 1/2" hole x 3/4"shaft
- Choose Left Hand or Right Hand threads
Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Thread to see |
| Brand | FK Rod Ends |
| Thread Type | Select Thread to see |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.5" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Black Oxide |
| Color | Black |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.75" |
| Rod End Ball Diameter | 1.312" |
| Rod End Head Diameter | 1.75" |
| Rod End Head Width | 0.875" |
| Rod End Misalign Angle | 24 degrees |
| Center Hole to End of Shank | 2.875" |
| Heat Treated | Yes |
| Load Capacity | 21400 lbs. |
| Sold in Quantity | Each |
