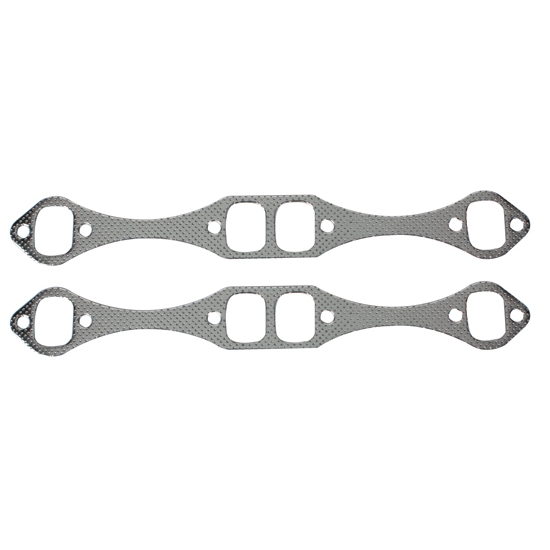

EXtreme Small Block Chevy 1-3/4 In Rectangular Port Header Gasket

#91013510

EXtreme Small Block Chevy 1-3/4 In Rectangular Port Header Gasket

Name: EXtreme Small Block Chevy 1-3/4 In Rectangular Port Header Gasket
Brand: Speedway Motors
SKU: 91013510
Price: 27.99 USD
Availability: InStock
Rating: 5 (2 reviews)

2 Reviews

Ask a Question

Header gaskets feature a triple layer design of stainless steel with a heat-resistant, rubber-based inner core
EXtreme header gaskets are 0.085" thick and ultra-pliable for great sealing on all surface types
EXtreme header gaskets are reusable thanks to their stainless steel outer layer and won't stick or flake off

Diameter/Port:

1-3/4" Rectangular

1-5/8 Inch Oval 1-5/8" Rectangular

$27.99

/pair

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Stainless w/ High-Temp Rubber Core Gasket Material

Header gaskets feature a triple layer design of stainless steel with a heat-resistant, rubber-based inner core
EXtreme header gaskets are 0.085" thick and ultra-pliable for great sealing on all surface types
EXtreme header gaskets are reusable thanks to their stainless steel outer layer and won't stick or flake off
The triple layer design combined with the thickness of the gasket conforms to surface irregularities to create a tight, leak-proof seal
Available in popular domestic V8 engine applications along with matching header collector gaskets

See more details

Key Specs

MFG. Part #	91013510
Brand	Speedway Motors
Gasket Material	Stainless w/ High-Temp Rubber Core
Overall Thickness	.085"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91013510 Details

Reusable, triple layer stainless steel design with heat-resistant rubber inner core
EXtreme gaskets provide better sealing than standard exhaust gaskets
Suitable for high temperature use in performance engine applications
Ultra-pliable .085-inch thick gasket conforms to irregular surfaces
Direct fit for application with no trimming or modifications required
SBC rectangular exhaust port measures 1.77 inches high by 1.38 inches wide
Seals imperfect header and cylinder head surfaces that paper gaskets can’t

A Reusable Exhaust Header Gasket That Resists Leaks and Blowout Failures

Exhaust header gaskets have a tough job. They need to keep your engine’s hot exhaust gasses inside the header as the exhaust passes from the cylinder head to the header and on through the exhaust system. The union between the cylinder head and the header is where the highest heat is found in the exhaust system, so the exhaust header gasket needs to be up to the task to keep those hot gasses inside where they belong. Most headers ship with one-time use paper exhaust header gaskets that do not do a particularly good job of sealing unless the cylinder head and header flanges are perfect (and they rarely are). Tricks like soaking the paper gaskets in water or adding globs of silicone gasket maker all around the ports are just band-aids. Whether you’re installing brand new headers, or you’re looking for a quality gasket to service a leak on your existing headers, our EXtreme triple layer gaskets are a great solution.

Three Layers of High Heat Resistant Material Provides Lasting Protection

Our EXtreme header gaskets feature two layers of perforated stainless steel gasket material sandwiching an inner core of high-temperature rubber-based gasket material, making for a long lasting exhaust header gasket that can be reused multiple times while sealing minor imperfections and surface irregularities. This allows header removal for engine or cylinder head service without having to worry about spending time scraping dried and burnt paper gasket material off your headers and/or cylinder heads. Once you’re ready to bolt your headers back up, simply wipe down the exhaust header gasket surfaces and slip them in place between the cylinder heads and your headers and torque your header bolts to spec. The .085-inch thick header gaskets remain pliable heat cycle after heat cycle to resist exhaust leaks and blow outs.

Available For Most Popular Cylinder Head Exhaust Port Flanges

The application for this part number is the small block Chevy with 1-3/4-inch rectangular port exhaust port/header flange specification and sold in pairs. If your SBC header gasket requires round ports or you’re looking for a different application, including BBC header gaskets, SBF header gaskets, and others we offer our EXtreme header gaskets in many popular applications. We also offer matching EXtreme header collector gaskets as well to ensure your header seals properly both at the cylinder heads and at the collectors on your headers. Speedway Motors EXtreme exhaust header gaskets and header collector gaskets are some of the best header gasket options for the money.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Speedway Motors 91013510 Specifications

KEY SPECS
MFG. Part #	91013510
Brand	Speedway Motors
Gasket Material	Stainless w/ High-Temp Rubber Core
Overall Thickness	.085"

GENERAL
Material Type	Gasket Material
Port Style	Rectangular Port
Port Height	1.77"
Port Width	1.38"
Sold in Quantity	Pair
