Electric Sending Unit Sender Sensor for Oil/Water/Fuel Gauges

Electric Sending Unit Sender Sensor for Oil/Water/Fuel Gauges
Universal Fit, Brass
In Stock
Can Ship FREE
Select Vehicle






Electric Sending Unit Sender Sensor for Oil/Water/Fuel Gauges
X





Details
Reviews
Q&A
Videos & Articles
- These brass sender-switches are designed to create a ground signal for a warning light circuit
- They work to incorporate warning lights into you race car or dash
- Available in oil pressure, oil temperature, water temperature, and fuel pressure configurations
- Oil pressure sender is rated at 30 psi plus/minus 10 psi
- Fuel sender is rated at 3 psi plus/minus 2 psi, 1/8" NPT threads
Details
Notes:
FUEL ALT. 47543021.
20 ALT. 47543080
OIL ALT. 47543000
Sold in Quantity:
Each
MFG. Part #:
Select Sender Type to see
Material Type:
Brass
Info
These brass sender-switches create a ground signal for a warning light circuit. They work great to incorporate warning lights into you race car or dash. They will not be compatable with any gauge. Choose from oil pressure, oil temperature, water temperature, and fuel pressure.
Sender Types:

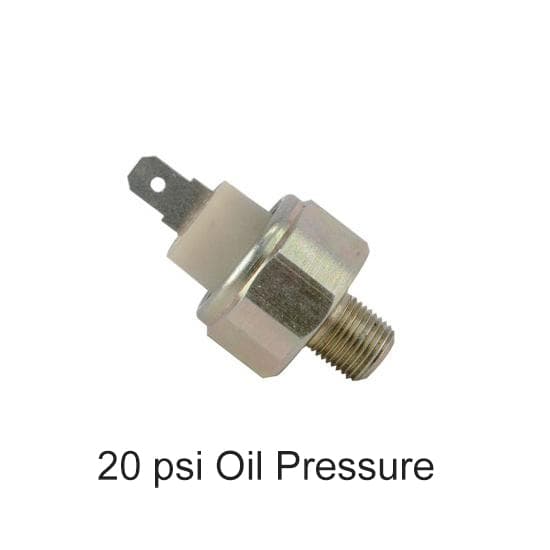

- 20 - 20 psi oil pressure 1/8" npt

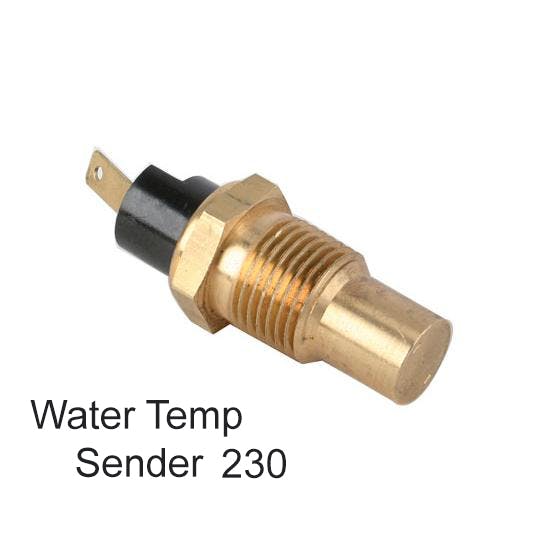

- 230 - 230* water temp 1/2" npt

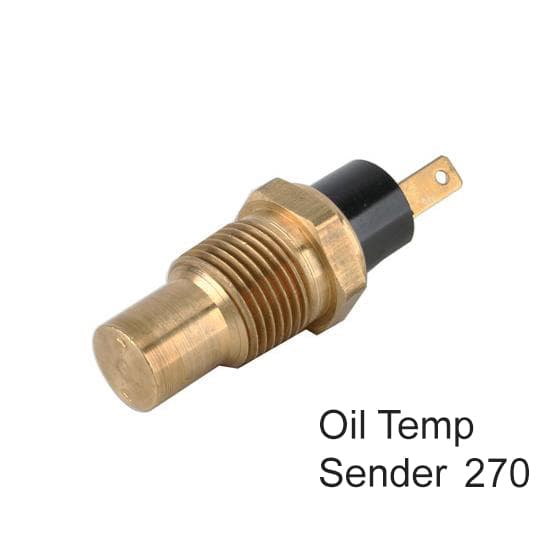

- 270 - 270* oil temp 1/2" npt

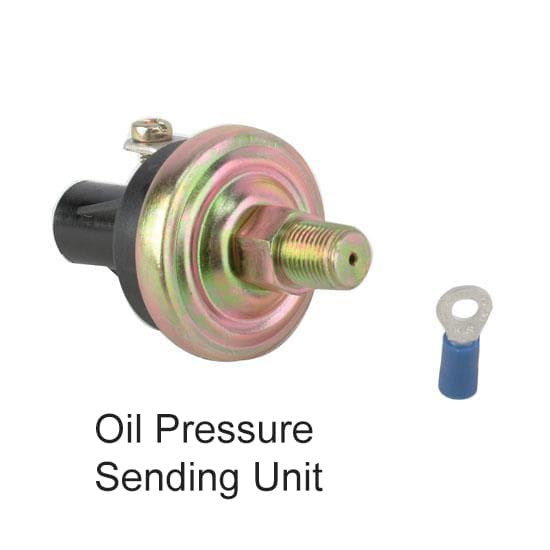

- Oil Pressure- Rated at 30 psi plus/minus 10 psi

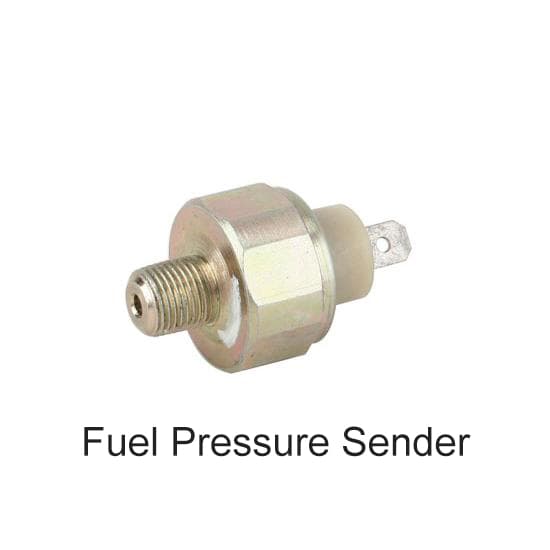

- Fuel Pressure- Rated at 3 psi plus/minus 2 psi, 1/8" NPT threads
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
