#9100566
Edelbrock Performer EPS Chevy Intake Manifold & Intake Gaskets
3 Reviews
|
1 Question
- Designed to fit the 1986 and earlier 262-400 cubic-inch Chevys
- Tuned for peak torque around 3500 rpm on a 350-inch engine and it produces power from off-idle to 5500 rpm
- Gains of 5 hp and 9 ft/lbs. of torque over the standard manifold on a 350 Chevy are dyno-proven
See More
$197.99
kit
In Stock
$209.94
Save $11.95
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Carbureted Fuel System Type
- Designed to fit the 1986 and earlier 262-400 cubic-inch Chevys
- Tuned for peak torque around 3500 rpm on a 350-inch engine and it produces power from off-idle to 5500 rpm
- Gains of 5 hp and 9 ft/lbs. of torque over the standard manifold on a 350 Chevy are dyno-proven
- IMCA Approved intake manifold
- Gasket dimensions measure 1.23" x 1.99"
Comes as a Kit
View Kit Components
See more details
Key Specs
| MFG. Part # | 9100566 |
| Brand | Speedway Motors |
| Intake Manifold Type | Dual Plane |
| RPM Range | Idle-5,500 |
| Material Type | Aluminum |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9100566 Details
Speedway Motors 9100566 Details

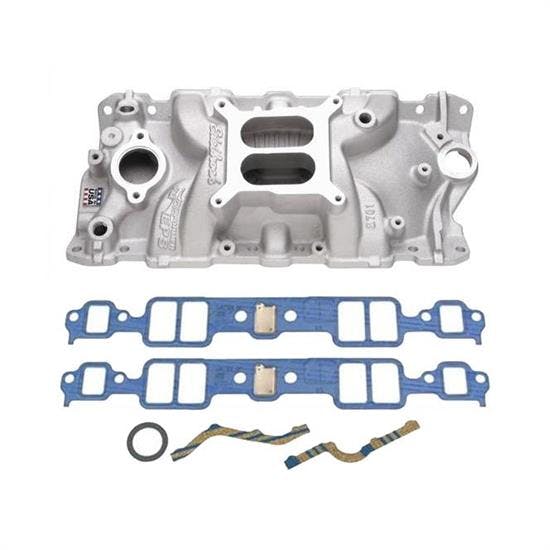

Intake Manifold
Designed for 1986 and earlier 262-400 cubic-inch Chevys, the Performer EPS dual-plane manifold is optimized to deliver superior performance over other low-rise dual plane manifolds. This small-block Chevy manifold has a runner design thats "tuned" for peak torque around 3500 rpm on a 350-inch engine and it produces power from off-idle to 5500 rpm.
Dyno tests showed gains of 5 hp and 9 ft/lbs of torque over the standard Performer manifold on a 350 Chevy. From 3000 to 4500 rpm, the increases averaged 5+ ft/lbs. of torque for more performance where you need it most.
IMCA racing approved.

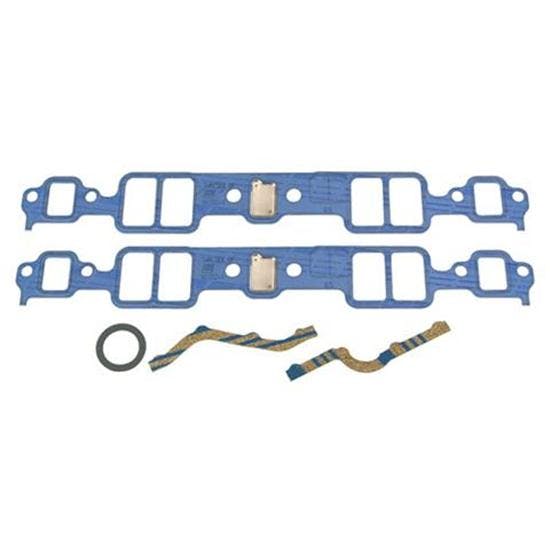

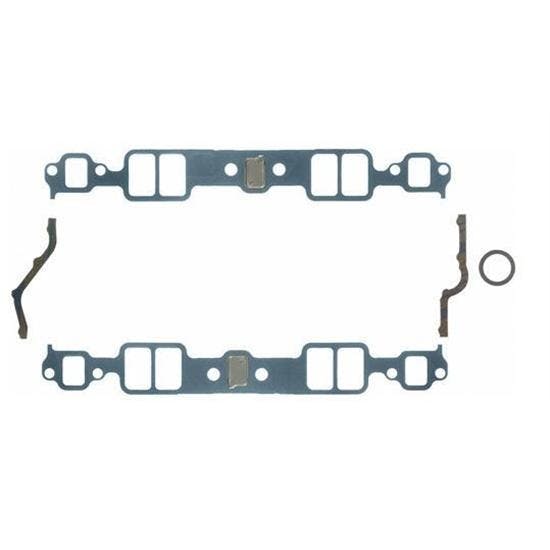

Fel-Pro Intake Gaskets
Fel-Pro Blue Stripe premium quality intake manifold gaskets for Small Block Chevy (SBC).
NOTE: Not for use on 1982-85 engines with factory fuel injection, embossed permatorque/blue stock (blocked heat cross over)
Charts
325-2701 Instructions (PDF)
Specs
- Port exit dimensions: 1.15" x 1.87"
- Carb pad height: 4.27"
Guides & Documents
Speedway Motors 9100566 Specifications
Speedway Motors 9100566 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9100566 |
| Brand | Speedway Motors |
| Intake Manifold Type | Dual Plane |
| RPM Range | Idle-5,500 |
| Material Type | Aluminum |
| GENERAL | |
| Fuel System Type | Carbureted |
| Carburetor Quantity | One |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Finish | Natural |
| EGR | No |
| Intake Section Included | Complete |
| Gaskets Included | Yes |
| Overall Height | 4.25" |
| Mounted Height | 4.25" |
| Port Height | 1.85" |
| Port Width | 1.15" |
| Bolt Hole Pattern | 5.160" x 5.625" |
| Sold in Quantity | Kit |
| Notes | Edelbrock recommends a 500-650 CFM carb. |
