Edelbrock 5089 E-Street SBC Alum Cylinder Heads/Std. Install Kit

Kit Includes:

• (2) Edelbrock 5089 E-Street Cylinder Heads, Small Block Chevy
• (1) Set of Manley Chevy 4130 Chromoly Pushrods, .100 Longer, 7.894 Inch
• (2) Fel-Pro P1010 S/B Chevy 265-400 Copper Ring Head Gaskets 4.166 In. Bore
• (8) Champion 71 RC12YC Spark Plugs
• (1) Set of ARP 134-3601 SBC Cylinder Head Bolts
• (1) Set of COMP Cams 19001-16 Ultra-Gold ARC Series Rocker Arms, Chevy 3/8-1.5

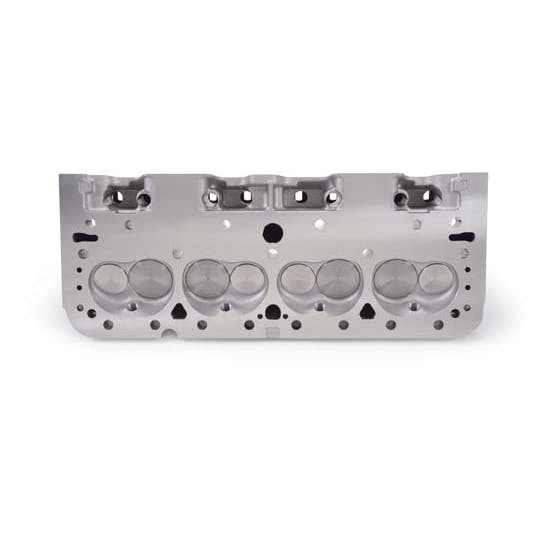

Edelbrock 5089 E-Street Cylinder Head, Small Block Chevy

• Entry Level Street Performance Upgrade
• A356 Aluminum
• Sold As A Pair
• Edelbrock Quality And Performance
• Affordable Price
• Made In U.S.A.

Manley Chevy 4130 Chromoly Pushrods, .100 Longer, 7.894 Inch

• Heat treated
• Black oxide finish
• For hydraulic or solid flat tappet cam engines with less than 400 lbs. open spring pressure and under 7500 rpm
• Set of 16

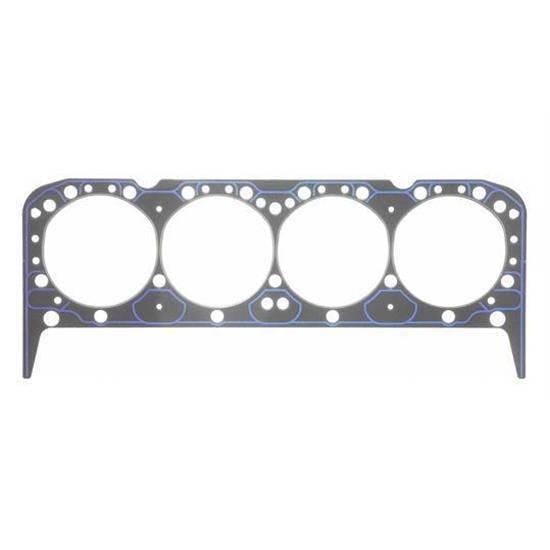

Fel-Pro P1010 S/B Chevy 265-400 Copper Ring Head Gasket 4.166 In. Bore

• Gaskets are sold each
• Pre-flattened copper wire
• Nominal compression thickness: .039"
• Compressed volume: 8.9 cc
• Recommended for 86-91 Corvette aluminum heads. Max 4.155" bore.
• 4.166" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer.
• When using aluminum heads, we recommend gaskets with soft copper wire rings (such as 344-1010). This ensures that the aluminum head is not "scarred" by the combustion seal. Shim style 344-1094 will also work well with aluminum heads.

Champion 71 RC12YC Spark Plugs

• Copper core spark plugs
• Guaranteed to deliver quick starts, good fuel economy and smooth acceleration

ARP 134-3601 SBC Cylinder Head Bolts

• 23° Cast iron OEM
• Gen III Vortec/Truck
• Most Edelbrock
• LT-AFR
• Brodix-8,-10,-11,-11xb
• LT-1
• Dart Pro-1
• Trick Flow heads
• Most World Products heads

COMP Cams 19001-16 Ultra-Gold ARC Series Rocker Arms, Chevy 3/8-1.5

• For Chevy Small Block V8 265-400 cid (SBC) - 3/8" Stud - 1.5 Ratio
• Next gen Ultra-Gold™ Rockers increase engine power, enhance valve train stability & improve oiling
• New extrusion based on improvements developed through FEA analysis, resulting in an even stronger, stiffer body without compromising mass
• Arced channel & contoured top give the rockers the best strength to weight ratio possible
• Exclusive spiral lock type clips replace retaining clips
• Lifetime Warranty - Buy them once, use them for a lifetime! For use with up to 700 lbs of open spring pressure.

Installation Instructions (PDF)

Pushrod Application Chart (GIF)

Head Gasket Application (JPEG)

Speedy Tip for Proper Head Gasket Seal (GIF)
