Part # 9109590
Edelbrock 1913 AVS2 Series 800CFM Carburetor w/RochAdapter/Filter
by
- This carburetor features annular flow primary boosters to improve off idle and cruising performance
- Designed for smaller cubic-inch engines with a single carburetor
- Ready to be bolted on and ready to run right out of the box
See More
$465.99
kit
On Backorder
$489.93
Save $23.94
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Product Summary
Universal Fit, 4-Barrel Carburetor Barrels, 800 CFM CFM
- This carburetor features annular flow primary boosters to improve off idle and cruising performance
- Designed for smaller cubic-inch engines with a single carburetor
- Ready to be bolted on and ready to run right out of the box
- These air cleaners have a chrome plated steel housing with a paper filter element
- This tapered port carb adapter comes with gaskets for the top and bottom as well as all mounting hardware
Comes as a Kit
View Kit Components
See more details
Key Specs
| Brand | Edelbrock |
| Carburetor Barrels | 4-Barrel |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Fuel Type | Gasoline |
| Choke Type | Electric |
See more specs
Need To Know
This Product Will Ship Free
Quick and Easy Returns
Details
Details

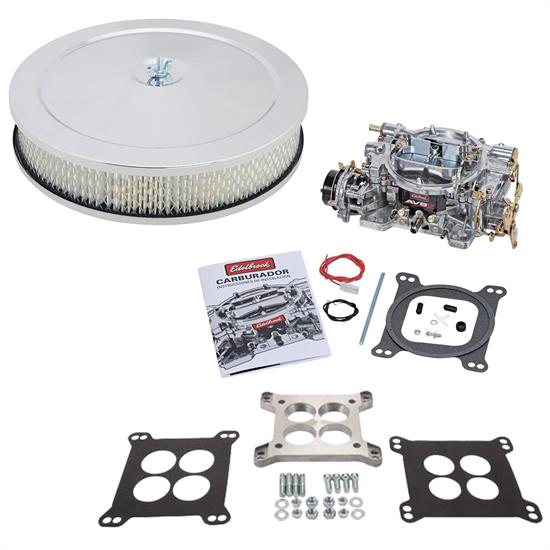

Kit Includes:
- (1) Edelbrock 1913 AVS2 Series Carburetor, Electric Choke, 800 CFM
- (1) Holley/Edelbrock to Rochester 4G 4-Jet Carburetor Adapter Plate
- (1) 10 Inch Chrome Air Cleaner, 4 Barrel Carb
Edelbrock 1913 AVS2 Series Carburetor, Electric Choke, 800 CFM
- Mounting Hole Quantity: 8
- Body Material: Aluminum
- Metering Rod Length: 65 in
- Secondary Jet Diameter: 104 in
- Mounting Hole Diameter: 0.355 in
- Barrel Quantity 4
- Gasket Or Seal Included Yes
- Flange Shape: Square
- Mounting Hardware Included: No
- Spacer Included: No
- Main Venturi Diameter: 1.530 in
- Small Venturi Diameter: 1.630 in
- Body Color: Satin Finish
- Choke Type: Electric
- Maximum Flow Rating: 800 CFM
- Primary Jet Diameter: 104 in
Holley/Edelbrock to Rochester 4G 4-Jet Carburetor Adapter Plate
- Adapts Holley/Edelbrock carb to Rochester 4G intake
- Adapts Rochester 4G carb to medium/large base intake
- 7/16" thick
- 4 tapered-hole ports
10 Inch Chrome Air Cleaner, 4 Barrel Carb
- Chrome plated steel
- 10" diameter and 2" tall filter element
- 3-1/4" assembled height not including hold down nut
- Fits 4 barrel carbs with 5-1/8" neck
- 0.625" tube stem diameter
- includes stud and wing nut
Charts
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Edelbrock |
| Carburetor Barrels | 4-Barrel |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Fuel Type | Gasoline |
| Choke Type | Electric |
| GENERAL | |
| Sold in Quantity | Kit |
| CFM | 800 CFM |
| Finish | Satin |
| Material Type | Aluminum |
| Color | Silver |
| Gasket(s) Included | Yes |
