Edelbrock 1711 Victor Series 130 GPH Fuel Pump/Supply Kit,8AN,SBC

Plumb your Small Block Chevy fuel system with these complete fuel pump installation kits!

Kit Includes:

• (1) Edelbrock 1711 Small Block Chevy Victor Series 130 GPH Fuel Pump
• (1) Speedway Chrome Adjustable Fuel Pressure Regulator, 4-9 PSI
• (2) 90 Degree Flare Adaptor, AN8 to 3/8 Inch NPT
• (6) Speedway Full Flow Swivel Hose End Fitting, Straight, Red/Blue, -8 AN
• (2) Blue Straight AN8 Flare Adapter to 3/8 Inch Aluminum Pipe Fitting
• (2) Earls 991957ERL -8 AN Male to 7/8-20 Inch Male Carb Adapter, Blue
• (1) Speedway Stainless Steel Braided Hose Line, -8 AN, 6 Ft.

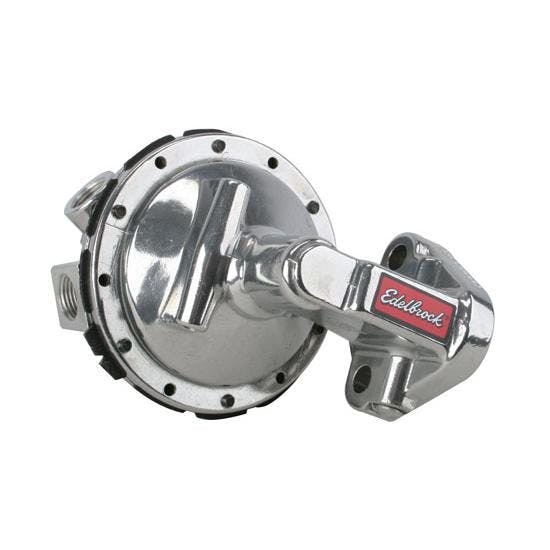

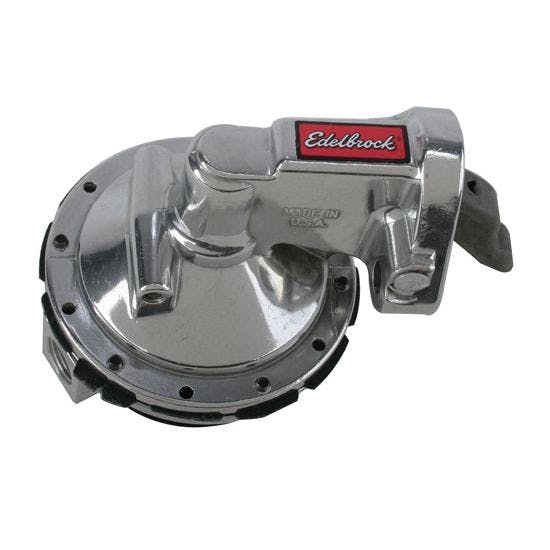

Edelbrock 1711 Small Block Chevy Victor Series 130 GPH Fuel Pump

• A must for drag racing, circle track racing, street machines or any application that demands a high-volume fuel delivery
• Feature a brilliant three stage polished finish
• High-volume 3/8" NPT inlet and outlet orifices surpass the capacity of conventional models
• Produces 10 psi and must be used with an external fuel pressure regulator
• Flow capacity of 130 gallons per hour
• For gasoline only
• Clockable lower housing can be rotated for best inlet/outlet alignment
• 130 GPH / 492 LPH



Chrome Adjustable Fuel Pressure Regulator, 4-9 PSI

• Chrome plated 2-port pressure fuel regulator
• Adjustable from 4 to 9 PSI for carbureted applications
• Includes a chrome steel mounting bracket
• Use one regulator per fuel bowl for high flow applications
• One 3/8" NPT female inlet (bottom)
• Two 3/8" NPT female outlets (sides)

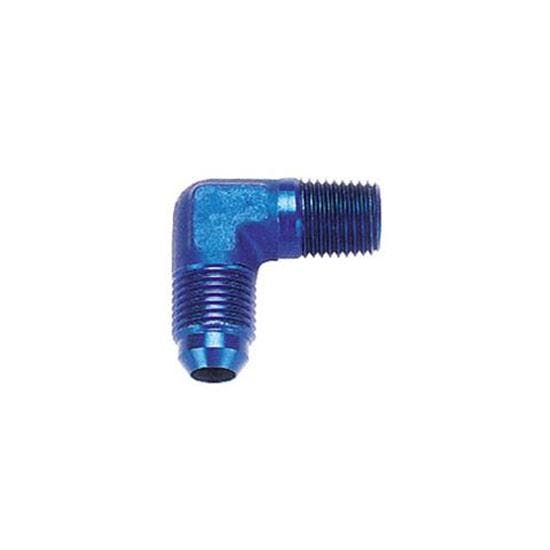

90 Degree Flare Adaptor, AN8 to 3/8 Inch NPT

• Pipe to 90° flare adaptor
• 37° AN

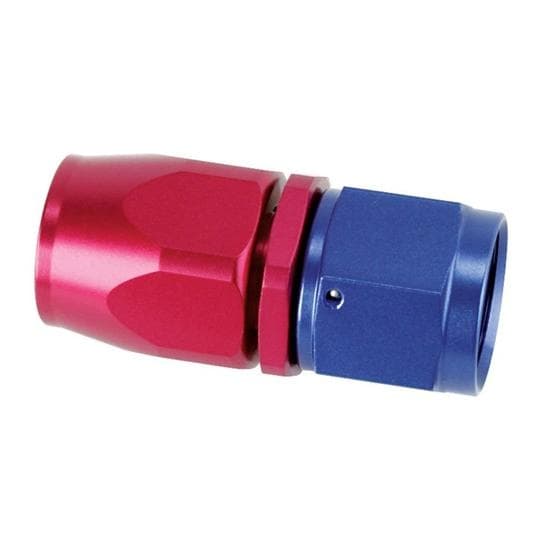

Full Flow Swivel Hose End Fitting, Straight, Red/Blue, -8 AN

• These compression-style fittings are easier to assemble and offer significantly better seal integrity than out-dated cutter-style fittings
• Manufactured from the highest quality aluminum and are then blue and red anodized to give them a new high performance look
• These full flow hose ends use a swivel head design, allowing the fitting to rotate as you are tightening or assembling the hose
• These fittings come in a straight design
• -8 AN female to pus-on style adapter
• Straight
• Lightweight aluminum hose ends are completely reusable, and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Works great with custom fuel lines
• Available in a Red/Blue corrosion resistant finish



Blue Straight AN8 Flare Adapter to 3/8 Inch Aluminum Pipe Fitting

• Straight flare adaptors connect 3/8" pipe to straight -8 AN fittings
• Precision machined to ensure precise thread engagement
• Lightweight aluminum fitting
• -8 AN to 3/8" aluminum pipe
• 37° sealing angle guarantees a positive seal at maximum operating pressures
• Available in Blue anodized finish for a custom look



Earls 991957ERL -8 AN Male to 7/8-20 Inch Male Carb Adapter, Blue

• Blue Anodized Aluminum
• Made in the USA
• Available for Any Plumbing Situation And Many Custom Applications

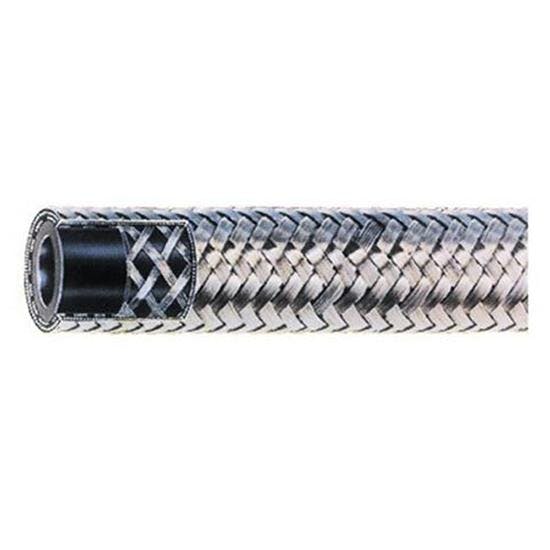

Stainless Steel Braided Hose Line, -8 AN, 6 Ft.

• This stainless steel braided hose can be used for low pressure applications like fuel, water, air or oil
• Works great as a fuel line for non ethanol blended gas

Note: This hose is >>NOT<< compatible with ETHANOL blended GAS including E85 ! ! !

Note: Not to be used for brake or power steering applications. Maximum operating pressure is 750 psi.
