Add to Cart
$542.99
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo

Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo

Universal Fit, 4-Barrel Carburetor Barrels, 4-Barrel Square Bore Carburetor Flange Type, Satin

0 Reviews | 0 Answered Questions
On Backorder
Ships FREE
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
X
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Edelbrock 1413 Performer 800 CFM Elect. Carb/Air/Fuel Kit,Pro-Flo
Zoomed In Image
Part # 9109379
$542.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
  • Delivers smooth throttle response throughout the power band
  • Edelbrock Pro-Flo air cleaner is stamped from high quality 18-gauge steel with a triple-chrome plated finish
  • Fuel line is designed to provide a clean and custom plumbing solution
  • All Edelbrock products are proudly made in the U.S.A

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Sold in Quantity:
Kit
Carburetor Barrels:
4-Barrel
Carburetor Flange Type:
4-Barrel Square Bore
Fuel Type:
Gasoline
Choke Type:
Electric
CFM Range:
800-899 CFM
CFM:
800 CFM
Finish:
Satin
Material Type:
Aluminum
Color:
Silver
Secondary Type:
Air Valve
Fuel Inlet Type:
Single
Gasket(s) Included:
Yes
Bolt Hole Pattern:
5.160" x 5.625"
Carburetor Height:
4.35"
Housing Style:
Solid Top
Filter Height:
2"
Net Height from Carb Flange:
3.5"
Overall Diameter:
10"
Raised Distance:
0.75"
Base Style:
Raised

Info

Top off your engine with these carburetor air/fuel installation kits.  Complete installation kit includes mounting hardware.

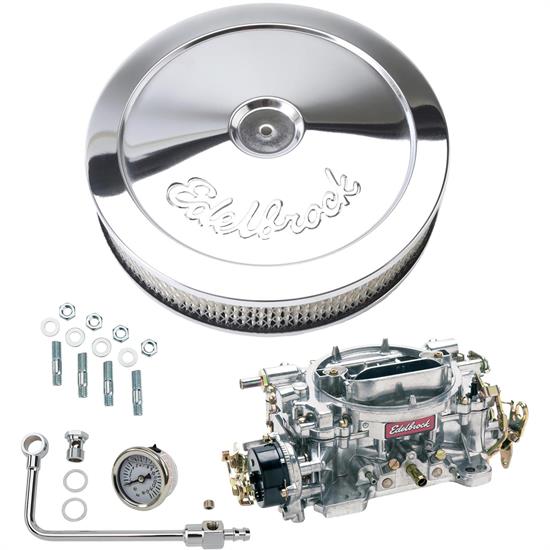

Kit Includes:

  • (1) Edelbrock 1413 Performer 4 Barrel Carburetor, 800 CFM, Electric Choke
  • (1) Edelbrock 1208 Pro-Flo Chrome Air Cleaner Assembly, Round, 2 Inch
  • (1) Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet
  • (1) 1-1/2" Liquid-Filled Fuel Pressure Gauge, 0-15 PSI
  • (1) Carburetor Stud Kit, 1-3/8 Inch



Edelbrock 1413 Performer 4 Barrel Carburetor, 800 CFM, Electric Choke

  • Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
  • Whether you need to replace an aging stock four barrel carb or are looking for a performance carb to top off your hot rod, the Edelbrock Performer Series four barrel carbs are the best choice for performance and value
  • All Edelbrock products are proudly made in the U.S.A
  • Designed and calibrated for maximum street performance with most Performer RPM, RPM Air-Gap and Torker II manifolds and with Performer manifolds on large cubic-inch engines
  • Includes an electric choke and detailed instructions
  • Ford/Mopar throttle adapter arms sold separately

Features:

  • Bolt-on-and-run performance right out of the box
  • Two-piece design means no gaskets below the fuel level for leak-free operation
  • Electric choke
  • Smooth throttle response throughout the power band
  • Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
  • Float levels are factory set; adjustments are rarely needed
  • Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
  • Lightweight all-aluminum body is compatible with gasohol and blended fuels
  • Includes both timed and full vacuum ports for ignition advance



Edelbrock 1208 Pro-Flo Chrome Air Cleaner Assembly, Round, 2 Inch

  • Stamped From 18-Gauge Steel
  • Triple-Chrome Plated
  • High-Quality Finish
  • Great Looks
  • Works With All 5.125 in. Carbs
  • Great for applications with low hood clearance
  • Base Knock-Outs For Use w/Crankcase Ventilation
  • Adapter For Crankcase Ventilation # 1205 not included, available separately
  • 10 Inch diameter
  • 2 Inch Filter Height



Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet

  • 3/8” fuel line kits have a clean look and are easy to install
  • Fuel inlets for Edelbrock carburetors provide a clean and custom plumbing solution
  • Drop-down design routes the fuel line on the right-hand (passenger side) of the carburetor below the linkage and choke housing
  • Includes a barbed end for a push-on 3/8" rubber fuel line
  • Manufactured of chrome plated steel
  • Include a 5/8" -20 threaded banjo bolt with gaskets



1-1/2" Liquid-Filled Fuel Pressure Gauge, 0-15 PSI

  • Appropriate fuel pressure is important for adjusting your fuel system to achieve optimal performance, which means an accurate pressure gauge is equally important
  • Built for superior precision
  • Liquid filled and available for carbureted and fuel injected applications
  • 0-15 PSI
  • 1-1/2" diameter



Carburetor Stud Kit, 1-3/8 Inch

  • Easy installation/removal of carb plates
  • Includes zinc plated steel studs, nuts and washers
  • 1-3/8" tall



Notes

Comes with:

  • Metering Jets - Primary .113, Secondary .101
  • Metering Rods -.071 x .047
  • Step-Up Spring - orange (5" Hg)



Charts

Edelbrock 800 CFM 4 Barrel Carburetor Installation Instructions(PDF)

Fuel Line Kit Instruction Sheet (PDF)

Installation Instructions (PDF)



Notes

3-1/4" from bottom of carb base to the base of the carb neck. Mounting bolt hole pattern is 5-1/8" by 5-5/8"

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Edelbrock 1413 Performer 4 Barrel Carburetor, 800 CFM, Electric Choke
    Qty x 1
  • Edelbrock 1208 Pro-Flo Chrome Air Cleaner Assembly, Round, 2 Inch
    Qty x 1
  • Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet
    Qty x 1
  • Liquid-Filled Fuel Pressure Gauge, 0-15 PSI
    Qty x 1
  • Carburetor Stud Kit, 1-3/8 Inch
    Qty x 1
