Edelbrock 1411 Performer 750CFM Carb w/Fuel Line/Adapter/Filter

#9109577

Edelbrock 1411 Performer 750CFM Carb w/Fuel Line/Adapter/Filter

Bolt-on-and-run performance right out of the box
Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
Routes the fuel line on the right-hand (passenger side) of the carburetor below the linkage and choke housing

$625.99

In Stock

$634.84

Save $8.85

Quantity

Need Help? Call to Order

Add to a list

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 750 CFM CFM

Bolt-on-and-run performance right out of the box
Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
Routes the fuel line on the right-hand (passenger side) of the carburetor below the linkage and choke housing
Includes zinc plated steel studs, nuts and washers
Carburetor is designed and calibrated for optimum street performance

Comes as a Kit

View Kit Components

See more details

Key Specs

Brand	Edelbrock
CFM	750 CFM
Finish	Satin
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

Kit Includes:

(1) Edelbrock 1411 Performer 750 CFM 4 Barrel Carburetor, Electric Choke
(1) Edelbrock 2696 Performer Series Carburetor Adapter, 0.850 Inch
(1) 10 Inch Chrome Air Cleaner, 4 Barrel Carb
(1) Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet

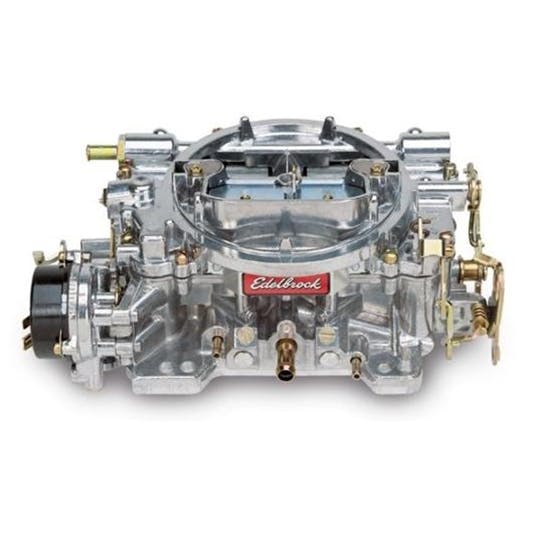

Edelbrock 1411 Performer 750 CFM 4 Barrel Carburetor, Electric Choke

Electric Choke
Bolt-on-and-run performance right out of the box
Smooth throttle response throughout the power band
Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
Float levels are factory set; adjustments are rarely needed
Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
Two-piece design means no gaskets below the fuel level for leak-free operation
Lightweight all-aluminum body is compatible with gasohol and blended fuels
Includes both timed and full vacuum ports for ignition advance

Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet

-6 AN female inlet will accept an Edelbrock fuel line kit for a complete fuel-pump to carburetor plumbing solution
They are manufactured of chrome plated steel and include a 5/8" -20 threaded banjo bolt with gaskets

Edelbrock 2696 Performer Series Carburetor Adapter, 0.850 Inch

Mounts Edelbrock Carbs to Spreadbore Intakes
0.850 in. Thick

10 Inch Chrome Air Cleaner, 4 Barrel Carb

Chrome plated steel
10" diameter and 2" tall filter element
3-1/4" assembled height not including hold down nut
Fits 4 barrel carbs with 5-1/8" neck
0.625" tube stem diameter
includes stud and wing nut

Charts

Edelbrock 750 CFM 4 Barrel Carburetor Installation Instructions(PDF)

Fuel Line Kit Instruction Sheet (PDF)

Installation Instructions (PDF)

Guides & Documents

Carburetor/Air Cleaner Kits Installation Instructions (9109577)

Determining the Best Performance Carburetor For Your Application

Carburetors Installation Instructions (3251411)

Carburetor Fuel Logs Installation Instructions (3258126)

Carburetor Adapter Plates Installation Instructions (3252696)

Specifications

KEY SPECS
Brand	Edelbrock
CFM	750 CFM
Finish	Satin
Material Type	Aluminum

GENERAL
Sold in Quantity	Kit
Carburetor Barrels	4-Barrel
Carburetor Flange Type	4-Barrel Spread Bore
Fuel Type	Gasoline
Choke Type	Electric
Color	Silver
Gasket(s) Included	Yes
