Edelbrock 1407 Performer 750CFM Carb w/8126 Fuel Line/Adapter

#9109576

Edelbrock 1407 Performer 750CFM Carb w/8126 Fuel Line/Adapter

Bolt-on-and-run performance right out of the box
Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
Routes the fuel line on the right-hand (passenger side) of the carburetor below the linkage and choke housing

$545.99

In Stock

$553.89

Save $7.90

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 750 CFM CFM

Bolt-on-and-run performance right out of the box
Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
Routes the fuel line on the right-hand (passenger side) of the carburetor below the linkage and choke housing
Includes zinc plated steel studs, nuts and washers
Carburetor is designed and calibrated for optimum street performance

Comes as a Kit

View Kit Components

See more details

Key Specs

Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	Manual
CFM Range	700-799 CFM
CFM	750 CFM

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

Kit Includes:

(1) Edelbrock 1407 Performer 4 Barrel Carburetor, 750 CFM, Manual Choke, Manual Choke
(1) Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet
(1) Holley/Edelbrock to Rochester 4G 4-Jet Carburetor Adapter Plate

Edelbrock 1407 Performer 4 Barrel Carburetor, 750 CFM, Manual Choke, Manual Choke

Manual Choke
Bolt-on-and-run performance right out of the box
Smooth throttle response throughout the power band
Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
Float levels are factory set; adjustments are rarely needed
Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
Two-piece design means no gaskets below the fuel level for leak-free operation
Lightweight all-aluminum body is compatible with gasohol and blended fuels
Includes both timed and full vacuum ports for ignition advance

Edelbrock 8126 Performer Carb Fuel Line Kit, 3/8 Inch Hose Barb Inlet

-6 AN female inlet will accept an Edelbrock fuel line kit for a complete fuel-pump to carburetor plumbing solution
They are manufactured of chrome plated steel and include a 5/8" -20 threaded banjo bolt with gaskets

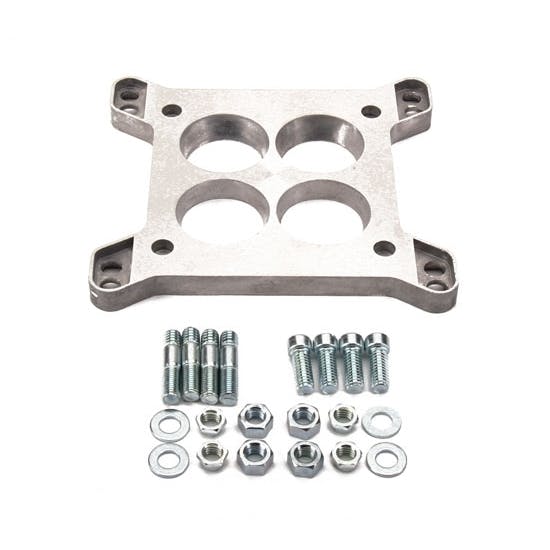

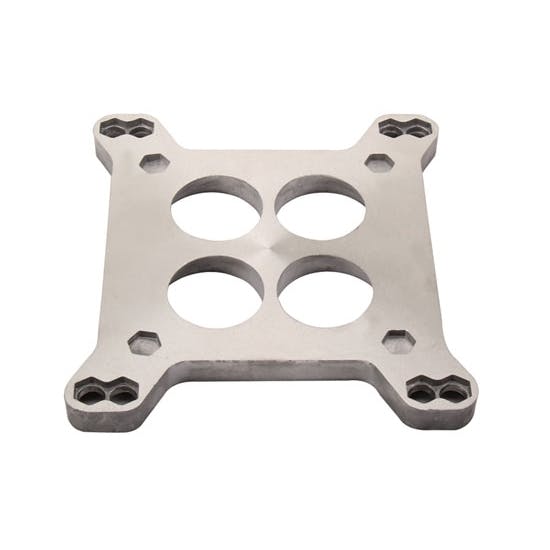

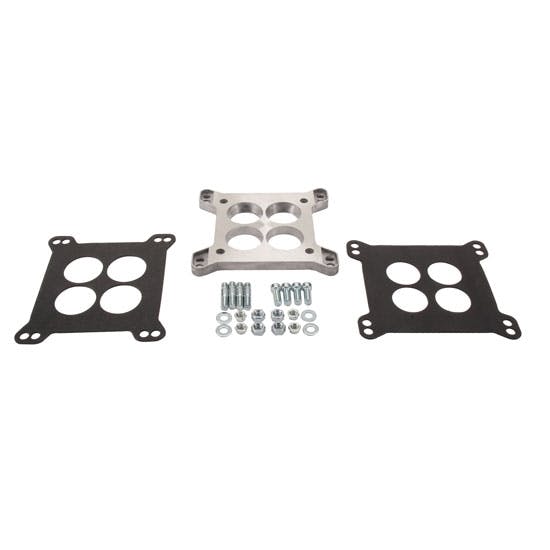

Holley/Edelbrock to Rochester 4G 4-Jet Carburetor Adapter Plate

Adapts Holley/Edelbrock carb to Rochester 4G intake
Adapts Rochester 4G carb to medium/large base intake
7/16" thick
4 tapered-hole ports

Charts

Edelbrock 750 CFM 4 Barrel Carburetor Installation Instructions (PDF)

Fuel Line Kit Instruction Sheet (PDF)

Guides & Documents

Carburetors Installation Instructions (9109576)

Determining the Best Performance Carburetor For Your Application

Carburetors Installation Instructions (3251407)

Carburetor Fuel Logs Installation Instructions (3258126)

Specifications

KEY SPECS
Brand	Edelbrock
Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	Manual
CFM Range	700-799 CFM
CFM	750 CFM
Carburetor Flange Type	4-Barrel Square Bore
Finish	Satin
Material Type	Aluminum
Color	Silver
Secondary Type	Air Valve
Fuel Inlet Type	Single
Gasket(s) Included	Yes
New or Remanufactured	New
Throttle Linkage Type	Universal
Supercharged Application	No

GENERAL
Sold in Quantity	Kit
