Edelbrock 1406 Performer 600 Electric Choke Carb w/Air Cleaner

Top off your engine in terms of performance and style with this Edelbrock carburetor/air cleaner kit.

Kit Includes:

• (1) Edelbrock 1406 Performer 600 CFM 4 Barrel Carburetor
• (1) Edelbrock 1208 Pro-Flo Chrome Air Cleaner Assembly

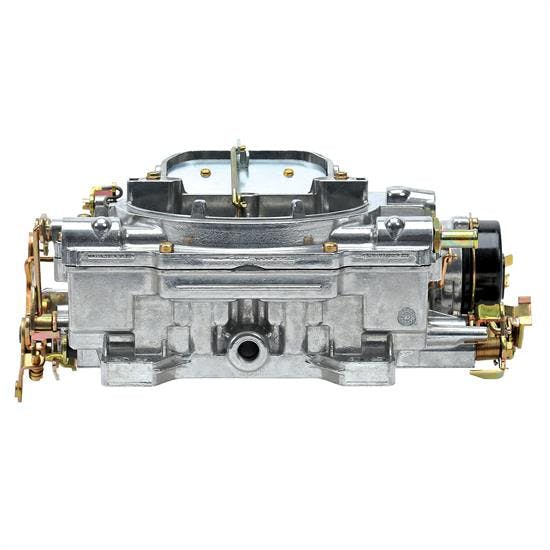

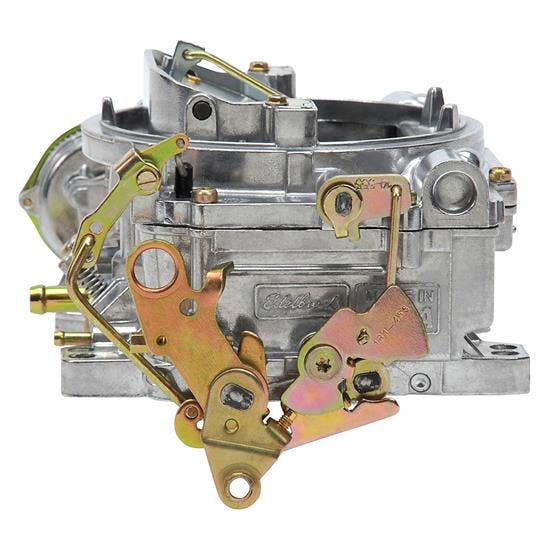

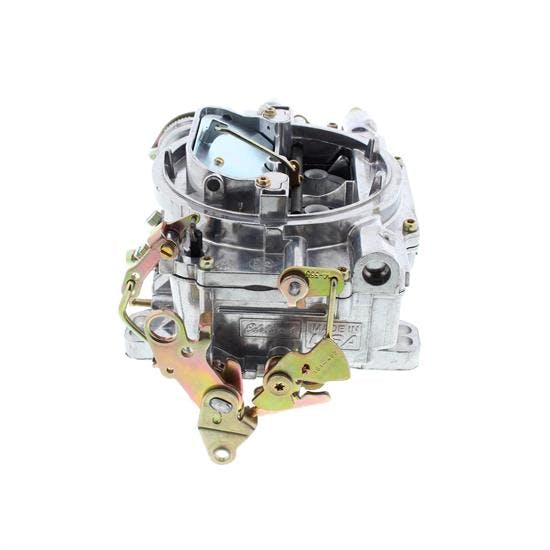

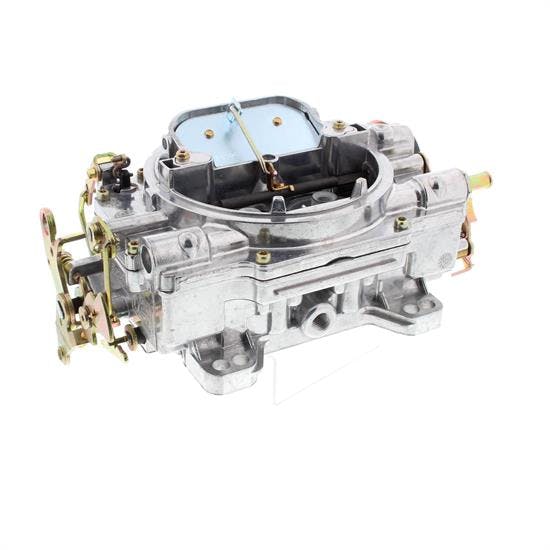

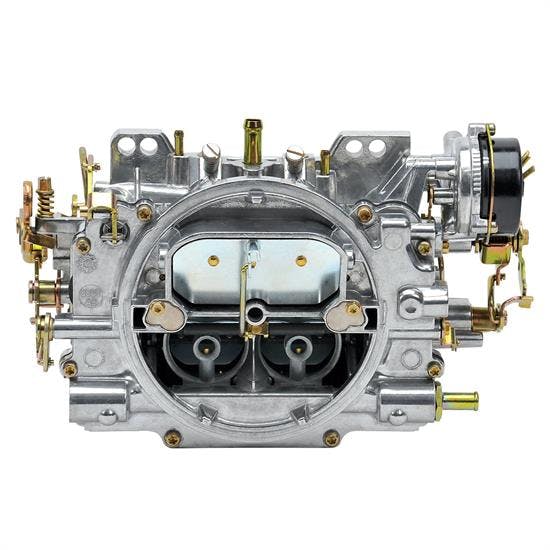

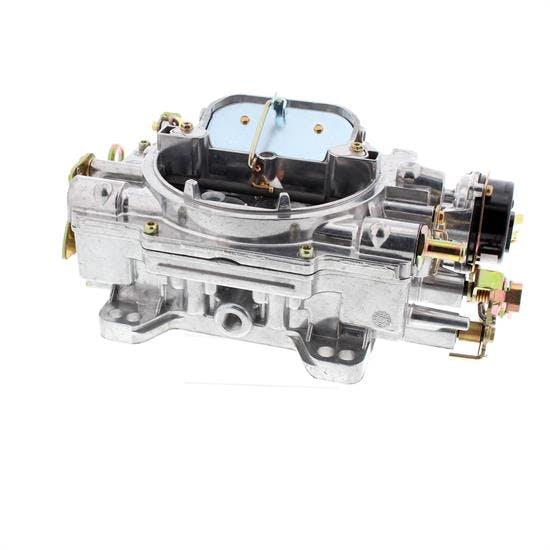

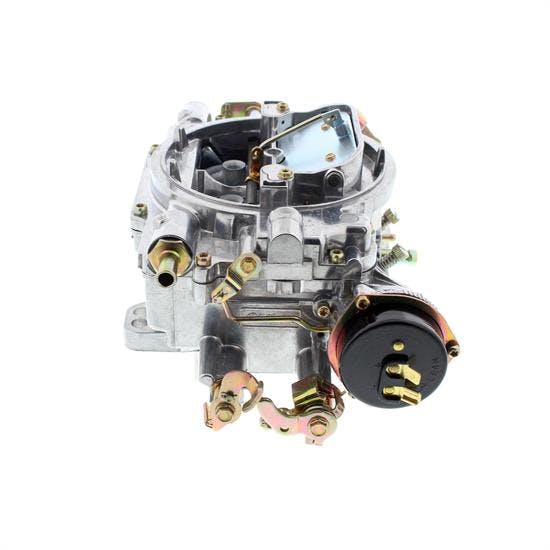

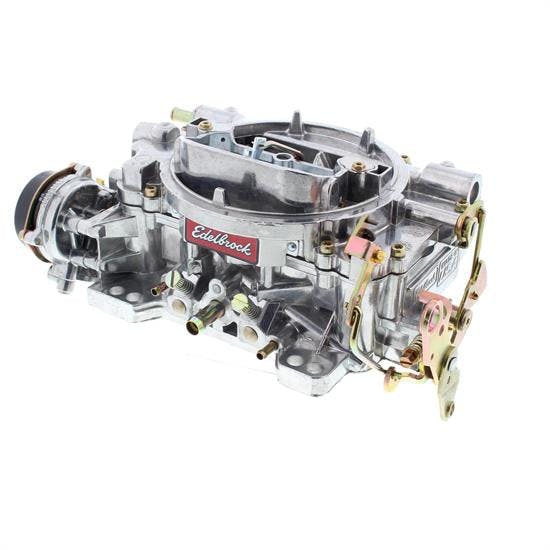

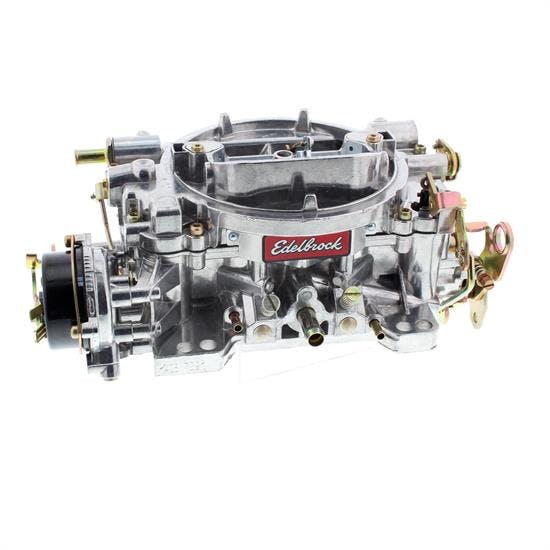

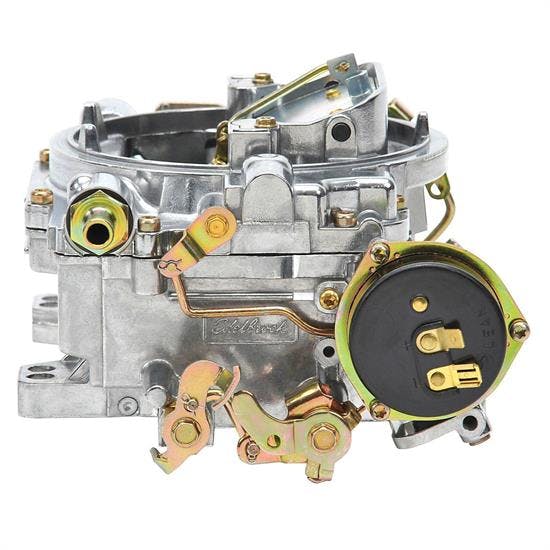

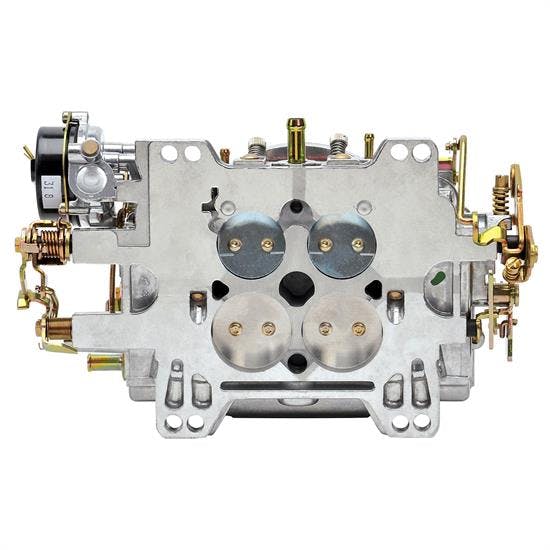

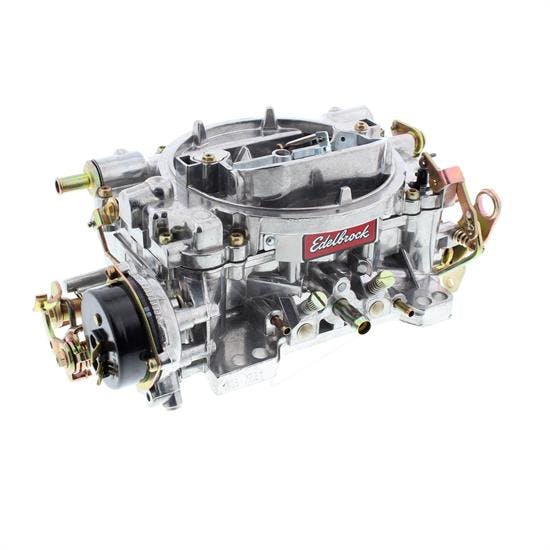

Edelbrock 1406 Performer 600 CFM 4 Barrel Carburetor

• Easy to tune with great driveability
• 600 CFM
• 4 barrel carb
• Electric choke
• Calibrated for fuel economy
• Made in the U.S.A
• Bolt-on-and-run performance right out of the box
• Smooth throttle response throughout the power band
• Lightweight all-aluminum body is compatible with gasohol and blended fuels
• Two-piece design means no gaskets below the fuel level for leak-free operation
• Ford/Mopar arms sold separately



• Designed for small-block and small displacement big-block engines
• Recommended only for stock to Performer level applications
• Includes both timed and full vacuum ports for ignition advance
• Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
• Float levels are factory set; adjustments are rarely needed
• Change jets, adjust floats & replace needles/seats without draining fuel or removing carb



• Comes with:
  • Metering Jets - Primary .098, Secondary .095
  • Metering Rods - .075 x .047
  • Step-Up Spring - yellow (4" Hg)

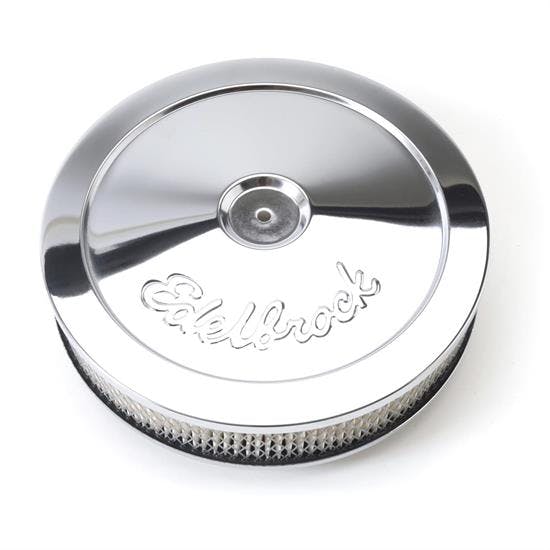

Edelbrock 1208 Pro-Flo Chrome Air Cleaner Assembly

• Stamped From 18-Gauge Steel - housing
• Triple-Chrome Plated
• High-Quality Finish
• Great Looks
• Works With All 5.125" (5-1/8") Carbs
• Net Height from Carb Flange: 3.5"
• Base Knock-Outs For Use w/Crankcase Ventilation
• Adapter For Crankcase Ventilation # 1205 not included, available separately
• 3/4" raised base style
• Round 10 Inch diameter
• 2 Inch Filter Height - white paper filter
• Hardware included



Edelbrock 1406 Performer 600 CFM 4 Barrel Carburetor (more details)

Edelbrock Performer Series 4 barrel carbs have proven themselves to be easy to tune with great drivability. Whether you need to replace an aging stock carb or are looking for a performance carb to top off your hot rod, this Edelbrock carb is the best choice for performance and value. All Edelbrock products are proudly made in the U.S.A.

CALIBRATED FOR FUEL ECONOMY
Designed for small-block and small displacement big-block engines, this four barrel carb is recommended only for stock to Performer level applications. They are not recommended for use on RPM or Torker II intake manifolds. Match with an Edelbrock Performer or Performer EPS manifold and other brands of similar design. Calibrated 2% leaner than #1405. Includes both timed and full vacuum ports for ignition advance. Comes with: Metering Jets Primary .098, Secondary .095; Metering Rods .075 x .047; Step-Up Spring yellow (4" Hg). Includes an electric choke and detailed instructions. Ford/Mopar throttle adapter arms sold separately.



Edelbrock 1208 Pro-Flo Chrome Air Cleaner Assembly (more details)

Top off your engine with a good looking Pro-Flo chrome air cleaner. The Edelbrock signature and styling coordinate beautifully with Edelbrock Signature Series valve covers. These air cleaners are stamped from a high quality 18-gauge steel and are great for applications with low hood clearance.
