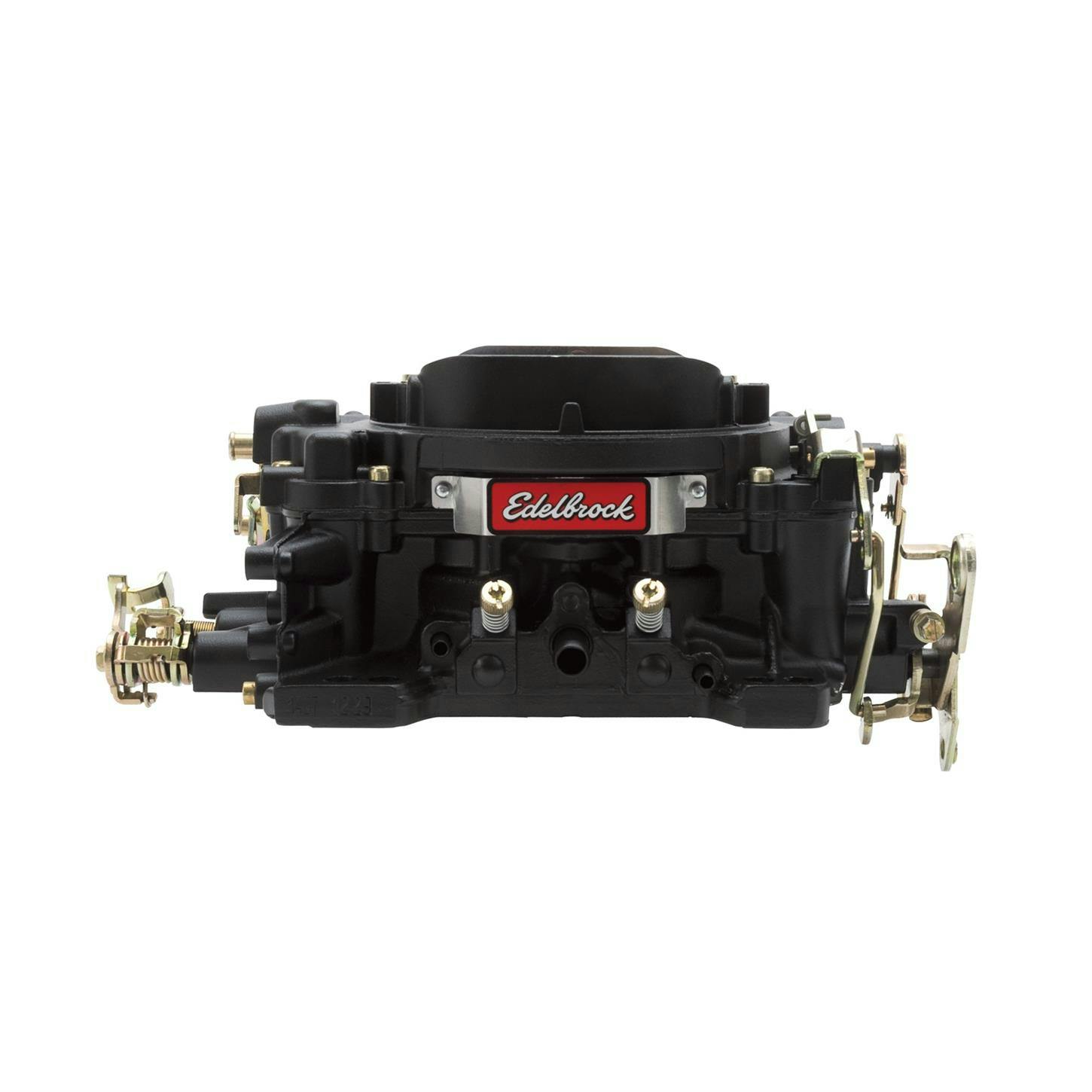

Edelbrock 14053 Performer 600 CFM Manual Carburetor/Stud Kit

#9109383

Edelbrock 14053 Performer 600 CFM Manual Carburetor/Stud Kit

Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
Bolt-on-and-run performance right out of the box
Smooth throttle response throughout the power band

$502.99

In Stock

$509.84

Save $6.85

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 600 CFM CFM

Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
Bolt-on-and-run performance right out of the box
Smooth throttle response throughout the power band
Includes 1-3/8" zinc plated steel studs, nuts and washers
All Edelbrock products are proudly made in the U.S.A

Comes as a Kit

View Kit Components

See more details

Key Specs

Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	Manual
CFM Range	600-699 CFM
CFM	600 CFM

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 14053 Details

Top off your engine with these carburetor installation kits with mounting hardware.

Kit Includes:

(1) Edelbrock 14053 Performer 600 CFM 4 Barrel Carb, Manual Choke, Black
(1) Carburetor Stud Kit, 1-3/8 Inch

Edelbrock 14053 Performer 600 CFM 4 Barrel Carb, Manual Choke, Black

Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
Whether you need to replace an aging stock four barrel carb or are looking for a performance carb to top off your hot rod, the Edelbrock Performer Series four barrel carbs are the best choice for performance and value
All Edelbrock products are proudly made in the U.S.A
These Performer Series carburetors with black powder coated finish are available in 600 cfm with a manual choke and are designed and calibrated for optimum street performance in small-block and some big-block engines
They feature gold iridited linkage and hardware that complements the new finish
When matched with Edelbrock's black powder coated intake manifolds, water pumps and accessories, they give any engine bay a custom appearance
This new finish will also give these carburetors a durable protective layer that will keep them looking great for many years
All Edelbrock Performer Series carburetors feature factory set float levels that rarely need adjustment, allowing them to run right-out-of-the-box
They are constructed of a two-piece design with the gasket above the fuel level for a leak-free operation
Includes manual choke and detailed instructions
Ford/Mopar throttle adapter arms sold separately

Features:

Manual choke
Bolt-on-and-run performance right out of the box
Smooth throttle response throughout the power band
Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
Float levels are factory set; adjustments are rarely needed
Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
Two-piece design means no gaskets below the fuel level for leak-free operation
Lightweight all-aluminum body is compatible with gasohol and blended fuels
Includes both timed and full vacuum ports for ignition advance

Carburetor Stud Kit, 1-3/8 Inch

Easy installation/removal of carb plates
Includes zinc plated steel studs, nuts and washers
1-3/8" tall

Charts

Edelbrock 600 CFM 4 Barrel Carburetor Installation Instructions (PDF)

Guides & Documents

Carburetors Installation Instructions (9109383)

Determining the Best Performance Carburetor For Your Application

Carburetors Installation Instructions (32514053)

Edelbrock 14053 Specifications

KEY SPECS
MFG. Part #	14053
Brand	Edelbrock
Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	Manual
CFM Range	600-699 CFM
CFM	600 CFM
Carburetor Flange Type	4-Barrel Square Bore
Finish	Satin
Material Type	Aluminum
Color	Black
Secondary Type	Mechanical
Fuel Inlet Type	Single
Gasket(s) Included	Yes
New or Remanufactured	New
Throttle Linkage Type	Universal
Supercharged Application	No

GENERAL
Bolt Hole Pattern	5.160" x 5.625"
Sold in Quantity	Kit
