Edelbrock 1404 Performer 500 CFM Manual Carb/Air/Fuel Kit,BLK FIN

#9109357

Edelbrock 1404 Performer 500 CFM Manual Carb/Air/Fuel Kit,BLK FIN

Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
Bolt-on-and-run performance right out of the box
Black full finned polished aluminum air cleaner top with 5" mounting stud

$666.99

In Stock

$676.77

Save $9.78

Quantity

Need Help? Call to Order

Add to a list

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 500 CFM CFM

Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
Bolt-on-and-run performance right out of the box
Black full finned polished aluminum air cleaner top with 5" mounting stud
Fuel line is designed to provide a clean and custom plumbing solution
All Edelbrock products are proudly made in the U.S.A

Comes as a Kit

View Kit Components

See more details

Key Specs

Brand	Edelbrock
CFM	500 CFM
Finish	Satin
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

Top off your engine with these carburetor air/fuel installation kits. Complete installation kit includes mounting hardware.

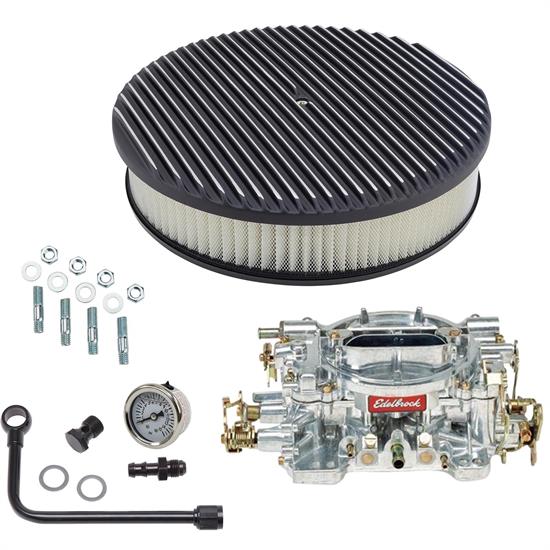

Kit Includes:

(1) Edelbrock 1404 Performer 500 CFM 4 Barrel Carburetor, Manual Choke
(1) 14 Inch Fully Finned Round Air Cleaner Set, Black Aluminum
(1) Edelbrock 81263 Fuel Line Kit for Performer/Thunder Series, 3/8" Barb
(1) 1-1/2" Liquid-Filled Fuel Pressure Gauge, 0-15 PSI
(1) Carburetor Stud Kit, 1-3/8 Inch

Edelbrock 1404 Performer 500 CFM 4 Barrel Carburetor, Manual Choke

Edelbrock Performer Series carbs have proven themselves to be easy to tune with great drivability
Whether you need to replace an aging stock four barrel carb or are looking for a performance carb to top off your hot rod, the Edelbrock Performer Series four barrel carbs are the best choice for performance and value
All Edelbrock products are proudly made in the U.S.A
Designed and calibrated for smaller cubic-inch engines, so use this Edelbrock carb for Chevy 305 and Ford 302 (or smaller) engines
Match with an Edelbrock Performer or Performer EPS manifold and other brands of similar design
This 4 barrel carb includes an manual choke and detailed instructions
Ford/Mopar throttle adapter arms sold separately

Features:

Manual choke
Bolt-on-and-run performance right out of the box
Smooth throttle response throughout the power band
Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
Float levels are factory set; adjustments are rarely needed
Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
Two-piece design means no gaskets below the fuel level for leak-free operation
Lightweight all-aluminum body is compatible with gasohol and blended fuels
Includes both timed and full vacuum ports for ignition advance

14 Inch Fully Finned Round Air Cleaner Set, Black Aluminum

Fits 5-1/8" carb neck
14" diameter
3" tall paper filter
Black polished aluminum air cleaner
Features a full finned top
5" mounting stud included
Carburetor base provides a 1" drop from the neck of the carburetor

Edelbrock 81263 Fuel Line Kit for Performer/Thunder Series, 3/8" Barb

For Performer And Thunder Series Carburetors
Provides a clean and custom plumbing solution
Single Feed
Without Filter
3/8" Barbed Inlet
Black steel

1-1/2" Liquid-Filled Fuel Pressure Gauge, 0-15 PSI

Appropriate fuel pressure is important for adjusting your fuel system to achieve optimal performance, which means an accurate pressure gauge is equally important
Built for superior precision
Liquid filled and available for carbureted and fuel injected applications
0-15 PSI
1-1/2" diameter

Carburetor Stud Kit, 1-3/8 Inch

Easy installation/removal of carb plates
Includes zinc plated steel studs, nuts and washers
1-3/8" tall

Charts

Edelbrock 500 CFM 4 Barrel Carburetor Installation Instructions (PDF)

Guides & Documents

Carburetor/Air Cleaner Kits Installation Instructions (9109357)

Determining the Best Performance Carburetor For Your Application

Carburetors Installation Instructions (3251404)

Specifications

KEY SPECS
Brand	Edelbrock
CFM	500 CFM
Finish	Satin
Material Type	Aluminum

GENERAL
Notes	3-1/4" from bottom of carb base to the base of the carb neck. Mounting bolt hole pattern is 5-1/8" by 5-5/8"
Sold in Quantity	Kit
Carburetor Barrels	4-Barrel
Carburetor Flange Type	4-Barrel Square Bore
Fuel Type	Gasoline
Choke Type	Manual
CFM Range	500-599 CFM
Color	Silver
Fuel Inlet Type	Single
Gasket(s) Included	Yes
Bolt Hole Pattern	5.160" x 5.625"
Carburetor Height	4.25"
Housing Style	Solid Top
Filter Height	3"
Overall Diameter	14"
