Economy Hard Line Tool Kit, Cut/Bend/Flare, 3/16 Inch

#9109790

Economy Hard Line Tool Kit, Cut/Bend/Flare, 3/16 Inch

Name: Economy Hard Line Tool Kit, Cut/Bend/Flare, 3/16 Inch
Brand: Speedway Motors
SKU: 9109790
Price: 201.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

The Economy Hard Line Tool Kit works with OE steel, aluminum, or copper tubing for brake systems, fuel systems, and more. It is not recommended to use with stainless steel
Handheld Tubing Straightener features 16 steel rollers inside the tool that allows for the line to be easily pushed/pulled through, removing any bend/curvature from the hard line

$201.99

/kit

In Stock

$205.45

Save $3.46

Quantity

Need Help? Call to Order

Add to a list

Product Summary

0.1875" Tube O.D.

The Economy Hard Line Tool Kit works with OE steel, aluminum, or copper tubing for brake systems, fuel systems, and more. It is not recommended to use with stainless steel
Handheld Tubing Straightener features 16 steel rollers inside the tool that allows for the line to be easily pushed/pulled through, removing any bend/curvature from the hard line
Mini Tubing Bender is compact for limited accessiblilty applications
45-Deg Double Flare Tool lightweight and easy to use on the car or bench vise
37-Deg Flare Tool simple and easy to use and makes a clean, accurate flare every time

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9109790
Brand	Speedway Motors
Tube O.D.	0.1875"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9109790 Details

Quickly get to work flaring brake lines or other 3/16 inch hard lines with our Economy Hard Line Tool Kit. This includsive kit has our tubing straightener to start your tubing on the straight and narrow. We have included both the SAE double flare 45-degree brake flaring tool and the 37-degree AN flaring tool so you can get professional flares for both fitting types. In the kit we have Titan Tools Mini Tubing Bender to aim your tubing in exaclty the direction you need it to go, and we have our tubing cutter to trim it to the correct length for your project.

The Economy Hard Line Tool Kit works with OE steel, aluminum, or copper tubing for brake systems, fuel systems, and more. It is not recommended to use with stainless steel.

Handheld Tubing Straightener features 16 steel rollers inside the tool that allows for the line to be easily pushed/pulled through, removing any bend/curvature from the hard line
Mini Tubing Bender is compact for limited accessiblilty applications
45-Deg Double Flare Tool lightweight and easy to use on the car or bench vise
37-Deg Flare Tool simple and easy to use and makes a clean, accurate flare every time

Hard Line Tool Kit Contents

3/16 Inch Handheld Tubing Straightener
Titan Tools Mini Tubing Bender
Titan Tools Double Flaring Brake Line Tool, 45-Deg
AN Flare Tubing Flare Tool, 37-Deg
1/8" to 1-1/8" Tubing Cutter

Learn more about flaring lines for our automotive fittings by reading our tech article. The Principles of Automotive Fittings.

How to use the Handheld Tubing Straightener:

Step One - Roll out short length of hard line from roll

Step Two - Insert hard line into and then through the internal rollers that are inside the tool

Step Three - Pull/Push the hard line through the tool and over the length of the hard line. This will straighten the hard line by removing any bends or curvature from the line.

Charts

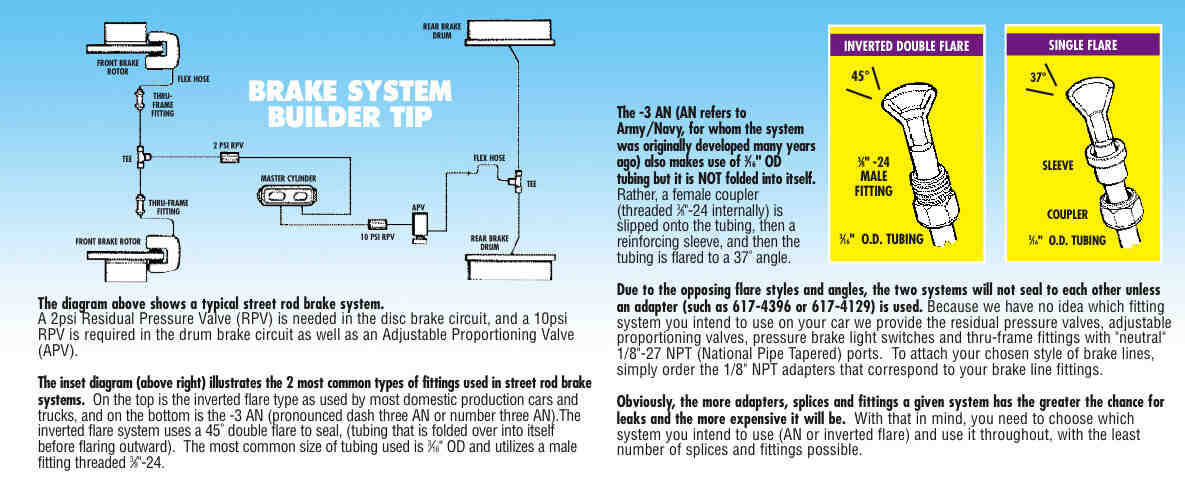

Brake System Builder's Tip (JPG)

Guides & Documents

Tube Benders Technical Information (9109790)

Hard Line Flaring Tools Technical Information (91089520)

Speedway Motors 9109790 Specifications

KEY SPECS
MFG. Part #	9109790
Brand	Speedway Motors
Tube O.D.	0.1875"

GENERAL
Sold in Quantity	Kit
