#425824508ERL

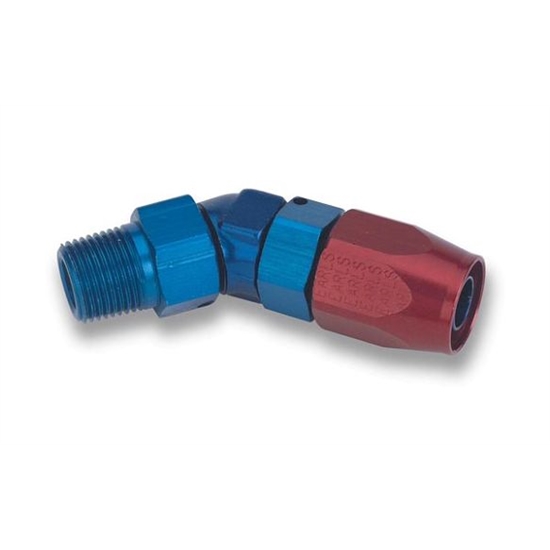

Earls 824508ERL 45 Degree Swivel 3/8 Inch NPT Male to -8 AN Hose
$49.53
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 8th.
Add to a list
Share
Product Summary
Universal Fit, -8 AN Fitting Hose Size, 45 degree Angle
See more details
Key Specs
| MFG. Part # | 824508ERL |
| Angle | 45 degree |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Blue |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEarls 824508ERL Details
Earls 824508ERL Details
This unique line of hose ends has been developed to allow the hose end to be threaded directly into a female port without the bulk and complication of an adapter fitting. In all cases the coupler can be rotated independently of the hose end, this allows the coupler to be threaded into the part while the hose and hose end are held stationary.
- Stainless Retention Pins Allow 360° Adjustment After Installation
- Dual Plane Anti-Seepage Seal
- Precision Machined
- Low Progile Design
- Nipple and Cutter Design Assures Leak Free Performance
- Aerospace Proven Design & Materials
Charts
Guides & Documents
Earls 824508ERL Specifications
Earls 824508ERL Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 824508ERL |
| Brand | Earls |
| Angle | 45 degree |
| Material Type | Aluminum |
| Finish | Anodized |
| Color | Red/Blue |
| GENERAL | |
| Speedway Motors Catalog Part # | 425-824508ERL |
| Fitting Hose Size | -8 AN |
| Fitting Style | Swivel |
| Fitting End A | 3/8" NPT Male |
| Fitting End B | -8 AN Hose |
| Reusable | Yes |
| Hose Style | Earl's Perform-O-Flex, Pro-Lite 350, Pro-Lite Ultra & Auto-Flex |
| GTIN Code | 021432431798 |
| Sold in Quantity | Each |
