Earls 230620ERL HP Billet Fuel filter, 40 micron, 260 GPH

-8%

Earls 230620ERL HP Billet Fuel filter, 40 micron, 260 GPH
Earls

|

#425230620ERL

Earls 230620ERL HP Billet Fuel filter, 40 micron, 260 GPH

$169.95

/each

Factory Shipped

$184.95

Save $15.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Gasoline | Diesel | E85 Fuel Type

    See more details

    Key Specs

    Filter MaterialStainless Steel Mesh
    Microns40
    Fuel Filter StyleInline
    Inlet Fitting-12 AN O-Ring Female
    Outlet Fitting-12 AN O-Ring Female
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Earls 230620ERL Details

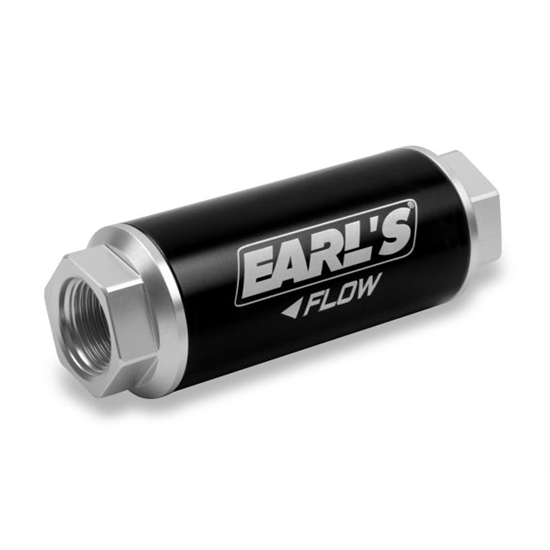

    Earl's new HP Billet Fuel Filters are part of the complete HP Fuel Systems product line. HP Billet fuel filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks. Replacement elements are available.

    • 260 GPH filters feature female -12AN O-ring inlet and outlet
    • 40 Micron filters are recommended for use as a post filter in carbureted systems
    • 40 micron filters feature a stainless steel woven mesh element
    • Black anodized body and clear anodized end caps for corrosion resistance and good looks
    • 175 GPH filter measures 5.5 long and 2 diameter

    Application

    • 10 micron filters are recommended for use as a post-pump filter in EFI systems
    • 40 micron filters are recommended for use as a post-pump filter in carbureted systems
    • 100 micron filters are recommended for use as a pre-pump filter in carbureted and EFI systems

    Earls 230620ERL Specifications

    KEY SPECS
    MFG. Part #230620ERL
    BrandEarls
    Filter MaterialStainless Steel Mesh
    Microns40
    Fuel Filter StyleInline
    Inlet Fitting-12 AN O-Ring Female
    Outlet Fitting-12 AN O-Ring Female
    Housing MaterialAluminum
    Housing FinishBlack and Clear Anodized
    GENERAL
    Fuel TypeGasoline | Diesel | E85
    Flow Rating260 GPH
    Pressure Rating100 psi
    Overall Length5.50"
    Overall Diameter2.00"
    Filter TypePost Filter
    GTIN Code090127669969
    Sold in QuantityEach
