Disc Brake Kit for Total Performance® Spindles, 5 x 4-1/2 BP
Disc Brake Kit for Total Performance® Spindles, 5 x 4-1/2 BP
Universal Fit, Front Position, 5 on 4.5" Bolt Pattern, 11 Inch Rotor Diameter, Natural, Natural
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Disc Brake Kit for Total Performance® Spindles, 5 x 4-1/2 BP
X
Part # 91031999
$279.99
kit
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
- Easily installs 11" vented rotors and 69-77 midsize GM single piston calipers to your classic Total Performance® T-bucket spindles

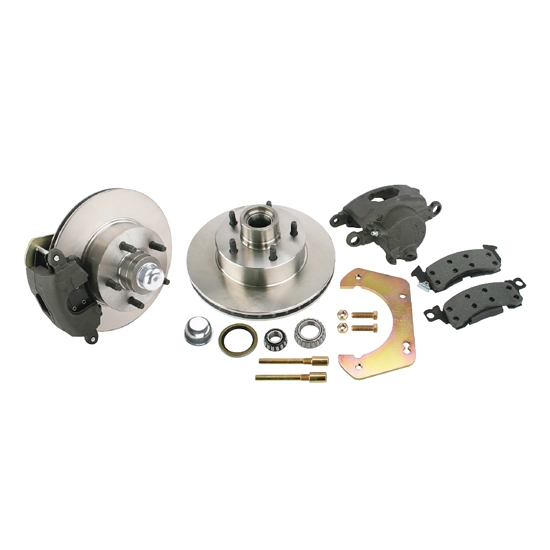

- Kit comes complete with new rotors and semi-metallic pads, new bearings and seals, new caliper bolts and rebuilt calipers, along with caliper mounting brackets, bushings, and hardware
- Has a 5 on 4-1/2" Ford/Mopar style wheel bolt pattern with 1/2" Fine studs
- The lower bolt hole in the supplied bracket will require you to drill it out from 7/16" to 1/2"
- Rotor # 910-31067, Brake Pads # 919-3382, Dust Caps # 550-2484
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Next
Details
Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
One
Caliper Finish:
Natural
Color:
Natural
Parking Brake Provision:
No
MFG. Part #:
91031999
Rotor Thickness:
1.00"
Rotor Shape:
Round
Stud Diameter:
.50"
Stud Length:
1.50"
Thread Pitch:
1/2"-20
Centerline of Holes:
7.00"
Finish:
Natural
Hardware Included:
Yes
Sold in Quantity:
Kit
Notes:
Includes rotors, bearings and seals, calipers, pads, and caliper brackets.
Rotor Material Type:
Cast Iron
Front Rotor Included:
Yes
Front Rotor Diameter:
11 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
1
Front Caliper Finish:
Natural
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Info
Easily installs 11" vented rotors and 69-77 midsize GM single piston calipers to your classic Total Performance® T-bucket spindles. Kit comes complete with new rotors and semi-metallic pads, new bearings and seals, new caliper bolts and rebuilt calipers, along with caliper mounting brackets, bushings, and hardware.
Has a 5 on 4-1/2" Ford/Mopar style wheel bolt pattern with 1/2" Fine studs.
Spindle Guide (Link)
Item Details
5 on 4-1/2" Ford/Mopar bolt pattern
Notes
- The lower bolt hole in the supplied bracket will require you to drill it out from 7/16" to 1/2".
- Use these replacement parts:
- Rotor # 910-31067
- Brake Pads # 919-3382
- Dust Caps # 550-2484
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
Related Products
-
Complete Disc Brake Kit 1937-48 Ford, 5 on 5-1/2 BC$356.99 -
Brake Kit: 1969-77 GM Caliper to Early Ford Spindles, Chevy B-P$249.99
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
11 Inch GM Brake Rotor with Ford Bolt PatternPart # 91031067Qty x 2
-
Replacement Disc Brake Bearing Adapter for Early Ford SpindlePart # 91009301Qty x 2
-
Replacement Axle/Hub Grease Bearing Seal, 1.875 x 2.562 x .313 InchPart # 912S18562Qty x 2
-
Inner Bearing Cup for 11" GM RotorPart # 912TL68110Qty x 2
-
Replacement Tapered Inner Wheel Bearing ConePart # 912TL68149Qty x 2
-
Wheel Bearing Outer Cone, 3/4", SteelPart # 912TLM11949Qty x 2
-
IMCA 1969-77 Midsize Standard Stock GM Caliper, LHPart # 91031035-LQty x 1
-
IMCA 1969-77 Midsize Standard Stock GM Caliper, RHPart # 91031035-RQty x 1
-
Speedway Soft Street Organic Brake Pads GM Mid-Size 1969-1977Part # 9193382Qty x 1
-
Speedway GM Brake Caliper Slider Slide BoltPart # 8352300542Qty x 4
-
Wheel Dust Caps, Plain, 2.085 Hub I.D.Part # 5502487Qty x 1
-
Bracket Only Int GM - E ChevPart # 91631916-1Qty x 2
-
Bolt Kit 910-31993 or 910-31999Part # 91031999-2Qty x 1
