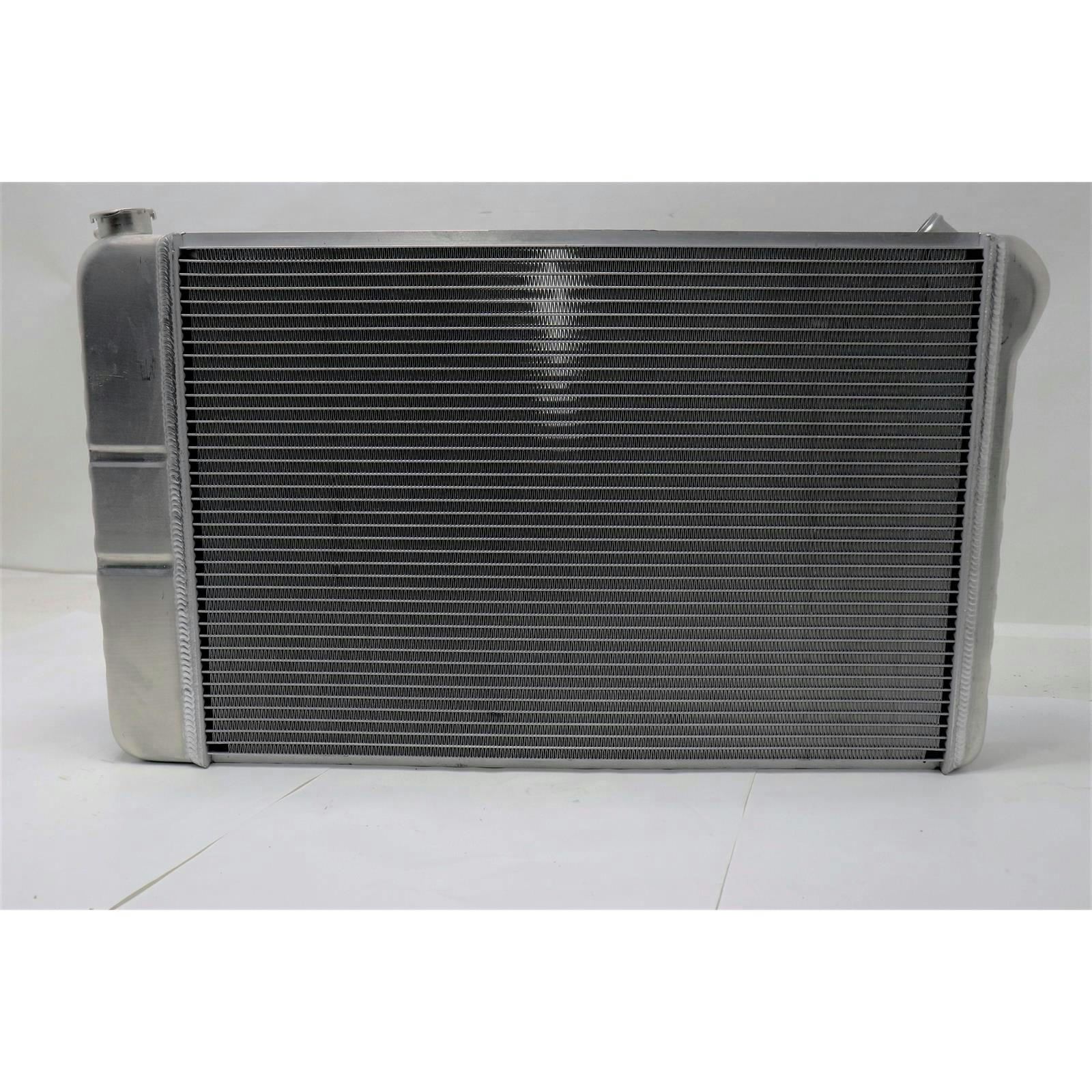

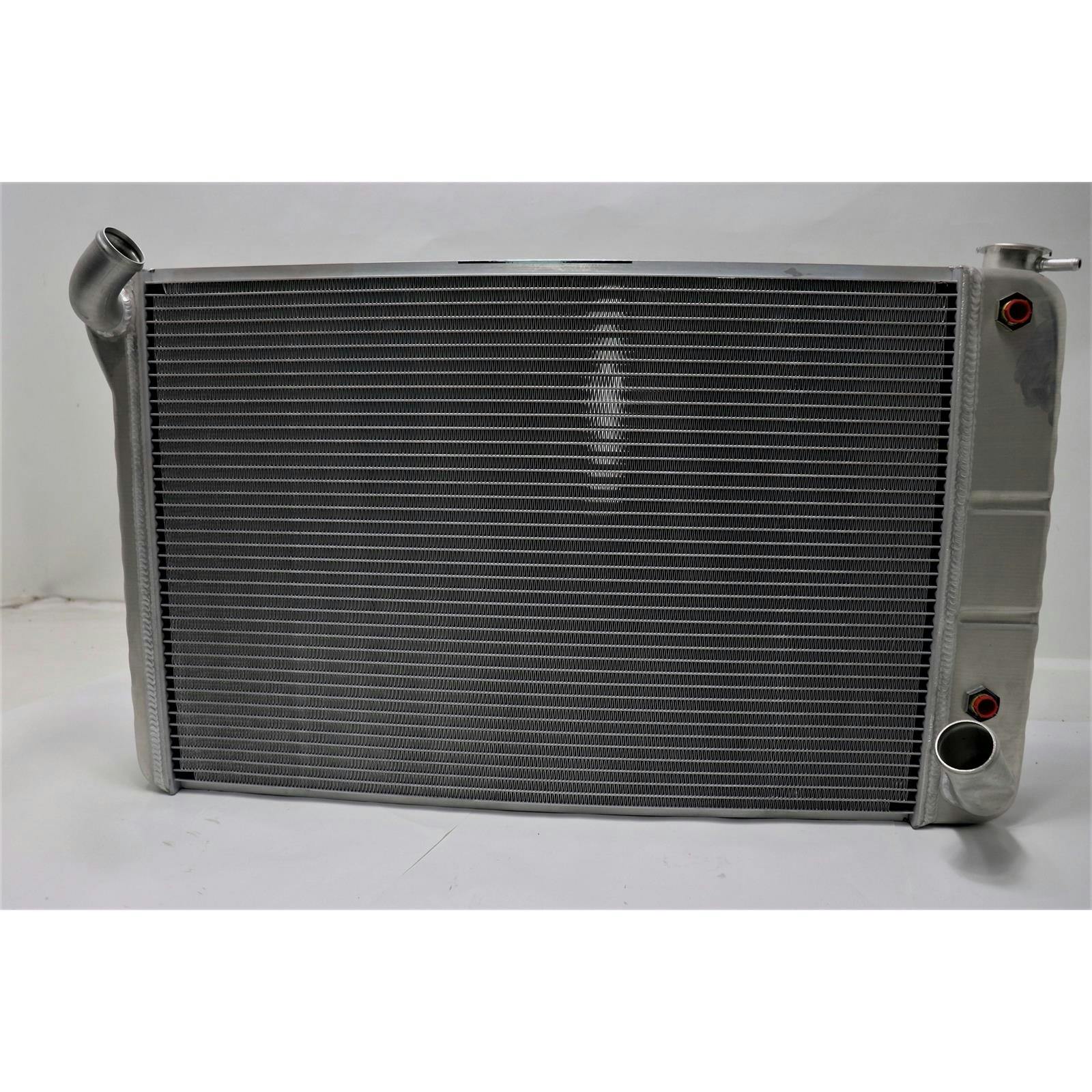

Dewitts 1149070A 1969-72 Corvette Direct Fit HP Radiator, Automat
Aluminum, Upper driver side Inlet Location, Lower passenger side Outlet Location, Natural
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
This is garage sale priced because it is new, old stock. It is being sold as is.
This radiator is for all 1969-72 350 small block corvettes with an automatic transmission. It is a "direct fit" aluminum radiator which features a factory type press formed end tanks, dual row core with 1.25" tubes, serpentine fins, and a factory type upper and lower channels. It will provide 30% more cooling than a stock copper unit with half the weight and epoxy free. It will fit into the stock core suppoer and uses the original factory hoses.
The superior quality of a Dewitts radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts is the only USA aftermarket radiator company to own an aluminum Nocolok brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you're still not sure if that's enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice or polished finish.
- Direct fit with no modification
- Epoxy free, aluminum, dual row core
- 1.25" tubes
- Press formed end tanks
- Assembled and brazed in Howell, MI
