Deluxe Coil-Over Rear Suspension Kit, Plain Finish

Universal Fit, Solid Axle Rear Suspension Type, Radius Rod Trailing Arm Style, Shocks Included

12 Reviews | 15 Answered Questions

In Stock

Ships FREE

STORE PICKUP

Availability

Select your vehicle to verify fitment.

Select a vehicle to verify fitment.

Select Vehicle

Part # 91649060

$642.99

kit

Call to Order

Add to Buildlist

Click to Login

Compare

Details

What's In The Kit

Reviews

Q&A

Videos & Articles

Old School Cool rear suspension kit for Model T or Model A's
Features bare steel 32" Hairpin Radius Rods to customize your ride
Quality black finish AFCO coil over shocks with a 10" chrome spring in your choice of spring rates
Includes universal steel Panhard bar for added strength
All brackets and hardware included, will require fabrication and welding for installation

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.

Item 1 of 1

AFCO 10" Mirror Finish Spring

Quantity: 2

Rate

115 125 140 150 165 175 200 225 250 275 300 325 350 375 400 425 450 500 550 600

Details

Rear Suspension Type:

Solid Axle

Trailing Arm Style:

Radius Rod

Suspension Kit Type:

Conversion

Suspension Height Adjustment:

Stock Height

Spring Type:

Coilover

Shocks Included:

Yes

Shock Adjustability:

Non-Adjustable

Shock Body Material:

Steel

Compressed Length:

9.75"

Extended Length:

14.675"

Bolt-On:

Axle Housing Included:

Material Type:

Steel

Finish:

Natural

MFG. Part #:

91649060

Sold in Quantity:

Kit

Info

This rear suspension kit is loaded with high quality components. Kit includes a steel panhard bar, AFCO coil-over shock assemblies, bare steel 32" radius rods, and all mounting brackets and hardware. The gas pressurized and radial tuned shocks provide an excellent ride. Welding is required for assembly.

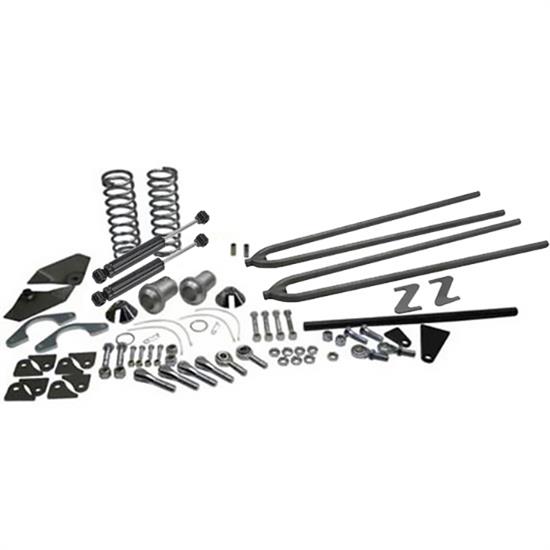

Kit includes:
- Steel panhard bar
- AFCO coil-over shock assemblies
- Bare steel 32" radius rods
- All mounting brackets and hardware

Comes with your choice of spring rate. Use the Spring Rate Guide and Coil-Over Mounting guide to select to proper rate for your vehicle.

Spring Rate Guide (GIF)

Coil-Over Mounting Guide (GIF)

Application

This kit is engineered to be applicable to a Model T / Model A type chassis. Due to the hardware and chassis components utilized, it is not suggested for a 1935-up chassis which will have a heavier rear axle weight.

Charts

916-49060 Instructions (PDF)

Important Messages

Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.

Standard Steel Heim Joint Rod Ends, 5/8-18 RH Male

Part # 1750106

Qty x 2
Steel Jam Nuts, 5/8 Inch-18 Right Hand NF Fine Thread, Pack/6

Part # 1756046-RH

Qty x 1
Steel Clevis, 5/8-18 RH Thread, 3/8 Inch Slot, Zinc Plated

Part # 91002006

Qty x 4
Radius Rod/Four-Bar Frame Mounting Brackets, 5/8 Hole, 4-3/8 Inch

Part # 91635051

Qty x 1
Short Rear Axle Brackets

Part # 91645006

Qty x 2
Classic 32 Inch Rear Radius Rods, Plain Steel

Part # 91645110

Qty x 1
Speedway Universal Weld-On Rear Panhard Bar Track Rod Kit

Part # 91649022

Qty x 1
Nut/Bolt Kit

Part # 91649021-1

Qty x 1

AFCO Street Rod Non-Adjustable Gas Shock, Black

Part # 1061045-BLK

Qty x 2
AFCO 10" Mirror Finish Spring

Part # 10623C

Qty x 2
AFCO 20102 Black Coil Over Kit, 1.63 Inch

Part # 10620102

Qty x 2
Shock Mounting Bolts and Nuts

Part # 91649060-2

Qty x 1
Chassis Weld Tabs for Suspension Install, 1/2 Inch Hole, Set of 8

Part # 91007230

Qty x 1
