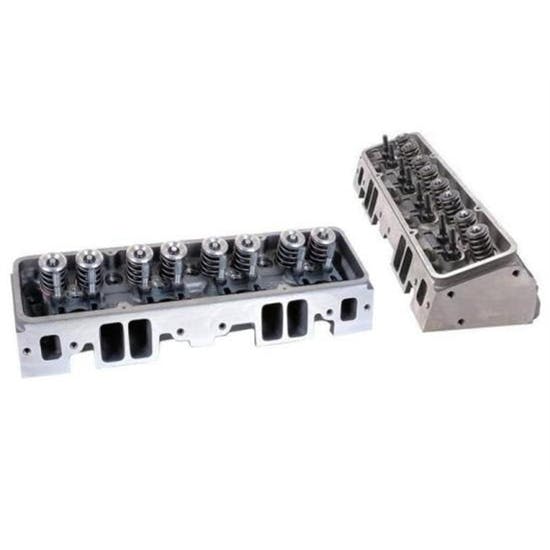

Dart Iron Eagle Assembled Chevy Heads, Angle Plug, 215cc/49cc
- Special heart shaped chambers improve combustion efficiency
- Pushrod holes enlarged for clearance with high ratio rocker arms
- Dual bolt pattern accepts flange mount and center bolt valve covers
Discontinued
This item is currently not available
Shop all Dart Iron Eagle Cylinder Heads
Product Summary
Assembled Cylinder Head Style, Cast Iron, Natural
- Special heart shaped chambers improve combustion efficiency
- Pushrod holes enlarged for clearance with high ratio rocker arms
- Dual bolt pattern accepts flange mount and center bolt valve covers
- The standard port location and intake bolt pattern fit most manifolds
- Multi-angle intake seats and radiused exhaust seats dramatically increase airflow
Key Specs
| Cylinder Head Style | Assembled |
| Material Type | Cast Iron |
| Finish | Natural |
| Combustion Chamber Volume | 49cc |
| Intake Runner Volume | 215cc |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details

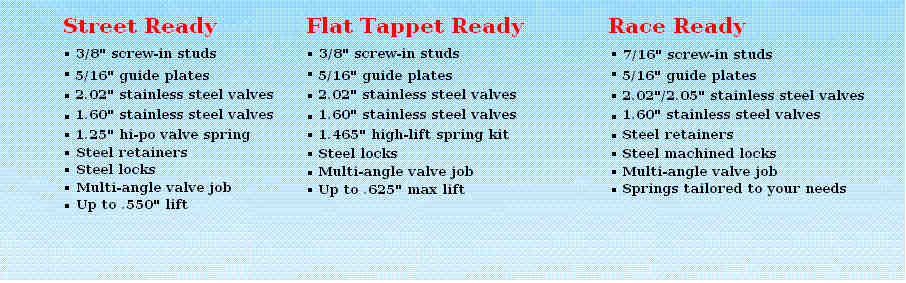

These complete Dart Iron Eagle Platinum cylinder heads are professionally assembled right here at Speedway Motors. We offer three different versions of each head (Street Ready, Flat Tappet Ready, Roller Ready) to perfectly suit your racing needs. "FLAT" and "RACE" versions included 2.055 valves. "STRT" version includes 2.02 valve.
- Standard 23 degree valve angle
- Standard port location and intake bolt pattern fit most manifolds
- Pushrod holes enlarged for clearance with high ratio rocker arms
- Heart shaped chambers improve combustion efficiency
- Multi-angle intake seats and radiused exhaust seats dramatically increase airflow
- Hardened exhaust seats compatible with unleaded gasoline
- Manganese bronze intake valve guides and phosphorous bronze exhaust valve guides extend cylinder head life
- Spark plug holes are machined for tapered seat 5/8" hex "peanut" spark plugs
- Dual bolt pattern accepts flange mount and center bolt valve covers
Roller Ready - Please specify cam lift in comments section when ordering.
Recommended Spark Plug: 14 mm, 5/8" hex, .460 reach, taper seat
Item Details
Angle Plug215cc Intake Runner, 49cc Combustion Chamber
2.02/1.60 valves only
Charts
Specs
- Dart Installation Note (PDF)
Recommended Spark Plug: 14 mm, 5/8" hex, .460 reach, taper seat
- Iron Eagle Tech Notes (PDF)
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Dart |
| Cylinder Head Style | Assembled |
| Material Type | Cast Iron |
| Finish | Natural |
| Combustion Chamber Volume | 49cc |
| Intake Runner Volume | 215cc |
| GENERAL | |
| Exhaust Runner Volume | 84cc |
| Combustion Chamber Volume Range | 40cc - 49cc |
| Intake Runner Volume Range | 210cc - 219cc |
| Exhaust Runner Volume Range | 80cc - 89cc |
| Spark Plug Style | Angle |
| Intake Port Shape | Rectangle |
| Exhaust Port Shape | Square |
| Intake Valve Diameter | 2.06" |
| Exhaust Valve Diameter | 1.6" |
| Spring Diameter | Select Style to see |
| Notes | Max lift on Roller Race read is .640 |
| Sold in Quantity | Select Style to see |
