| MFG. Part # | VHX-73C-PU-K-B |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Black |
Need help?
855.313.9176Quick and Easy Returns

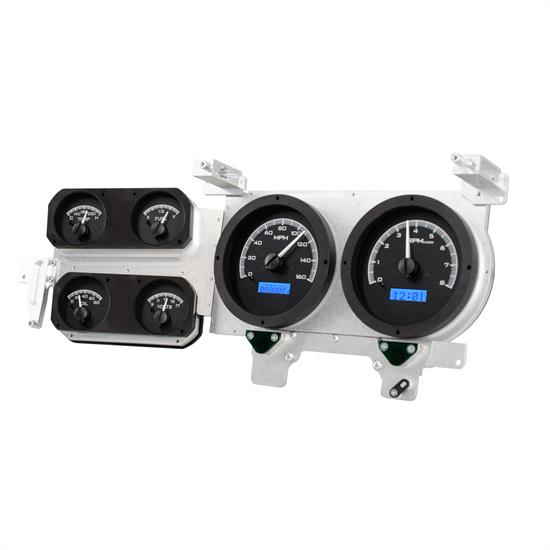

Return PolicyThe ‘square body’ GM pickups are spreading like wildfire, and VHX-73C-PU is the perfect finishing touch for many of these builds. These kits are a snap to install with your original or reproduction dash bezel (not included) and provide up-to-date information with world-class technology while retaining subtle touches such as stock-location turn signals (now LED-lit) and provisions to retain the stock gear position indicator. 1973-87 pickups and SUVs through 1991.
Fully lit needles, backlit faces, and two highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Features
Water Temperature
Oil Pressure
Cable Driven Speed Sensor/Generator
Bushings
Application
Speedometer
Tachometer
Oil Pressure
Water Temperature
Fuel Level
Voltmeter
Lighting
Standard Displays
Performance Meters
Indicators
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | VHX-73C-PU-K-B |
| Brand | Dakota Digital |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Black |
| GENERAL | |
| Sold in Quantity | Each |
| Notes | Not all OEM indicator lamp functions will be replaced |
| GTIN Code | 670219117969 |
| Number of Gauge Housings | 1 |
| Lighted | Yes |
| Lighting Type | LCD/LED |
| Light Color | Blue |
| Needle Color | Blue |
| Mount Type | Uses Factory Hangers |
| Speedometer Included | Yes |
| Tachometer Included | Yes |
| Oil Pressure Gauge Included | Yes |
| Oil Temperature Gauge Included | No |
| Water Pressure Gauge Included | No |
| Water Temperature Gauge Included | Yes |
| Fuel Pressure Gauge Included | No |
| Fuel Level Gauge Included | Yes |
| Vacuum Gauge Included | No |
| Volt Gauge Included | Yes |
| Ammeter Gauge Included | No |
| Boost/Pyrometer Gauge Included | No |
| Exhaust Pressure Gauge Included | No |
| Odometer Gauge Included | Yes |
| Sending Unit | Includes Water Temperature Sender, Oil Pressure Sender, Speed Sender, and Control Box |
| Included Adapter/Fitting | Adapter bushings from 1/4" to 3/8" and 1/2" NPT, 12mm and 16mm x 1.121 |
| Includes Tubing | No |
| Includes Mounting Bracket(s) | No |
| Hardware Included | No |
| Clock Included | Yes |
| Fuel Sender Included | No |
| Speed Sender Included | Yes |
| Oil Pressure Sender Included | Yes |
| Turn Signals Included | Yes |
| Includes Wire Harness | Yes |
| Bezel Included | No |
Be the first to ask a question.
1973-1986 Chevy C10
1982-1987 Chevy C15
1973-1987 Chevy C20
1973-1986 Chevy C30
1983-1987 Chevy C35
1975-1986 Chevy K10
1973-1986 Chevy K20
1973-1986 Chevy K30
1975-1978 GMC C15
1973-1974 GMC C15/C1500 Pickup
1979-1986 GMC C1500
1975-1978 GMC C25
1973-1974 GMC C25/C2500 Pickup
1979-1986 GMC C2500
1975-1978 GMC C35
1973-1974 GMC C35/C3500 Pickup
1979-1986 GMC C3500
1975-1978 GMC K15
1973-1974 GMC K15/K1500 Pickup
1979-1986 GMC K1500
1975-1978 GMC K25
1973-1974 GMC K25/K2500 Pickup
1979-1986 GMC K2500
1977-1978 GMC K35
1973-1974 GMC K35/K3500 Pickup
1979-1986 GMC K3500
