Dakota Digital VHX-70C-CVL-K-W 70-72 Chevelle SS VHX Instruments

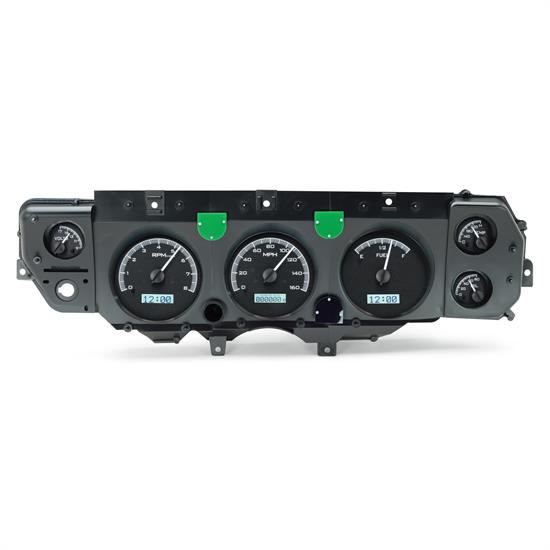

Arguably the king of the muscle cars, 1970 saw over the top engines along with a totally new dash design. Keep the style while upgrading to 21st Century technology with VHX-70C-CVL. Bolting directly into stock or aftermarket bezels and gauge carriers (carrier not included), six analog instruments with stock-location indicators and three LCD message centers offer stylish, up-to-date information

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday's traditional approach to instrumentation. A few of the features which you don't normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

* Bezel not included, shown for visual/presentation purposes. System uses OEM or reproduction style bezel.

Black Alloy Background with White Lighting

Analog Gauges

• Speedometer 0 - 160 MPH (optional metric version 0 - 255 kmh)
• Tachometer 0 - 8,000 RPM
• Oil Pressure 0 - 80 psi
• Water Temperature 100 - 260 degree F (optional metric version 40 - 120 degree C)
• Fuel Level E, 1/4, 1/2, 3/4, F
• Voltmeter 9 - 17 VDC
• Clock (12 hour)

Digital message centers

• Odometer (one time user settable, million mile)
• Dual (A/B) Trip Meter (0 - 9,999.9)
• Estimated Range/Miles to Empty

Performance meters

• 0 - 60 MPH Timer (0 - 100 kmh)
• 1/4 mile time
• 1/4 mile end speed (trap speed)
• High speed recall
• High RPM recall

Built in indicators

• Turn signals (Left/Right)
• High Beam
• Check Engine
• Park Brake
• Cruise Control (On/Engaged when vehicle is equipped)
• Gear Position (requires Dakota Digital GSS-3000 sensor)
• 4x4 (When vehicle is equipped)
• Wait to Start (When vehicle is equipped)
• Two auxilary input indicators with user-programmable labels
• Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
• **Not all OEM indicator lamp functions will be replaced

Lighting Technology

• Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face
• Auto-contrasting LCD display for optimal view in the brightest of sunlight
• LED backlit at night to match/complete the look at night

Sensors Included

• Water tempurature - 1/8" NPT, ground isolated sensor with 10 ft harness
• Oil pressure - 1/8" NPT solid state sensor with 10 ft harness
• Cable driven speed sensor/generator - replaces GM and/or Ford style speedometer cable with a 10 ft wire harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.
• Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12 mm and 16 mm x 1.5 threads
• Control Box - 5.5" x 3.5"x 1"

BIM Expansion Modules

Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX, HDX and RTX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.

Please note that the BIM modules are only compatible with current VFD, VHX, HDX and RTX control boxes which have a black plastic housing. Older control boxes with metal housings are not compatible with the BIM modules.

CLICK HERE FOR AVAILABLE BIM EXPANSION MODULES

• 1970-72 Chevy Chevelle SS
• 1970-72 Chevy Monte Carlo
• 1970-72 Chevy El Camino
• 1971 GMC Sprint SP

Quick Start Manual

Mounting Manual
