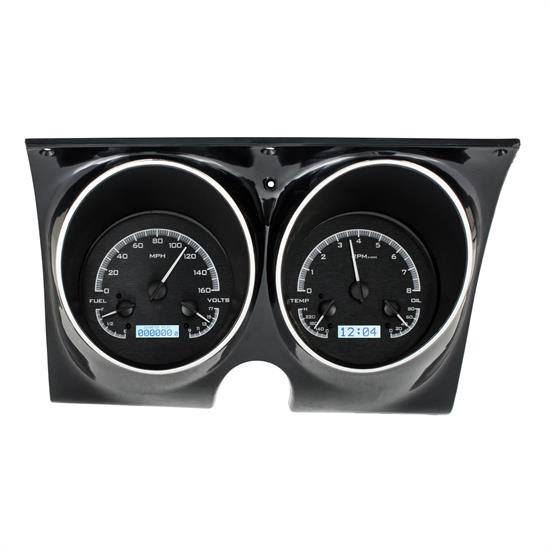

Dakota Digital VHX-67C-CAM-K-W 1967 Camaro VHX Instruments, Black
67-68 Chevy Camaro, Analog Gauge Series, Electric Gauge Style, Dash Cluster Gauge Set Design













- Dash is specifically designed for the 1967 Camaro
- Features fully lit needles, backlit faces, and highly visible LCD message centers
- Comes with micro-controlled precision stepper motors
- Has solid-state sensors for unparalleled accuracy
- The instruments are programmed and operated by the push of a button
Details
Info
The first generation Camaro and Firebird started a legacy with unmatched popularity to this day. VHX-67C-CAM is a terrific way to update your pony car without losing its original style. Simple installation using a stock or reproduction instrument bezel (available separately) yielding full instrumentation will have admirers doing a double-take.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
- System fits stock or reproduction instrument housing (not included)
- Black Face
- White Display
Features
Included Sensors
Water Temperature
- 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure
- 1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/Generator
- Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.
Bushings
- Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Application
Analog Gauges
Speedometer
- 0 -160 MPH
Tachometer
- 0- 8,000 RPM
Oil Pressure
- 0- 80 psi
Water Temperature
- 100- 260ºF
Fuel Level
- E, 1/4, 1/2, 3/4, F
Voltmeter
- 9- 17 VDC
Lighting
- Back lit technology is popular with performance instrumentation due to precise lighting allowing you to see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Centers
Standard Displays
- Odometer (One-time user settable, Million Mile)
- Dual (A/B) Trip Meter (0- 9,999.9)
- Clock (12 hour)
Performance Meters
- 0- 60 MPH Timer (0- 100 kmh)
- 1/4 mile time
- 1/4 end speed (trap speed)
- High-speed recall
- High RPM recall
Built-in Indicators
Indicators
- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-2000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)
- **Not all OEM indicator lamp functions will be replaced.
- If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
Notes
Calibration
Pushbutton
- Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Charts
Wiring and Setup ManualImportant Messages
