Dakota Digital VHX-66C-CVL-S-W 1966-67 Chevelle VHX Instruments

-5%

#365VHX66CCVLSW

Dakota Digital VHX-66C-CVL-S-W 1966-67 Chevelle VHX Instruments

Name: Dakota Digital VHX-66C-CVL-S-W 1966-67 Chevelle VHX Instruments
Brand: Dakota Digital
SKU: 365VHX66CCVLSW
Price: 945.25 USD
Availability: InStock

Write a Review

Ask a Question

Color:

Silver / White

Carbon / BlueBlack / Blue Black / Red Black / White Silver / Blue Silver / Red

$945.25

/each

Factory Shipped

$995.00

Save $49.75

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

66-67 Chevy Chevelle, 66-67 Chevy Malibu, Silver, White

See more details

Key Specs

MFG. Part #	VHX-66C-CVL-S-W
Gauge Series	Analog
Gauge Style	Electric
Gauge Set Design	Dash Cluster
Gauge Face Color	Silver

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Dakota Digital VHX-66C-CVL-S-W Details

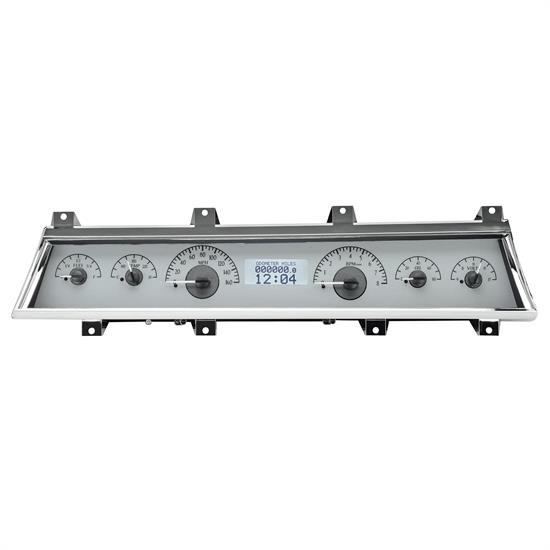

The first major redesign of the new A-body platform saw many styling changes, and the instrument system was among the updates. VHX-66C-CVL is a direct bolt-in replacement using an original or reproduction bezel (available separately) that fits six analog readouts with the addition on a single, large LCD message center.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Uses stock or aftermarket bezel (sold separately) Bezel part # 610088
Silver Face
White Display

Features

Included Sensors

Water Temperature

1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/Generator

Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.

Bushings

Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Analog Gauges

Speedometer

0 -140 MPH

Tachometer

0- 8,000 RPM

Oil Pressure

0- 80 psi

Water Temperature

100- 260ºF

Fuel Level

E, 1/4, 1/2, 3/4, F

Voltmeter

9- 17 VDC

Lighting

Back lit technology is popular with performance instrumentation due to precise lighting allowing you to see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays

Odometer (One-time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Clock (12 hour)

Performance Meters

0- 60 MPH Timer (0- 100 kmh)
1/4 mile time
1/4 end speed (trap speed)
High-speed recall
High RPM recall

Built-in Indicators

Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
**Not all OEM indicator lamp functions will be replaced.
- If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Calibration

Pushbutton

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Charts

Wiring and Setup Manual

Quick Start Manual

Mounting Manual

Guides & Documents

Gauge Sets Installation Instructions (365VHX66CCVLSW)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Dakota Digital VHX-66C-CVL-S-W Specifications

KEY SPECS
MFG. Part #	VHX-66C-CVL-S-W
Brand	Dakota Digital
Gauge Series	Analog
Gauge Style	Electric
Gauge Set Design	Dash Cluster
Gauge Face Color	Silver

GENERAL
Sold in Quantity	Each
Notes	Not all OEM indicator lamp functions will be replaced
GTIN Code	670219114661
Number of Gauge Housings	1
Lighted	Yes
Lighting Type	LCD/LED
Light Color	White
Needle Color	Red
Lettering Color	White
Mount Type	Uses Factory Hangers
Speedometer Included	Yes
Tachometer Included	Yes
Oil Pressure Gauge Included	Yes
Oil Temperature Gauge Included	No
Water Pressure Gauge Included	No
Water Temperature Gauge Included	Yes
Fuel Pressure Gauge Included	No
Fuel Level Gauge Included	Yes
Vacuum Gauge Included	No
Volt Gauge Included	Yes
Ammeter Gauge Included	No
Boost/Pyrometer Gauge Included	No
Exhaust Pressure Gauge Included	No
Odometer Gauge Included	Yes
Sending Unit	Includes Water Temperature Sender, Oil Pressure Sender, Speed Sender, and Control Box
Included Adapter/Fitting	Adapter bushings from 1/4" to 3/8" and 1/2" NPT, 12mm and 16mm x 1.5
Includes Tubing	No
Includes Mounting Bracket(s)	No
Hardware Included	No
Clock Included	Yes
Fuel Sender Included	No
Speed Sender Included	Yes
Oil Pressure Sender Included	Yes
Turn Signals Included	Yes
Includes Wire Harness	Yes
Bezel Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1966-1967 Chevy Chevelle

1966-1967 Chevy Malibu
