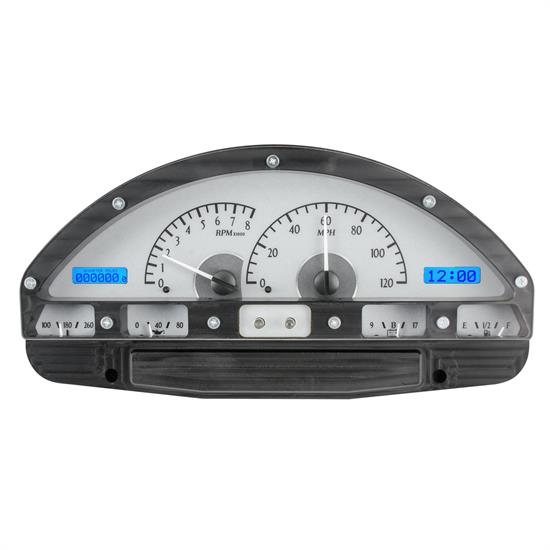

Dakota Digital VHX-56F-PU-S-B 1956 Ford PU VHX Instruments
$945.25
/set
Factory Shipped
$995.00
Save $49.75
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
-5%
-5%
|
#365VHX56FPUSB
$945.25
/set
Factory Shipped
$995.00
Save $49.75
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | VHX-56F-PU-S-B |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Silver |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAll-new, billet aluminum, chrome-plated gauge housings packed full of the best in instrumentation technology will bring your cruiser to new heights. The analog gauge sweeps have a decidedly modern feel without losing the classic vibe. The LCD message center displays additional information, and the original turn signals are now lit with LEDs! System utilizes factory, cast-metal gauge surround.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Speedometer/Tachometer measures 5.07" overall, 4.72" cutout
Satellite gauges measure 2.675" overall, 2.47" cutout
Features
Water Temperature
Oil Pressure
Cable Driven Speed Sensor/Generator
Bushings
Application
Speedometer
Tachometer
Oil Pressure
Water Temperature
Fuel Level
Voltmeter
Lighting
Standard Displays
Performance Meters
Indicators
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | VHX-56F-PU-S-B |
| Brand | Dakota Digital |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Silver |
| GENERAL | |
| Sold in Quantity | Each |
| Notes | Not all OEM indicator lamp functions will be replaced |
| GTIN Code | 670219112674 |
| Number of Gauge Housings | 5 |
| Speedometer Diameter | 4-23/32 Inch |
| Auxiliary Gauge Diameter | 2-15/32 Inch |
| Lighted | Yes |
| Lighting Type | LCD/LED |
| Light Color | Blue |
| Needle Color | Blue |
| Mount Type | Direct / Adapter |
| Speedometer Included | Yes |
| Tachometer Included | Yes |
| Oil Pressure Gauge Included | Yes |
| Oil Temperature Gauge Included | No |
| Water Pressure Gauge Included | No |
| Water Temperature Gauge Included | Yes |
| Fuel Pressure Gauge Included | No |
| Fuel Level Gauge Included | Yes |
| Vacuum Gauge Included | No |
| Volt Gauge Included | Yes |
| Ammeter Gauge Included | No |
| Boost/Pyrometer Gauge Included | No |
| Exhaust Pressure Gauge Included | No |
| Odometer Gauge Included | Yes |
| Sending Unit | Includes Water Temperature Sender, Oil Pressure Sender, Speed Sender, and Control Box |
| Included Adapter/Fitting | Adapter bushings from 1/4" to 3/8" and 1/2" NPT, 12mm and 16mm x 1.81 |
| Includes Tubing | No |
| Includes Mounting Bracket(s) | Yes |
| Hardware Included | Yes |
| Clock Included | Yes |
| Fuel Sender Included | No |
| Speed Sender Included | Yes |
| Oil Pressure Sender Included | Yes |
| Turn Signals Included | Yes |
| Includes Wire Harness | Yes |
| Bezel Included | No |
