Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments

Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments

76-78 Chevy, 76-78 GMC, Analog Gauge Series, Electric Gauge Style, 1 Number of Gauge Housings

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
X
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Dakota Digital RTX-76C-PU-X 1976-78 Chevy Pickup RTX Instruments
Zoomed In Image
We estimate this item will ship on or before April 7th.
Part # 365RTX76CPUX
Save $65
$1,230.25
$1,294.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Gauge Series:
Analog
Gauge Style:
Electric
Gauge Set Design:
Dash Cluster
Number of Gauge Housings:
1
Lighted:
Yes
Lighting Type:
LED
Light Color:
30+ User-Selectable Options
Needle Color:
User-Selectable
Mount Type:
Uses Factory Hangers
Speedometer Included:
Yes
Tachometer Included:
Yes
Oil Pressure Gauge Included:
Yes
Oil Temperature Gauge Included:
No
Water Pressure Gauge Included:
No
Water Temperature Gauge Included:
Yes
Fuel Pressure Gauge Included:
No
Fuel Level Gauge Included:
Yes
Vacuum Gauge Included:
No
Volt Gauge Included:
Yes
Ammeter Gauge Included:
No
Boost/Pyrometer Gauge Included:
No
Exhaust Pressure Gauge Included:
No
Odometer Gauge Included:
Yes
Included Adapter/Fitting:
Adapter bushings from 1/4" to 3/8" and 1/2" NPT, 12mm and 16mm x 1.49
Includes Tubing:
No
Includes Mounting Bracket(s):
No
Hardware Included:
No
Clock Included:
Yes
Fuel Sender Included:
No
Speed Sender Included:
Yes
Oil Pressure Sender Included:
Yes
Turn Signals Included:
Yes
Includes Wire Harness:
Yes
Bezel Included:
No
MFG. Part #:
RTX-76C-PU-X
Notes:
Not all OEM indicator lamp functions will be replaced
Sold in Quantity:
Each

Info

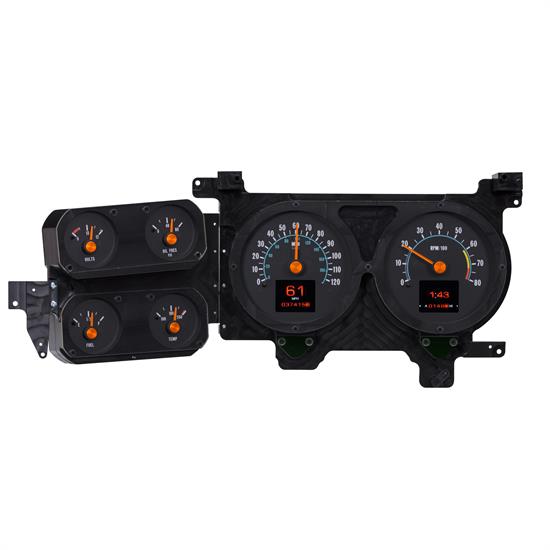

Paying tribute to the 1976-78 gauge design, the RTX series maintains the beloved Chevy and GMC square-body look while bringing in late-model elements. A bolt-in affair with your stock or aftermarket front bezel (not supplied), the twin TFT message centers give the look of a vintage tumbler odometer but can be expanded with auxiliary readings to keep you informed. Retains stock gear-indicator and the factory turn signal locations are now LED-lit.

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling, and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible.

*Bezel not included, shown for visual/presentation purposes.

System uses OEM or reproduction style bezel.

Features

Lighting Technology

Colors

  • Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Brightness

  • Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.

Themes

  • With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.

Technology

  • Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice.

Included Sensors

Water Temperature

  • 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

  • 1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/Generator

  • Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.

Bushings

  • Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Manuals

Wiring and Setup Manual

Quick Start Manual

Mounting Manual

Application

Analog Gauges

Speedometer

  • 0 -120 MPH

Tachometer

  • 0- 8,000 RPM

Oil Pressure

  • 0- 80 psi

Water Temperature

  • 100- 260ºF

Fuel Level

  • E, 1/4, 1/2, 3/4, F

Voltmeter

  • 9- 17 VDC

Digital Message Centers

Standard Displays

  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)
  • Estimated Range/ Miles to Empty

Performance Meters

  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 and 1/8 mile time
  • 1/4 and 1/8 mile end speed (trap speed)
  • High-speed recall
  • High RPM recall

Built-in Indicators

Indicators

  • Turn Signals (Left/ Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged when vehicle is equipped)
  • Gear Position (Optional GSS-2000 sensor required)
  • 4 x 4 (When vehicle is equipped)
  • Wait to Start (When vehicle is equipped)
  • Two Auxiliary input indicators with user-programmable labels
  • Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
  • **Not all OEM indicator lamp functions will be replaced.
    • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Notes

Calibration and Use

Pushbutton Control

  • Dakota Digital instrument systems are programmed and operated by the push of a button. A two-sided rocker switch is included with each package; mount this switch in an easily accessible location when in the driving position. The rocker switch provides quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center or through the included buzzer. Once configured, this same switch is used to access the wealth of information located in the digital message centers.

Mobile App

  • RTX instrument systems can also be completely configured through the available mobile app, suitable to Android and Apple devices. Using your existing tablet or smartphone, download the free app, sync your device to the RTX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.

Calibration

  • All calibration settings are handled through the included pushbutton switch or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Dakota Digital to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
