Dakota Digital RTX-70C-CVL-X 1970-72 Chevelle SS RTX Instruments

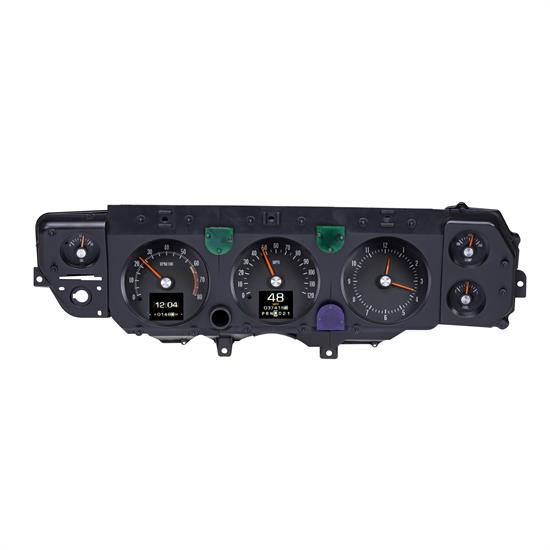

The king of the muscle cars offers six round gauge openings, and this instrument system will keep the purists happy as well as the pro-touring set! Two TFT displays are hiding in plain sight, displaying the essentials with the ability to add more readings for the serious driver. Green, blue and red LEDs are positioned to illuminate the stock turn signals, high beam and brake indicators. The RTX-70C-CVL was designed as a bolt-in upgrade to a stock or reproduction gauge carrier (available separately) and bezel.

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible.

* Center console trim bezel (factory gauge carrier) not included, shown for visual/presentation purposes. System uses OEM or reproduction style bezel (factory gauge carrier).  See mounting instructions for additional information.

Features

• Analog Gauges
  • Speedometer 0 - 120 MPH (optional metric version 0 - 220 kmh)
  • Tachometer 0 - 8,000 RPM
  • Oil Pressure 0 - 80 psi
  • Water Temperature 100 - 260 degree F (optional metric version 40 - 120 degree C)
  • Fuel Level E, 1/4, 1/2, 3/4, F
  • Voltmeter 9 - 17 VDC
  • Clock 12 Hr Analog Clock Movement
• Digital message centers
  • Odometer (one time user settable, million mile)
  • Dual (A/B) Trip Meter (0 - 9,999.9)
  • Clock (12 hour)
  • Estimated Range/Miles to Empty
• Performance meters
  • 0 - 60 MPH Timer (0 - 100 kmh)
  • 1/4 mile time
  • 1/4 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
• Built in indicators
  • Turn signals (Left/Right)
  • High Beam
  • Check Engine
  • Park Brake
  • Cruise Control (On/Engaged when vehicle is equipped)
  • Gear Position (requires Dakota Digital GSS-3000 sensor)
  • 4x4 (When vehicle is equipped)
  • Wait to Start (When vehicle is equipped)
  • Two auxilary input indicators with user-programmable labels
  • Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
  • **Not all OEM indicator lamp functions will be replaced
• Lighting Technology
  • Colors - over 30 user-selectable color option allow you to independently change the needle color, sweep color, and digital TFT display color
  • Brightness - Both daytime and nighttime brightness can be easily controlled through the setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch.  If on-the-fly rotary type control is desired, the DIM-1 Light Dimming Knob is a common accessory to add this functionality
  • Themes - With 12 factory preset color themes, you can quickly create a beautiful looking system, or for the ultimate in customization, choose all of the color zones yourself.
  • Technology - Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the RTX Series lets you make that choice.
• Sensors Included
  • Water tempurature - 1/8" NPT, ground isolated sensor with 10 ft harness
  • Oil pressure - 1/8" NPT solid state sensor with 10 ft harness
  • Cable driven speed sensor/generator - replaces GM and/or Ford style speedometer cable with a 10 ft wire harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.
  • Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12 mm and 16 mm x 1.5 threads
  • Control Box - 5.5" x 3.5"x 1"

BIM Expansion Modules

Dakota Digital is proud to introduce the BIM Expansion modules for Dakota Digital VFD, VHX, HDX and RTX instrument systems. The introduction of the Dakota Digital BIM modules allow you to add up to an additional 16 gauges, that's right we said SIXTEEN specialty gauges to your vehicle without the need to cut extra holes in the dash or installing pillar and pod mounts to your columns or under the dash.

Please note that the BIM modules are only compatible with current VFD, VHX, HDX and RTX control boxes which have a black plastic housing. Older control boxes with metal housings are not compatible with the BIM modules.

CLICK HERE FOR AVAILABLE BIM EXPANSION MODULES

• 1970-72 Chevy Chevelle SS
• 1970-72 Chevy Monte Carlo
• 1970-72 Chevy El Camino
• 1971 GMC Sprint SP
