-5%
-5%
|
#365MHX1017KR
$945.25
/kit
Factory Shipped
$995.00
Save $49.75
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | MHX-1017-K-R |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Black |
Need help?
855.313.9176Quick and Easy Returns

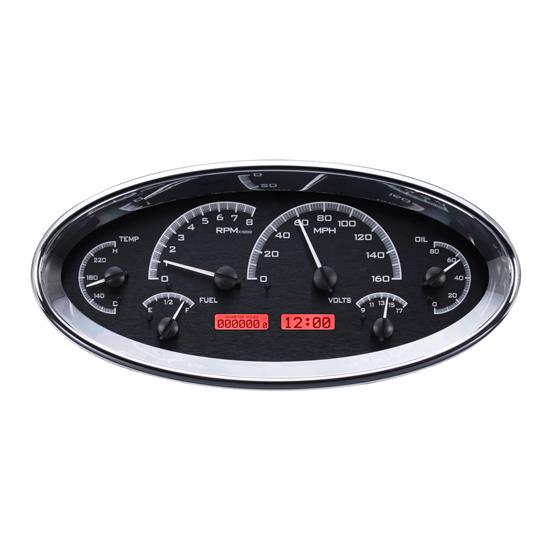

Return PolicyInspired by the iconic Art Deco designs on the 1930s, the VHX-1017 is housed in a billet aluminum, show chromed housing measuring 12.05 x 5.7” (11.66" x 5.3" cutout). At just 2.5” deep, this instrument system can be used in the most cramped applications, bringing both form and function.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Speedometer
Tachometer
Oil Pressure
Water Temperature
Fuel Level
Voltmeter
Lighting
Back lit technology is popular with performance instrumentation due to precise lighting allowing you to see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by a series of LEDs behind the gauge face.
Standard Displays
Performance Meters
Indicators
Pushbutton
Water Temperature
Oil Pressure
Cable Driven Speed Sensor/Generator
Bushings
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | MHX-1017-K-R |
| Brand | Dakota Digital |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Black |
| Bezel Finish | Chrome |
| GENERAL | |
| Sold in Quantity | Each |
| Notes | Gauge units are metric |
| Number of Gauge Housings | 1 |
| Lighted | Yes |
| Lighting Type | LCD/LED |
| Light Color | Red |
| Needle Color | Red |
| Bezel Style | Street Rod |
| Mount Type | Universal |
| Speedometer Included | Yes |
| Tachometer Included | Yes |
| Oil Pressure Gauge Included | Yes |
| Oil Temperature Gauge Included | No |
| Water Pressure Gauge Included | No |
| Water Temperature Gauge Included | Yes |
| Fuel Pressure Gauge Included | No |
| Fuel Level Gauge Included | Yes |
| Vacuum Gauge Included | No |
| Volt Gauge Included | Yes |
| Ammeter Gauge Included | No |
| Boost/Pyrometer Gauge Included | No |
| Exhaust Pressure Gauge Included | No |
| Odometer Gauge Included | Yes |
| Overall Length | 12.05" |
| Overall Height | 5.7" |
| Depth | 2.5" |
| Sending Unit | Includes Water Temperature Sender, Oil Pressure Sender, Speed Sender, and Control Box |
| Included Adapter/Fitting | Adapter bushings from 1/4" to 3/8" and 1/2"NPT, 12mm, and 16mm x 1.55 |
| Includes Tubing | No |
| Includes Mounting Bracket(s) | Yes |
| Hardware Included | Yes |
| Clock Included | Yes |
| Fuel Sender Included | No |
| Speed Sender Included | Yes |
| Oil Pressure Sender Included | Yes |
| Turn Signals Included | Yes |
| Includes Wire Harness | Yes |
| Bezel Included | Yes |
