Product Summary

Analog Gauge Series, Electric Gauge Style, Black

  • This dash is specifically made to fit the 1940 Ford Car
  • The solid state sending units connect cleanly to their respective terminal
  • Installation is greatly simplified with vehicle-harness sourced signals and supplied
  • Instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable)
  • Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices

Key Specs

MFG. Part #HDX-40F-K
BrandDakota Digital
Gauge SeriesAnalog
Gauge StyleElectric
Gauge Set DesignDash Cluster

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Dakota Digital HDX-40F-K Details

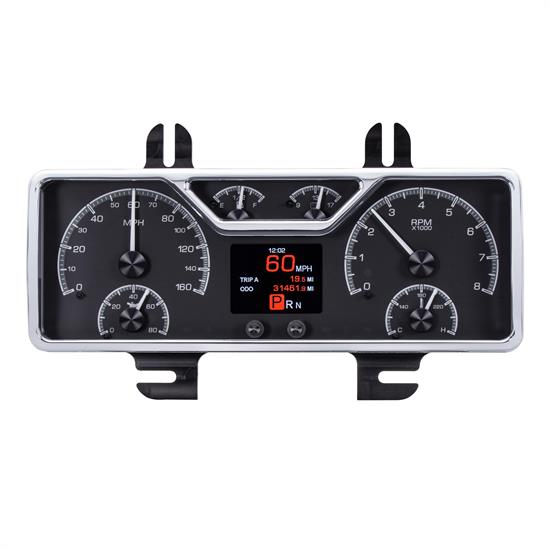

The 1940 Ford dashboard has become an icon in its own right, finding its way into many street rods over the years. This kit comes complete with a chrome plated, machined bezel and a look that can’t be beat! The full-color TFT message center finds a home in an OEM-styled system that fits the stock dash opening of 1940 cars as well as 1940-47 Ford pickups.

Each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

  • Black alloy gauge-face
  • 1940 Ford car
  • 1940-47 Ford pickup

Features

Lighting Technology

Colors

  • Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Brightness

  • Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.

Themes

  • With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.

Technology

  • Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice.

Included Sensors

Water Temperature

  • 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

  • 1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/Generator

  • Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.

Bushings

  • Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Application

Analog Gauges

Speedometer

  • 0 -160 MPH
  • Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH

Tachometer

  • 0- 8,000 RPM

Oil Pressure

  • 0- 80 psi

Water Temperature

  • 100- 260ºF

Fuel Level

  • E, 1/4, 1/2, 3/4, F

Voltmeter

  • 9- 17 VDC

Digital Message Centers

Standard Displays

  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)
  • Estimated Range/Miles to Empty

Performance Meters

  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 and 1/8 mile time
  • 1/4 and 1/8 end speed (trap speed)
  • High-speed recall
  • High RPM recall

Built-in Indicators

Indicators

  • Turn Signals (Left/ Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged when vehicle is equipped)
  • Gear Position (Optional GSS-2000 sensor required)
  • 4 x 4 (When vehicle is equipped)
  • Wait to Start (When vehicle is equipped)
  • Two Auxiliary input indicators with user-programmable labels
  • Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
  • **Not all OEM indicator lamp functions will be replaced.
    • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Charts

Dakota Digital HDX-40F-K Specifications

KEY SPECS
MFG. Part #HDX-40F-K
BrandDakota Digital
Gauge SeriesAnalog
Gauge StyleElectric
Gauge Set DesignDash Cluster
GENERAL
Number of Gauge Housings1
Gauge Face ColorBlack
Bezel FinishChrome
LightedYes
Lighting TypeLED
Light Color30+ User-Selectable Options
Needle ColorUser-Selectable
Bezel StyleMachined
Mount TypeUses Factory Hangers
Speedometer IncludedYes
Tachometer IncludedYes
Oil Pressure Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Water Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Fuel Pressure Gauge IncludedNo
Fuel Level Gauge IncludedYes
Vacuum Gauge IncludedNo
Volt Gauge IncludedYes
Ammeter Gauge IncludedNo
Boost/Pyrometer Gauge IncludedNo
Exhaust Pressure Gauge IncludedNo
Odometer Gauge IncludedYes
Overall Length10.5"
Overall Height3.9"
Sending UnitIncludes Water Temperature Sender, Oil Pressure Sender, Speed Sender, and Control Box
Included Adapter/FittingAdapter bushings from 1/4" to 3/8" and 1/2" NPT, 12mm and 16mm x 1.5
Includes TubingNo
Includes Mounting Bracket(s)No
Hardware IncludedNo
Clock IncludedNo
Fuel Sender IncludedNo
Speed Sender IncludedYes
Oil Pressure Sender IncludedYes
Turn Signals IncludedYes
Includes Wire HarnessYes
Bezel IncludedYes
NotesNot all OEM indicator lamp functions will be replaced
Sold in QuantityEach
