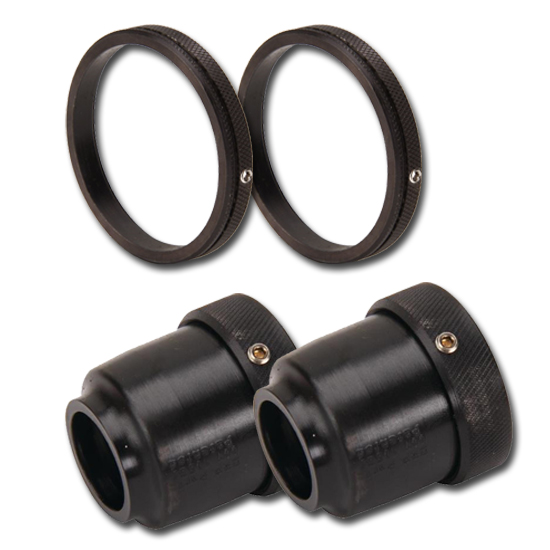

DRP Performance Bearing Spacer Kit, Pinto Spindle/GN Hubs
DRP Performance Bearing Spacer Kit, Pinto Spindle/GN Hubs

DRP Performance Bearing Spacer Kit, Pinto Spindle/GN Hubs

Modified, Stock Car, 1.37" Diameter Big End, 0.89" Diameter Small End, 1.69" Compressed Length

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
DRP Performance Bearing Spacer Kit, Pinto Spindle/GN Hubs
DRP Performance Bearing Spacer Kit, Pinto Spindle/GN Hubs
Zoomed In Image
Part # 91602027
$219.99
$229.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Diameter Big End:
1.37"
Diameter Small End:
0.89"
Compressed Length:
1.69"
Material Type:
Steel
Sold in Quantity:
Kit

Info

These hub bearing spacers allow for consistent and precise bearing load every time the spindle nut is tightened, regardless of the torque applied. Without a bearing spacer, bearings are typically over tightened to prevent loosening during the race. With a bearing spacer installed, you can completely tighten the spindle nut and the hub will spin free every time. Bearing spacers save time, reduce bearing temperature and greatly increase wheel free spin, putting more horsepower to the wheels. You can feel the difference by simply pushing the car!

Kit Includes:

  • (2) Grand National Rear Hub Bearing Spacers
  • (2) Pinto Spindle Pre-Load Bearing Spacers

GN Hub Spacers:

Testing has shown that the bearing spacer will make more difference than any “Low Drag” bearing set up currently available. When the spacer is used in conjunction with “Low Drag” Tapered bearings and seals, you will have the ultimate Low Drag set-up. These adjustable bearings feature a threaded sleeve and set screw to ensure you'll never have to worry about an over-tightened hub again!

  • 2.5” Short Track 5×5 Rear
  • Adjustable
  • 200%-300% more free spin vs. no spacer
  • Designed to fit all Grand National spindle and hub combinations
  • Makes servicing hubs simple & quick
  • Bearings run cooler
  • Saves time
  • Eliminates bearing “Spin” on spindle
  • Distributes side load evenly across bearings
  • Works on tapered and angular contact bearings
  • Once Set, typically never has to be adjusted unless bearings or hub is replaced
  • Instructions Included
  • Precision Machined in the USA
  • +/- .001” Minimum Parallelism

Pinto Spindle Spacers:

  • Designed to fit all Pinto spindle and hub combinations
  • Allows your front hubs to be tight with minimal drag and side pre-load
  • Easy adjust threaded sleeve and set screw ensure you'll never worry about an over-tightened front hub again

Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • DRP Performance 10518 Grand National Rear Hub Bearing Spacer
    Qty x 2
  • DRP Performance 007 10531 Pinto Spindle Pre-Load Bearing Spacers
    Qty x 2
