#9409001

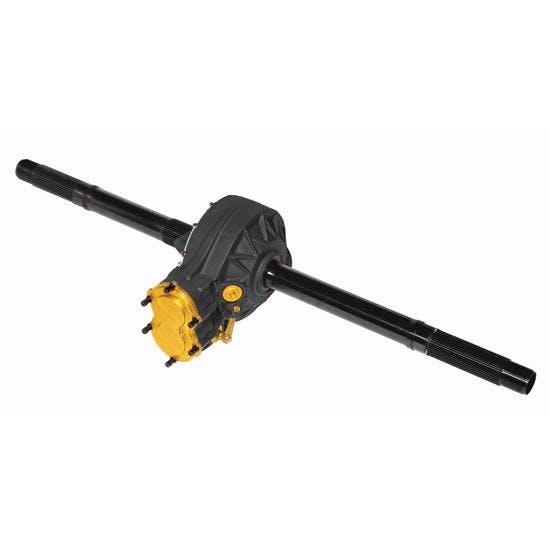

DMI 4:12 Bulldog Rear End
$3,053.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Position | Rear |
| Axle Splines | 42 |
| Axle Type | Single Shaft |
| Brakes Included | No |
| Wheel Studs Included | No |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDMI XR14.12 Details
DMI XR14.12 Details
Manufactured with the highest quality castings, bearings, and gears these rearends have proven reliability. Anodized axles and black thermal coating standard on all selections.
Added Value Included:
- Shifter cable mount
- Breather assembly
- Torque tube studs
- 2 quarts Bulldog blood oil
- Heat treated lower shaft
DMI XR14.12 Specifications
DMI XR14.12 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | XR14.12 |
| Brand | DMI |
| Position | Rear |
| Axle Splines | 42 |
| Axle Type | Single Shaft |
| Brakes Included | No |
| Wheel Studs Included | No |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Material Type | Magnesium |
| Finish | Natural |
| Gear Ratio | 4.12:1 |
| Housing Material | Magnesium |
| Hardware Included | Yes |
| Rotors Included | No |
| Rotor Diameter | Not Included |
| Weight | 82.00 lbs. |
| GENERAL | |
| Sold in Quantity | Kit |
| Notes | Includes shifter cable mount, breather assembly, torque tube studs, heat treated steel lower shaft, and 2 qts. Bulldog blood oil. END NUTS NOT INCLUDED: 91058721 RIGHT HAND 91058722 LEFT HAND |
| Axle Shafts Included | No |
| Third Member Included | Yes |
| Ring and Pinion Included | Yes |
| Bearings Included | Yes |
| Seals Included | Yes |
| Differential Included | Yes |
| Ring Gear Size | 10 Inch |
| Housing Color | Gray |
| Cut to Fit | No |
