Add to Cart
$339.98
$299.99
Complete Power Steering Pump Kit -Pump/Mounts/Tank/Lines/Fittings
Complete Power Steering Pump Kit -Pump/Mounts/Tank/Lines/Fittings

Complete Power Steering Pump Kit -Pump/Mounts/Tank/Lines/Fittings

Chevy Small Block V8, 6.00" Pulley Diameter, 1 Groove | V-Belt Power Steering Pulley Grooves

0 Reviews | 1 Answered Question
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Complete Power Steering Pump Kit -Pump/Mounts/Tank/Lines/Fittings
Complete Power Steering Pump Kit -Pump/Mounts/Tank/Lines/Fittings
X
Zoomed In Image
Part # 91605068
Save 11%
$299.99
$339.98
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Pressure Rating:
1000 psi
Inlet Fitting:
-8 AN
Outlet Fitting:
-6 AN
Pulley Diameter:
6.00"
Power Steering Pulley Grooves:
1 Groove | V-Belt
Power Steering Pulley Material:
Aluminum
Sold in Quantity:
Kit

Info

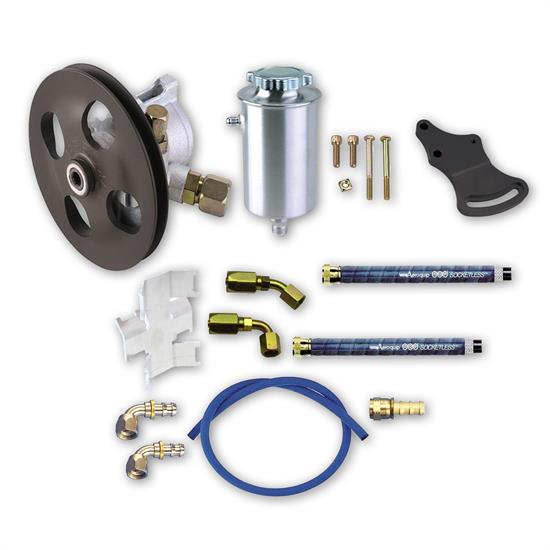

 Kit Includes:

  • (1) Cast Iron Power Steering Pump with Pulley
  • (1) Block Mount Power Steering Pump Bracket for Short Water Pump
  • (1) Vertical Power Steering Reservoir Tank
  • (1) Power Steering/Coolant Tank Mount
  • (1) High Pressure -6 AN 4 Foot Hose
  • (1) Socketless -6 AN 6 Foot Hose
  • (1) Socketless -8 AN 3 Foot Hose
  • (1)¬†Steel -6 AN High Pressure Hose Fitting, 45 Degree
  • (1)¬†Steel -6 AN High Pressure Hose Fitting, 90 Degree
  • (1)¬†Straight -6 AN Socketless Push-On Hose End Fitting
  • (1) -6 AN Hose End Fitting, 90 Degree
  • (1) -8 AN Hose End Fitting, 90 Degree

Steel Power Steering Pump with Pulley

Steel power steering pump has aluminum V-belt pulley. These pulleys are popular for use on late models and IMCA modifieds. These power steering pumps have a pressure relief valve.

  • Pressure Rating: 1000 psi
  • Inlet Fitting: -8 AN
  • Outlet Fitting: -6 AN
  • Pulley Diameter: 6"

Block Mount Power Steering Pump Bracket for Short Water Pump

These power steering pump brackets are for short water pumps. For mounting Profile or Sweet Pump to small block Chevy V8. Bolt kit included. Anodized black.

Vertical Power Steering Reservoir Tank

Vertical mounted power steering reservoir tank. The top return fitting is the industry standard AN 6 size.

  • -8 AN Outlet
  • Not internally baffled

Power Steering/Coolant Tank Mount

Use this handy 3" tall aluminum bracket to mount your power steering reservoir tank or your coolant overflow expansion tank.

High Pressure -6 AN 4 Foot Hose

  • Operating Pressure: 2250 psi
  • Hose Size: -6 AN

Socketless -6 AN 6 Foot Hose

  • No hose clamp necessary
  • Operating Pressure: 250 psi

Socketless -8 AN 3 Foot Hose

  • No hose clamp necessary
  • Operating Pressure: 250 psi

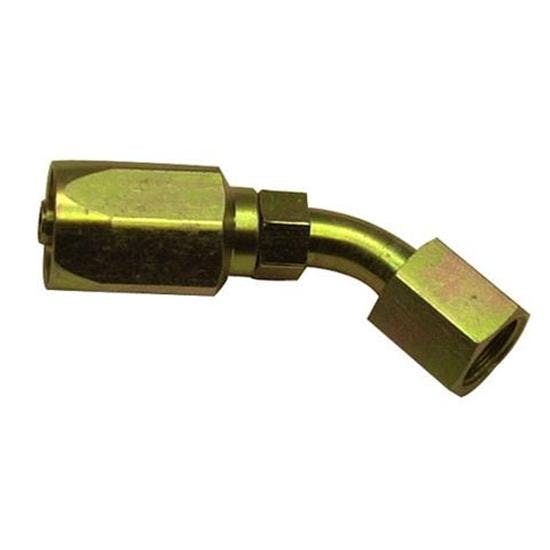

Steel -6 AN High Pressure Hose Fitting, 45 Degree

  • Fitting End A: -6 AN Female
  • Fitting End B: -6 AN Hose

Steel -6 AN High Pressure Hose Fitting, 90 Degree

  • Fitting End A: -6 AN Female
  • Fitting End B: -6 AN Hose

Straight -6 AN Socketless Push-On Hose End Fitting

  • Fitting End A: -6 AN Female
  • Fitting End B: -6 AN Hose

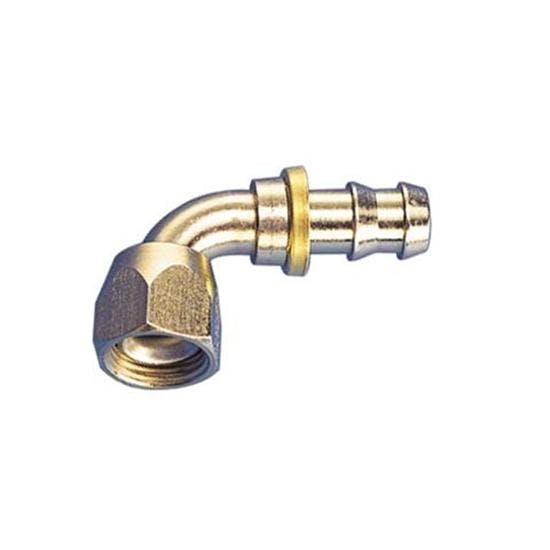

-6 AN Hose End Fitting, 90 Degree

  • Fitting End A: -6 AN Female
  • Fitting End B: -6 AN Hose

-8 AN Hose End Fitting, 90 Degree

  • Fitting End A: -8 AN Female
  • Fitting End B: -8 AN Hose
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Speedway Steel Power Steering Pump V-Belt Pulley AN8 Inlet
    Qty x 1
  • Block Mount Power Steering Pump Bracket for Short Water Pump
    Qty x 1
  • Speedway Vertical Power Steering Reservoir Tank, AN8 Outlet
    Qty x 1
  • Power Steering/Coolant Tank Mount
    Qty x 1
  • Aeroquip FC300 High Pressure Hose, -6 AN, 4 ft.
    Qty x 1
  • Aeroquip Special Application Socketless -6 AN Hose, Blue, 6Ft Length
    Qty x 1
  • Aeroquip Special Application Socketless -8 AN Hose, Blue, 3Ft Length
    Qty x 1
  • Steel -6 AN Fitting for Aeroquip FC300 High Pressure Hose, 45 Degree
    Qty x 1
  • Steel -6 AN Fitting for Aeroquip FC300 High Pressure Hose, 90 Degree
    Qty x 1
  • Straight Socketless Reuseable Push-On Hose End for -6 AN Fitting
    Qty x 1
  • Socketless Reusable Push-On Hose End for -6 AN Fitting, 90 Degree
    Qty x 1
  • Socketless Reusable Push-On Hose End for -8 AN Fitting, 90 Degree
    Qty x 1
  • Straight Socketless Reuseable Push-On Hose End for -8 AN Fitting
    Qty x 1
