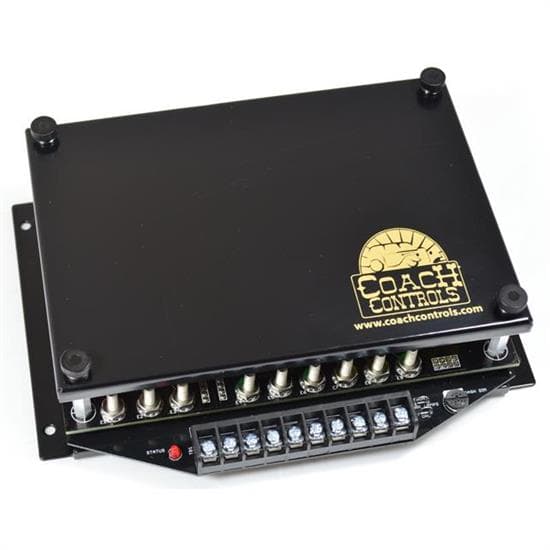

Coach Controls COACH-1-L-AL Body Control Module Wiring Kit

#41200007

Coach Controls COACH-1-L-AL Body Control Module Wiring Kit

Extended length kit with security alarm option installed
Automatic sensor-controlled headlights. Headlight switch is only needed for manual control
12 board-mounted relays

Options:

Alarm

$885.99

/each

In Stock

Order soon, only 3 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 21 Number of Circuits

Extended length kit with security alarm option installed
Automatic sensor-controlled headlights. Headlight switch is only needed for manual control
12 board-mounted relays
Most cars will not require any additional relays
Heavy duty stud terminals for all heavy loads make solid, bullet-proof connections

See more details

Key Specs

MFG. Part #	COACH-1-L-AL
Number of Circuits	21
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Dash

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Coach Controls COACH-1-L-AL Details

The COACH-1-L-AL is essentially a Body Control Module (BCM) that provides many modern conveniences that make any ride more enjoyable. Automatic sensor-controlled headlights, one touch power window control for 2 windows, and lane change turn signals are just a few of the many standard features. In addition, there are several optional features that allow you to customize the electrical system to meet your specific vehicle and preferences.

The Coach-1 kit is available in both a standard and long version, depending on where the Power Center is mounted. Under the dash is considered the standard location and for these applications the Standard Wire Length version should be long enough. The Long Wire Length version is recommended when the Power Center is to be mounted anywhere else in the car (under the front seat, in the trunk, etc). Longer wires may also be necessary when special routing is required for concealment (for example, through frame rails). Select the appropriate version for your application when placing your order.

The Power Center utilizes both high quality relays as well as solid state electronics to control and distribute power to various vehicle loads. This means no more time-consuming mounting and wiring add-on relays. The heavy duty ignition and headlight switches required by other manufacturers are not necessary with this kit.

Extended length kit with security alarm option installed
Automatic sensor-controlled headlights. Headlight switch is only needed for manual control
Low power Daytime Running Lights for a very unique Classic Car appearance
One-touch power window control, the touch of a button raises or lowers your window automatically. The Power Center supports two power windows
Automatic nighttime approach lights - turns on headlights and signal lights when you unlock the doors with your key fob. (Requires remote keyless entry system, not included)
Automatic nighttime exit lighting turns on headlights when you turn off the Ignition Switch, also turns on signal lamps when you open a door
Automatic headlight turn-off delay can be adjusted (0-60 sec)
Lane change signaling allows you to quickly bump your turn signal for 3 automatic flashes
Smart third brake light control, flashes the first time you hit the brakes but not in traffic
Delayed accessory turn-off allows you to operate the power windows and listen to the radio after the ignition switch is turned off
Dimming Dome/Accent lights. These lights will also turn off automatically if you leave a door open, preventing battery discharge
Front Parking lights can be disabled when headlights are on (for early model vehicles)
Compatible with LED or standard incandescent lamps
Built-In Dash Lamp dimmer control
Solid state turn signals and hazard lights eliminates the traditional flasher
21 fuses
12 board-mounted relays
Heavy Duty Ignition, Headlight, and Dimmer switches are not required. Stock switches or a wide variety of quality switches can be used with this kit
This kit supports 4 beam headlight systems (2 low beam elements, 4 high beam elements)
Dedicated 30 amp Fuel Pump relay with negative (ground type) trigger compatible with EFI systems that control the fuel pump
Dedicated 40 amp relay with thermostatic control input, compatible with all known electric radiator fans on the market, up to 30 amps continuous running current and 80 amps startup (inrush) current
Heavy duty stud terminals for all heavy loads make solid, bullet-proof connections
Rated for 100 amps continuous total load, about twice what most street rods require
Most cars will not require any additional relays
Reverse battery protected
Compact 7-7/8" L x 6-1/8" W x 2-3/8" H size makes mounting easy
Mounting base and cover are satin black powder-coated aluminum

Application

Designed for:

Resto-Mods
Street Rods
Kit Cars
Muscle Cars

Specs

Included in the complete COACH-1-L-AL Kit:

100A Power Center with Relays and Solid State Control
Light Sensor cable assembly, calibrated for optimal day/night switching
Pre-assembled cables (2) for connecting to various switches and input signals
Over 700 feet of GXL wire, labeled and color coded. Cross-linked insulation is rated for 125 deg C (257 deg F), meets SAE J-1128 specification for automotive use.
Two 100A LMI fuses and fuse holders, one protects the Power Center, the other protects the Battery and Alternator
Large 18x24, Double-Sided, Laminated, Color Wiring Diagram
Headlamp connector kit for one pair of headlamps
Alternator kit compatible with 1-wire alternators
Instrument Panel Gauge connector kit
Terminals, Wire ties, and heatshrink tubing

Circuits available through the Power Center:

Fuel Pump (up to 20 amps continuous)
Ignition power to EFI/ECU/CD unit or HEI distributor
Gauges and Ignition Accessories
Heat / Air Conditioning
Power Point for phone charger or 12v accessories
Low Beam headlamps (55W max)
High Beam headlamps
Power Door Locks
Wipers
Power Windows, driver and passenger
Radio / Amplifier
Radiator Fan (up to 30 amps continuous)
Turn Signals
Brakes
Center High Mounted Stop Light (3rd Brake Light)
Hazard Flashers
Parking Lamps
Starter Solenoid
Horn
Clock / Dome lights
Dash lights
Battery Power to Switches
