#91002126
Chromoly Heim Joint Rod End, 5/8-18 RH Male, 1/2 Inch Hole
- This Chromoly rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The Heat treated 4130 chromoly steel body with a hard chrome plated heat treated steel ball will support heavy shock loads
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
$20.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Chromoly, Chrome
- This Chromoly rod end is a general purpose 2-piece heavy duty rod end that will withstand extreme abuse
- The Heat treated 4130 chromoly steel body with a hard chrome plated heat treated steel ball will support heavy shock loads
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for moderate to high horsepower applications
- Injection molded Kevlar/Teflon® liner provides self-lubrication as well as seals out dirt and debris
- 5/8"-18 RH male rolled threads ensure strength and precision
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91002126 Details
Speedway Motors 91002126 Details
Heat treated, 4130 chromoly steel body with a hard chrome plated, heat treated ball to support heavy shock loads. Injection molded Kevlar/Teflon® liner seals out dirt and debris.
- Kevlar/Teflon® race reduces slop & eliminates binding
- Provides smooth & precise movement of steering & suspension
- The ultimate in strength & durability
Applications: Steering & suspension for racing & high horsepower applications.
Charts

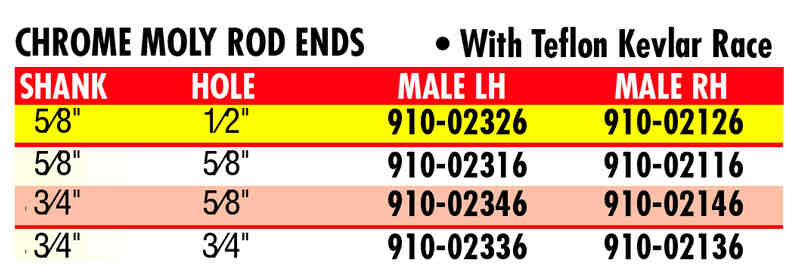

Chromoly Rod End Chart (GIF)
Guides & Documents
Speedway Motors 91002126 Specifications
Speedway Motors 91002126 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91002126 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.5" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Chrome |
| Color | Chrome |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Notes | BALL HOLE END .625 THICK |
| Sold in Quantity | Each |
Ratings & Reviews
5
6 Reviews
Our product is highly valued for its proven strength and quality. Customers have found the rod ends to be robust and perfect for reinforcing the front end of vehicles. Its nice quality is worth the cost, fitting perfectly for various needs. The product also excels as an inner steering tie rod; it's just right for building custom steering rods. An adjustable rear strut for vintage cars like a '69 Vette is another recommended use, indicating its versatility. Many customers are satisfied and would buy again, preferring our product over competitors' due to its superior qualities.
Ratings & Reviews
5
6 Reviews
Our product is highly valued for its proven strength and quality. Customers have found the rod ends to be robust and perfect for reinforcing the front end of vehicles. Its nice quality is worth the cost, fitting perfectly for various needs. The product also excels as an inner steering tie rod; it's just right for building custom steering rods. An adjustable rear strut for vintage cars like a '69 Vette is another recommended use, indicating its versatility. Many customers are satisfied and would buy again, preferring our product over competitors' due to its superior qualities.
5
6 reviews
5
6
4
0
3
0
2
0
1
0
Filter by Ratings
YES
5.0
5 years ago
ron
HENDERSON, KY
Verified
R-R ARM
Would Recommend
These are some strong pieces.
5.0
6 years ago
Gdub63
Friendswood Tx.
Verified
Used on my TBucket front end for strength. They are beefy rod ends.
Would Recommend
Put them in the rear torsion arms
5.0
6 years ago
Yellow 70
Salem In.
Verified
Nice quality piece worth the price
Would Recommend
definatley would buy again.
5.0
9 years ago
Ron
Taos,N.M.
Verified
Very good quality product. Fit perfect for my needs.
Would Recommend
Heim Joint for Inner tie rod ends works!
5.0
10 years ago
Calif Bob
Tucson
Verified
Building custom steering tie rods - used heim for inner steering tie rod ends - just right!
Would Recommend
Buster Heim in
5.0
13 years ago
Buravik
houston
Verified
Used as adjustable rear strut on 69 vette
Would Recommend
Showing 6 of 6 reviews
