#91002336

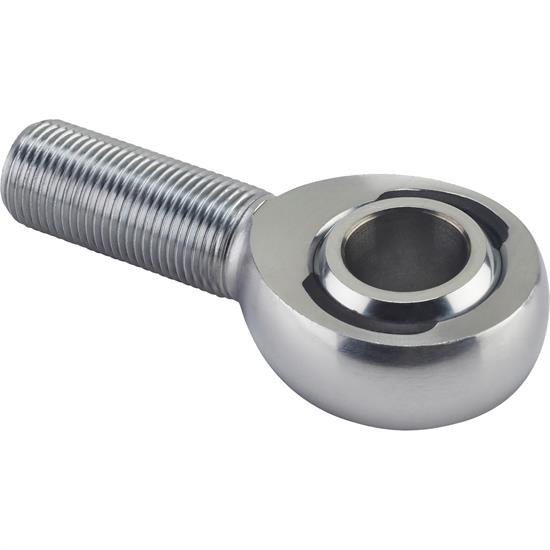

Chromoly Heim Joint Rod End, 3/4-16 LH Male
- Heat treated, 4130 chromoly steel body to ensure durability and maximum support
- Injection molded Kevlar/Teflon liner seals out dirt and debris
- Provides smooth & precise movement of steering & suspension
$18.49
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Chromoly, Chrome
- Heat treated, 4130 chromoly steel body to ensure durability and maximum support
- Injection molded Kevlar/Teflon liner seals out dirt and debris
- Provides smooth & precise movement of steering & suspension
- Reduces slop & eliminates binding
- Hole diameter 0.75"
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.75" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91002336 Details
Speedway Motors 91002336 Details
Heat treated, 4130 chromoly steel body with hard chrome, heat treated ball to support heavy shock loads. Injection molded Kevlar/Teflon® liner seals out dirt and debris.
- Kevlar/Teflon® race reduces slop & eliminates binding
- Provides smooth & precise movement of steering & suspension
- The ultimate in strength & durability
Applications: Steering & suspension for racing & high horsepower applications.
Charts

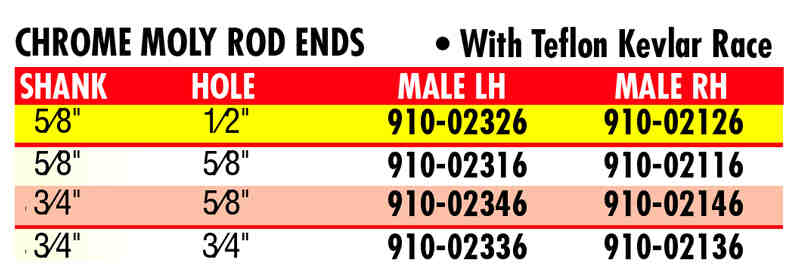

Chromoly Rod End Chart (GIF)
Guides & Documents
Speedway Motors 91002336 Specifications
Speedway Motors 91002336 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91002336 |
| Brand | Speedway Motors |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.75" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Chrome |
| Color | Chrome |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
5
2 Reviews
Customers praised the product for being true to its advertised qualities with superior material quality and confirmed practical use. They acknowledged the product's superior performance in comparison to competitors, and its user-friendly features. Many intend to reorder owing to the product's high reliability and functionality.
Ratings & Reviews
5
2 Reviews
Customers praised the product for being true to its advertised qualities with superior material quality and confirmed practical use. They acknowledged the product's superior performance in comparison to competitors, and its user-friendly features. Many intend to reorder owing to the product's high reliability and functionality.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
Good product, as advertised, fast shipping
5.0
8 years ago
U-Boat
Rochester, NY
Verified
Good product, as advertised, fast shipping
I will be buying these again
5.0
9 years ago
thomass
Bismarck nd
Verified
Building my own steering
Would Recommend
Showing 2 of 2 reviews
Questions & Answers
Questions & Answers
2 Questions • 2 Answers
How long is the joint from the center hole to end of threads ?
by Steve
• 10 years ago
1 answer
View Answer
on the model 910-02336 heim joint was is the maximum misalignment angle
by Kenneth
• 12 years ago
1 answer
View Answer
2 of 2 questions shown
